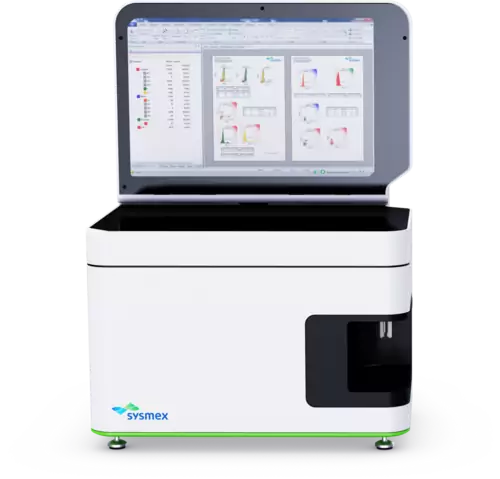

CyFlow Cube 8 High performance flow cytometry
Configurations with up 8 optical parameters (up to 6 colours)
Choice of lasers with 375, 407, 488, 532, 561, 594, 638, 640, 785 nm
Particle size:0.1 – 100 µm
Fluorescence sensitivity:≤ 100 MESF (FITC) | ≤ 50 MESF (PE)

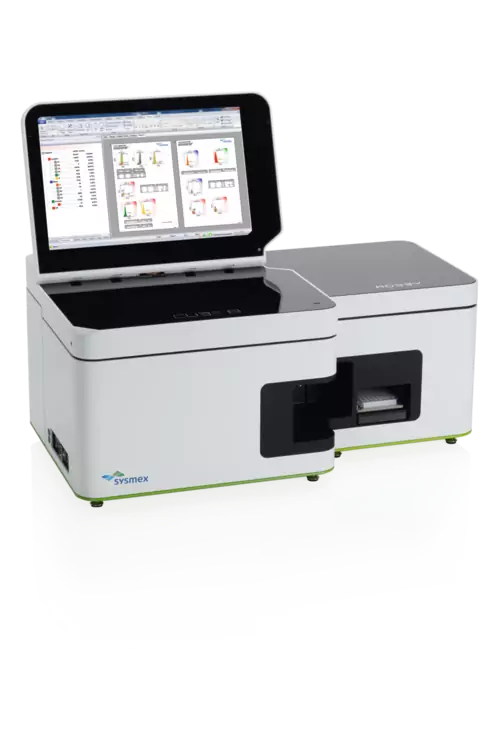

Optional CyFlow® Robby 8 Autoloading Station
High-performance flow cytometry
The CyFlow® Cube 8 is a compact flow cytometer for the analysis of single cells and microscopic particles with a high grade of integration. The CyFlow® Cube 8 offers the unique combination of a truly stand-alone system of a small footprint with a modular configuration concept with up to 6 colours. The easy-to-use CyFlow™ software provides control of the instrument, data acquisition, analysis and storage. The possibility of customised instrument settings facilitates switching between different applications. CyFlow® Cube 8 offers True Volumetric Absolute Counting (TVAC), which allows the display of particle concentrations for any subsets of cells without the need for reference beads, even if defined by a gate at a later time after the acquisition.
* Optional CyFlow® Robby 8 Autoloading Station for well plates and tubes
* Optional CyFlow® Sorter for closed, non-destructive cell and particle sorting with high purity
*Technical Specifications :
-Light sources : Up to four light sources (three lasers + high-power UV LED) Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm / Red laser: 25mW at 638nm, 40mW at 640nm / Violet laser: 100mW at 405nm / UV laser: 60mW at 375nm /Green laser: 30mW at 532nm, 100mW at 532nm / Yellow laser: 100mW at 561nm / Orange laser: 50mW at 594nm / High-power UV LED: 365nm
-Optics : Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL6 / Exchangeable optical filters
-Flow system : Quartz flow cuvette for laminar sample transport and hydrodynamic focussing / True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement / Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
-Software : Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display / Easy set-up of experimental templates (configuration files) / Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
-Dimensions : Stand-alone instrument: W 500mm x H 370mm x D 470mm
With Autoloading Station: W 840mm
*CyFlow Cube 8 Sorter :
-General facts : Configurations with up to five optical parameters (up to three colours). Sterile sorting by closed fluidic system. Optional CyFlow Robby 8 Autoloading Station for well plates and tubes
-Light sources : Up to two simultaneous light sources (lasers)> Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm / Red laser: 25mW at 638nm, 40mW at 640nm / Violet laser: 100mW at 405nm
UV laser: 60mW at 375nm / Green laser: 30mW at 532nm, 100mW at 532nm / Yellow laser: 100mW at 561nm / Orange laser: 50mW at 594nm
-Optics : Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL3 / Exchangeable optical filters
-Flow system : Quartz flow cuvette for laminar sample transport and sorting process / Completely closed and integrated fluidic system / True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement / Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
-Software : Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display / Easy set-up of experimental templates (configuration files) / Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
-Dimensions : W 500mm x H 370mm x D 470mm (without sorting module)
