CyFlow Cube 6 Compact and economic flow cytometer
Configurations with up 6 optical parameters (up to 4 colours)
488 nm blue laser and 638 nm red laser
Particle size:0.1 – 100 µm
Fluorescence sensitivity:≤ 100 MESF (FITC) | ≤ 50 MESF (PE)
Optional CyFlow Robby 6 Autoloading Station

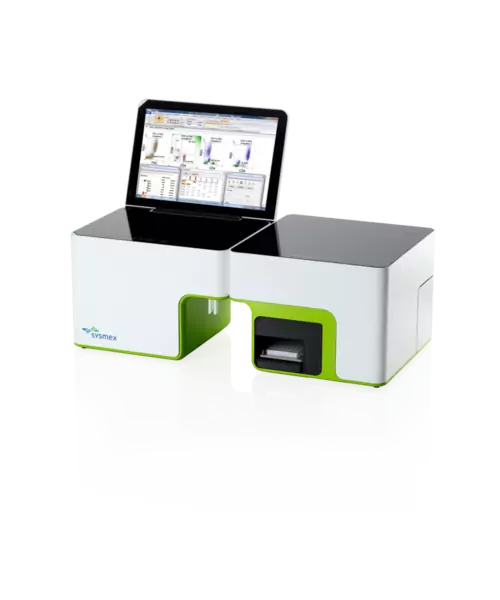

The CyFlow Cube 6 is a compact benchtop flow cytometer for the analysis of individual cells and microscopic particles. Different CyFlow Cube 6 configurations to select from offer optimal solutions for dedicated applications. The easy-to-use CyFlow software provides control of the instrument, data acquisition, analysis and storage. CyFlow Cube 6 offers True Volumetric Absolute Counting (TVAC), which allows the display of particle concentrations for any subsets of cells without the need for reference beads, even if defined by a gate at a later time after the acquisition.
*Technical Specifications :
-Light sources Up to two simultaneous light sources (lasers) Blue laser: 50mW at 488nm
Red laser:25mW at 638nm or 40mW at 640nm
Optics:
Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL4
Exchangeable optical filters
Flow system:
Quartz flow cuvette for laminar sample transport and hydrodynamic focussing
True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement
Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
-Software : Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display / Easy set-up of experimental templates (configuration files) / Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
-Dimensions : Stand-alone instrument: W 385mm x H 290mm x D 280mm / With Autoloading Station: W 745mm
