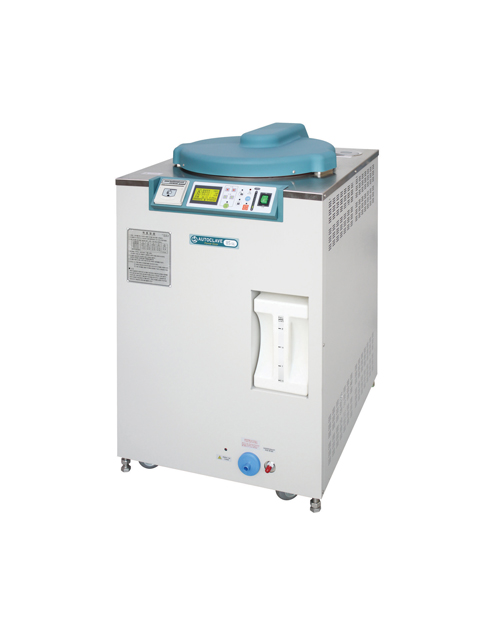

This sterilizer is adopted a unique vertical type cylindrical chamber equipped with a motor driven automatic door, therefore the chamber loading, unloading and sterilizer operation are far more convenient and safe compare to the manual door. The vertical type chamber allows to use a wider chamber than another small sterilizers in the confined space, and is the most effective for sterilizing a liquid load, more useful for liquid contained in a big glass bottle at the clinical laboratories and research institutes. The operator could check the cycle progressing conveniently on the LCD monitor because the state of sterilizer operation is displayed digitally in real time on it.

5 kinds of basic cycle program for sterilizing in accordance with items to be sterilized and packaging type, therefore the operator could select a proper cycle program and perform sterilization conveniently. Especially the liquid contained in the glass bottles could be sterilized safely and efficiently, and users can change the parameters of basic cycle programs at user's pleasure for handling a particular sterilizing condition. If an error has occurred during operating the sterilizer, the error code is displayed on the LCD monitor accompanying an audible alarm and the cycle in progress is aborted at the same time automatically for the safety of workplace by the self-diagnosis program.

The cycle performance records executed at least for 11 years are stored in the control unit in order. The user can automatically search the results of sterilization cycle performed previously by input the date performed cycle or the cycle count number and prints out the result record by the built-in panel printer. (optional specification)

The user can download or backup those data in the USB memory and monitor the operation of sterilizer on the external PC by connecting the USB or LAN cable to the built-in communication ports. Moreover the communication program including an ubiquitous function provided allows user to manage the operation of plural(maximum 15 sets) sterilizers at once. (optional specification

The built-in exterior small steam generator which is newly-developed by our advanced technology can vaporize feed water supplied from the reservoir instantly and the generated steam is injected into the chamber as a sterilizing media, therefore the chamber is less contaminated than the internal steam generating type and the usable loading space is widened because there is no heater assembly in the chamber.

The used water after completion of a sterilizing cycle is collected in the collection container designed separately with the reservoir, therefore the saturated steam generated by a clean water always can be supplied to perform every sterilizing cycle.

This sterilizer has the safety system for the safety of workplace designed that there exists more pressure compare to the set level in the chamber by the pressure switch. The safety valve operates and releases chamber pressure automatically when an overpressure more than the limited value has been formed in the chamber for a certain reason.

The built-in panel printer prints out the cycle performance record for securing the traceability afterwards.

(The panel printer is provided as an optional item)

W600 x D705 x H992 mm

Vertical type, IDø400 x L741 mm, Vol: 85ℓ, Material: STS 316L

Max. Working Pressure : 2.40bar, Min. Working Pressure : -1.00bar

Max. Working Temperature : 138.0℃, Test Pressure : 5.13bar

ID∅355 x L215 mm, 1ea, ID∅355 x L415 mm, 1ea

W200 x D130 x H196 mm, Vol: 4.0ℓ (full water level)

121.0℃ ~ 135.0℃

Direct Thermal Printing, Printing paper roll; W58x∅40 mm, L=13 m

AC 220V, 50/60Hz

3,300 W

140 kg

ㆍ Altitudes up to 2,000 meters.

ㆍ Temperature range of +5℃ to +40℃.

ㆍ Maximum relative humidity 80% for temperature up to 31℃ decreasing linearly to 50% relative humidity at 40℃

ㆍ Main supply voltage fluctuation of ±10% of nominal.

ㆍ Installation Category (Overvoltage Category) Ⅱ, Pollution Degree 2.
