Specifications :
- Model :
BPR-700
- Exterior (Cabinet) :
W766 x D962 x H1,945 ㎜
Material; Galvanized steel plate, Powder coating
- Interior (Chamber) :'
W620 x D780 x H1,448 ㎜, Vol: 700 ℓ
Material:Galvanized steel plate, Powder coating
- Door :
Double anti-fog glass
- Drawer :
W551 x D598 x H97 ㎜ Q'ty:7ea,
Material:Stainless steel plate, (Partition; optional)
- Compressing Unit :
1/3 HP hermetically sealed compressor x 1, Air-cooling type
- Cooling Unit :
Finned tube coil type evaporator with blower,
Automatic off-cycle defrost system
- Refrigerant :
R-134a, Charge; 300 g
- Operating Temperature :
2.0℃ ~ 6.0℃
- Power Source :
AC 230V, 50/60㎐
- Power Consumption :
650 W
- Temp./Power Monitor :
Model:HTM-6974D
- Temperature Recorder :
Standard:Panel Printer, Direct Thermal Printing type, Printing Paper Roll; W58x∅40㎜, L=13m
Optional:Recorder, Recording range: -10℃~+40℃, 7-day Revolution, ∅125㎜ Diagram, 1.5V(LR6) Battery driven, Fiber tip pen use.
- Emergency Call System (optional) :
SOS CALL System
- Net Weight :
218 ㎏
- Environment Conditions :
ㆍAltitudes up to 2,000 meters.
ㆍTemperature range of +15℃ to +30℃.
ㆍRelative humidity of 60~70% RH.
ㆍMain supply voltage fluctuation of ±10% of nominal.
ㆍInstallation Category (Overvoltage Category) Ⅱ, Pollution Degree 2.
ㆍClimatic Class:7 (ISO 23953-2).
Features :

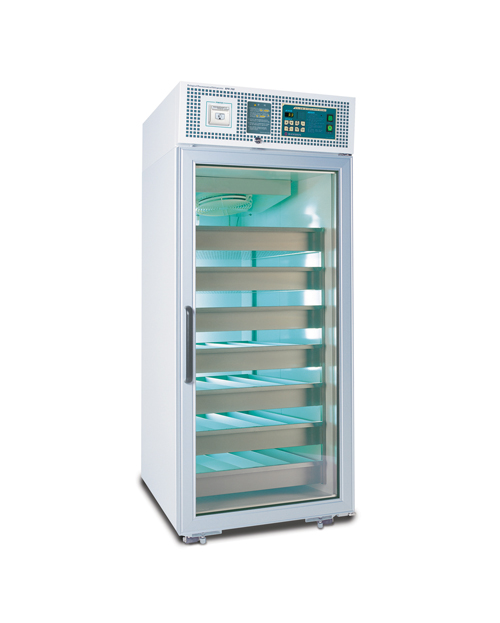

- 2℃~6℃, 700 ℓ, Blood & Pharmaceutical Refrigerator
1. Refrigerator for long-term preservation of Blood and Medicine.
This refrigerator forms an ideal condition, which enable long-term, effective storage of blood. A refrigerator for such purpose requires uniform distribution of the temperature and precise temperature control to prevent the stored materials from deteriorating or being frozen. Therefore this refrigerator is one of the fundamental equipment in blood center, medical institutions and research institutions. This blood refrigerator is manufactured in accordance with the recommended standard temperature requirements established by the American Association of Blood Bank(AABB) and designed to maintain the chamber temperature of 2℃ to 6℃. The automatic off-cycle defrost system and the condensate evaporator are of standard type.
2. Temperature / Power Monitor
The Temperature/Power Monitor displays the actual temperature of refrigerating chamber in real time during operating, if the actual temperature deviates from the set operating temperature range or the electric power has been failed, it shows the actual temperature at that time and high (HI) or low (LO), power failure (AC) mark alternately on the digital LED display accompanying an audible warning.
3. Panel Printer
The built-in panel printer prints out the data of freezing chamber temperature at an interval of the set time for which the user can check the storage quality of blood or medicine and keep them for securing traceability in future. The temperature recorder can be installed as an optional specification for recording temperature by graph on the recording diagram for 7 days.
