Efficient and Compact Quality
The Vantage Elan 1.5T MR system provides the high quality imaging that is the Canon Medical Systems standard in a compact system that saves space and minimizes system operating costs with Eco mode. This efficient functionality combined with tools to improve patient experience makes the Elan 1.5T ideally suited to the needs of both patients and doctors.
Canon Software
Clinical Gallery
Diffusion Tensor Imaging (DTI) and Diffusion Tensor Tractography (DTT) are part of the Vantage Elan mNeuro package. DTT analysis (as seen in the picture) is easily post-processed using the Elan Canon Software interface.
Features:
Compact Footprint:The Vantage Elan magnet and couch fit in a footprint of 29 square meters*
Non-Contrast Imaging:MR system with a complete suite of contrast-free MRA techniques
-Easy Installation: Six days from magnet placement to scanning
-Cost Efficient: Budget friendly and low cost of ownership
-Eco-Friendly: Reduced energy consumption
-Excellent homogeneity:
Advanced magnet design
Advanced shielded gradient coil
Less than 2ppm in 50 cm DSV
-Zero helium boil-off
Reliability in a small footprint.

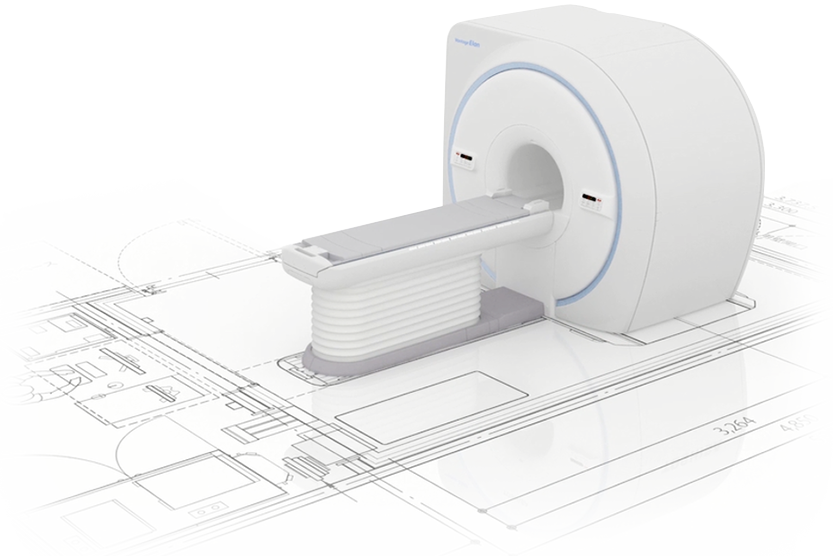

Fast Installation and Small Footprint
Fast and easy installation:
-6 days to scanning after equipment delivery
-Improved and reduced cabling
-Partially Pre-assembled prior to shipment
-Redesigned installation tools
Small footprint:
-Minimum scan room size—29m2*
-Compact cabinet design
-Equipment room can be eliminated
-Modular solution available
-Digitization on gantry
24/7 Imaging at the same cost of a mobile provider.
Modular Solution
Solution for facilities with budget, space and technology constraints.
-Vantage Elan MR system installed into a Modular Building at your location
-Modular Building can be attached and matched to hospital existing facade for inpatient operations
-FMV Operational Lease for 60 months for 24/7 operation
Vantage Elan 1.5T
Image Quality
The Vantage Elan offers high image quality despite its compact size and competitive pricing.
-Advanced Magnet System: Canon Medical Systems' advanced magnet system, which generates a highly homogeneous static magnetic field and ensures a wide scanning range and stable image quality
-Advanced Shielded Gradient Coil: The performance of the gradient coil significantly affects image quality. The advanced shielded gradient coil replaces a traditional short coil and ensures stable image quality with all sequences
-RF technology: Canon Medical Systems' unique technology receives MR signals from the human body, immediately amplifying and then transmitting them while suppressing noise
Workflow post processing applications are as easy as 1, 2, 3…
Canon Software
Designed by the Technologist for Technologists
Canon Software is an intuitive user interface built for all levels of users. It allows an efficient workflow and provides advanced post processing software with ease of use in mind on the main console. Eliminating the need to purchase multiple 3rd party software for your advanced imaging needs.

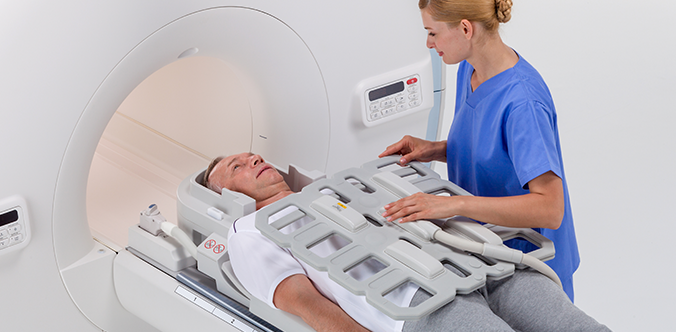

Integrated Coil Workflow Technology
Integrated coils are uniquely designed for improved workflow and patient comfort.
Canon Medical Systems MR System's integrated coils* making it easy to handle multiple studies by allowing you to position the patient and utilize the coils you need in one easy step.

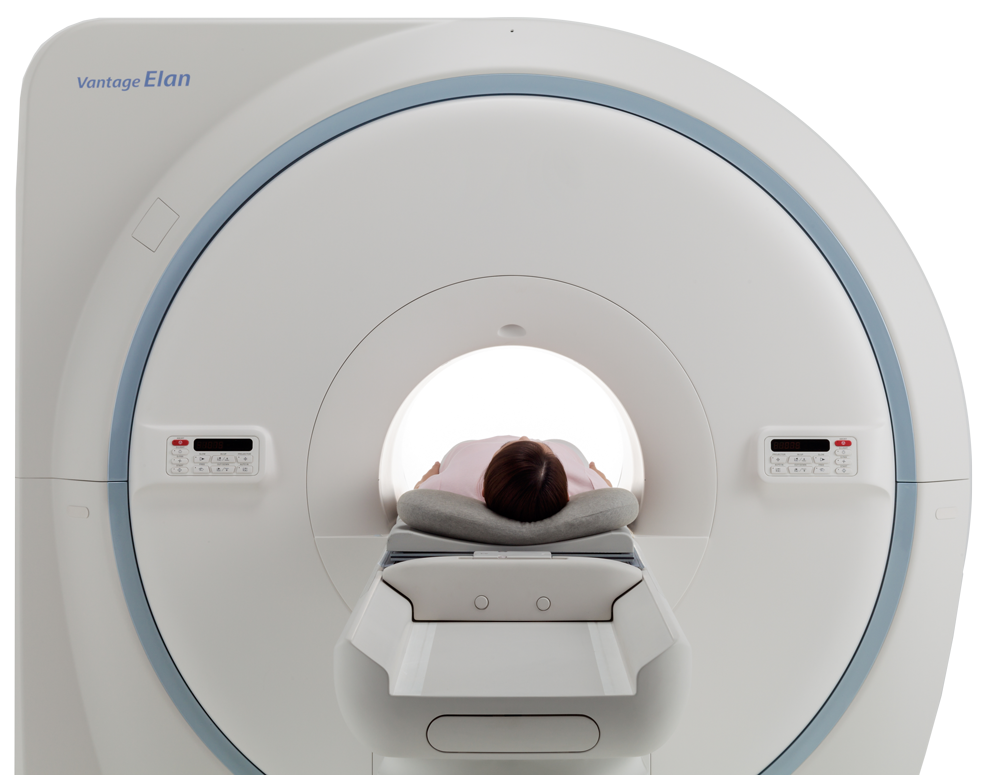

Quality care for your patients
Comfort is important, and with Pianissimo noise-reduction technology, scans are quieter and more efficient. Non-contrast imaging reduces the need for injections during the exam. The shorter bore of Vantage Elan helps to reduce claustrophobia in patients, while the 63 cm size accommodates a wide variety of patients.
Benefits:
-Maximum Efficiency: Canon software maximizes operator efficiency with streamlined workflow
-Quieter Scans: Enhanced comfort and patient satisfaction from Pianissimo™ noise-reduction technology
-Quality Imaging: Detailed diagnostic imaging
-Accommodate More: 63 cm wide accommodates a variety of patient sizes
-Improved Patient Line of Sight: Short bore decreases patient claustrophobia
Allowing flexible scanning options and increased patient comfort.

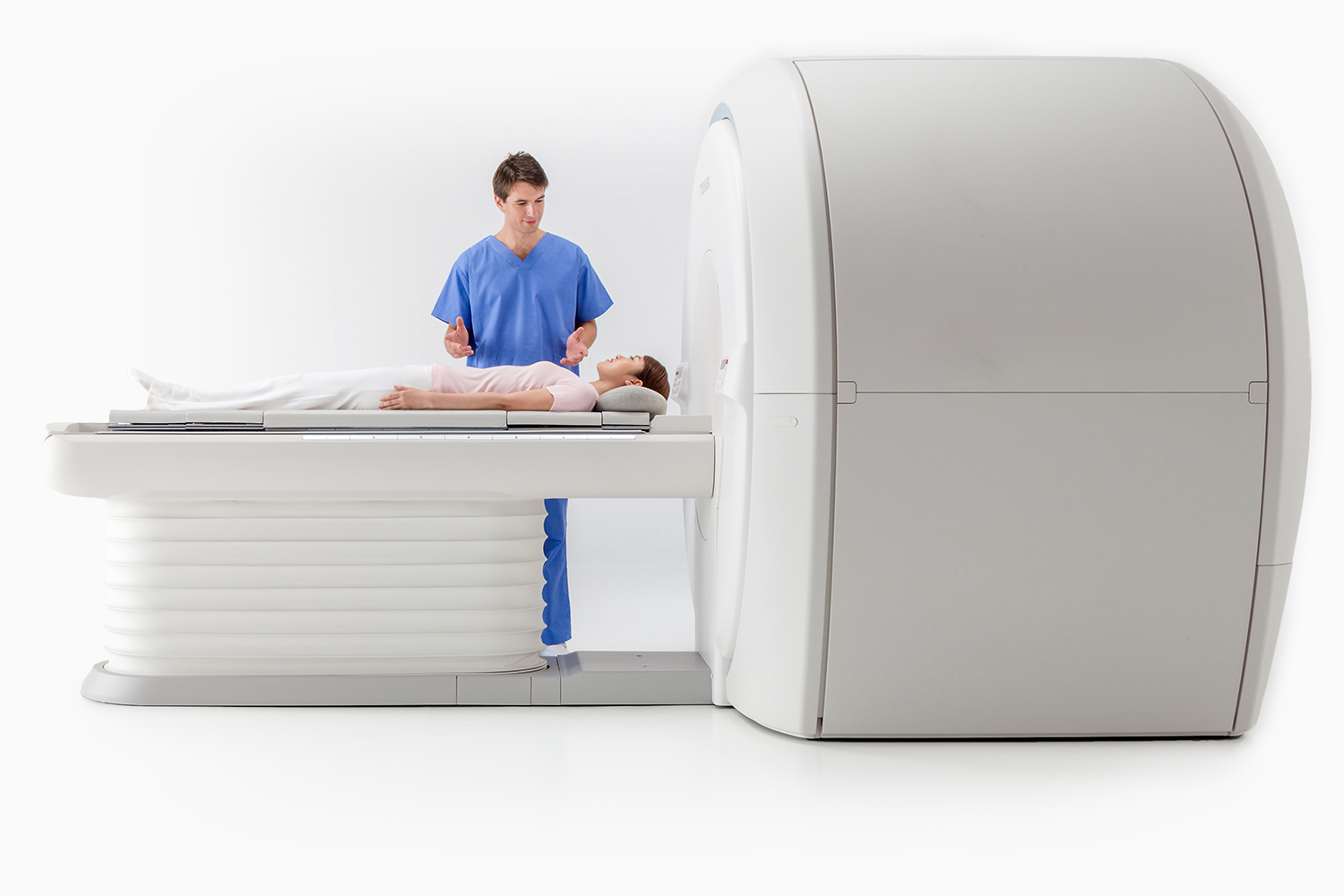

Feet First Imaging
A sliding table coupled with an integrated spine coil provides maximum flexibility for operators and feet first options for patients.
Pianissimo
Noise can make an MR exam uncomfortable for patients, Pianissimo allows even the most sensitive patient to have a pleasant experience.
Reducing noise levels in 2 unique ways:
-Hardware designed to eliminate noise at the source for every sequence
-Additional special sequences further reduce gradient noise
Hardware vs. software
Quiet MR for every sequence, scan and patient. Canon Medical Systems hardware is designed to eliminate noise at the source.
-Noise reduction is achieved on all sequences
-Additional special sequences further reduce gradient noise
Competitors reduce noise by use of software only.
-Limited to specialized pulse sequences
-Software solutions modify the pulse sequences themselves which intentionally diminish the gradient performance
Contrast in your images. Not in your patients.
Non-Contrast Imaging
An increasing awareness of the potential risks associated with gadolinium-based contrast agents has revealed the need for alternative, contrast-free MRA techniques. We provide clinicians four generations of unique, non-contrast MRA sequences that minimize risk to patients while producing exceptional images. These images are often better than those acquired with conventional contrast enhanced techniques.
