Sustainable Solutions for Vantage Fortian
This extremely eco-friendly system reduces construction and installations requirements, while also being one of the most energy efficient systems in its class.
Economical design to meet your needs:
-Reduction in power consumption with ECO Mode
-One of the smallest MR systems with a compact footprint of 29.8 m2
-Ceiling Camera solution confirms coil set-up and assists patient positioning.
-Canon’s unique Pianissimo Σ (sigma) reduces noise in and around the MRI environment for every sequence, improving the patient experience.
-Precise IQ Engine (PIQE) accelerate scanning by reducing the acquisition matrix, while maintaining clinical matrix size and image quality.
-Contrast reduction for environment benefit Non-contrast imaging.
Auto Scan Assist standardizes your workflow:
-Reduction of burden on the operator
-Reduction of operation steps
-Reduction of operation time
Our Sustainable Solutions:
-Energy saving solution

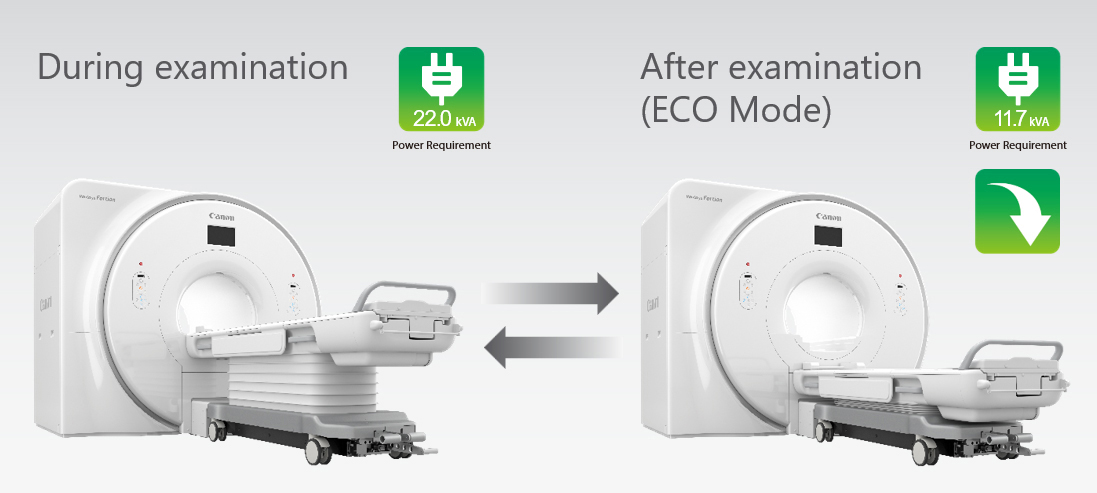

Reduction in power consumption with ECO Mode
ECO Mode reduces power consumption to minimize system operating costs. Among other methods, the ECO Mode can be automatically activated simply by lowering the couch to the floor.
-The system can recover from ECO Mode within a few seconds to be ready for scanning, quick enough to cope with even emergency patients and unscheduled examinations.
-Resource saving solution

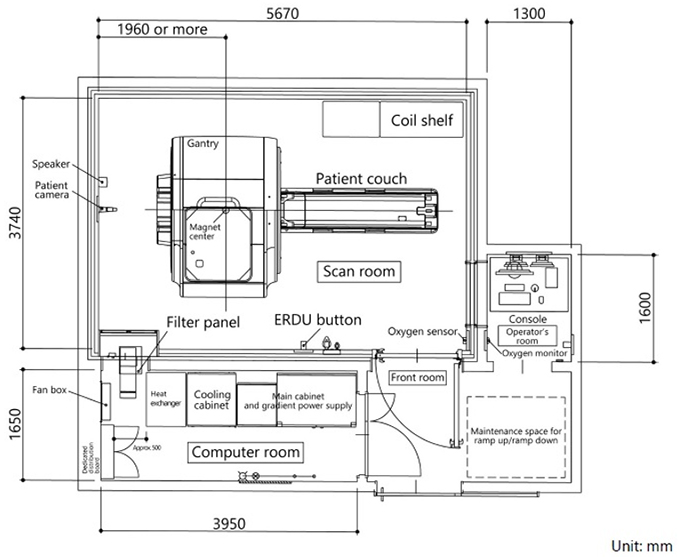

One of the smallest MR systems with a compact footprint* of 29.8 m2
Minimize investment in valuable floor space with a 29.8 m2 footprint that excels in the 1.5T wide bore market.*
In addition to the reduced system size, the installation method, cooling method, and control cabinet have been innovatively redesigned.
-Weight :8020 kg (varies depending on configuration)
-Minimize footprint :29.8 m2（excels in the 1.5T wide bore market.*）
-Short magnet and 71 cm wide bore offers an open MRI scanning environment
The wide bore patient aperture and in-bore immersive virtual experience enhance patient comfort.
-Gloss Coating
As procedure numbers increase so does the time required for cleaning. New gloss coating allows for easier and faster cleaning which saves time between procedures, allowing you to quickly proceed to the next patient.
-Zero helium boil-off
Eliminates the necessity of periodic helium refilling and as a result increases the system uptime, enhances environmental performance, and reduces helium costs.
Workflow Solutions:
With advanced productivity the total amount of time and energy can be reduced for every procedure. Canon automated workflow solutions simplify the flow of MR procedures from beginning to end, and assures image consistency between patients and operators.
Contrast reduction for environment benefit:
Contrast agents are excreted from the body via the urine, they also enter the aquatic environment through our sewage systems. Reducing resource consumption is crucial to support the transition towards more environmentally sustainable healthcare.

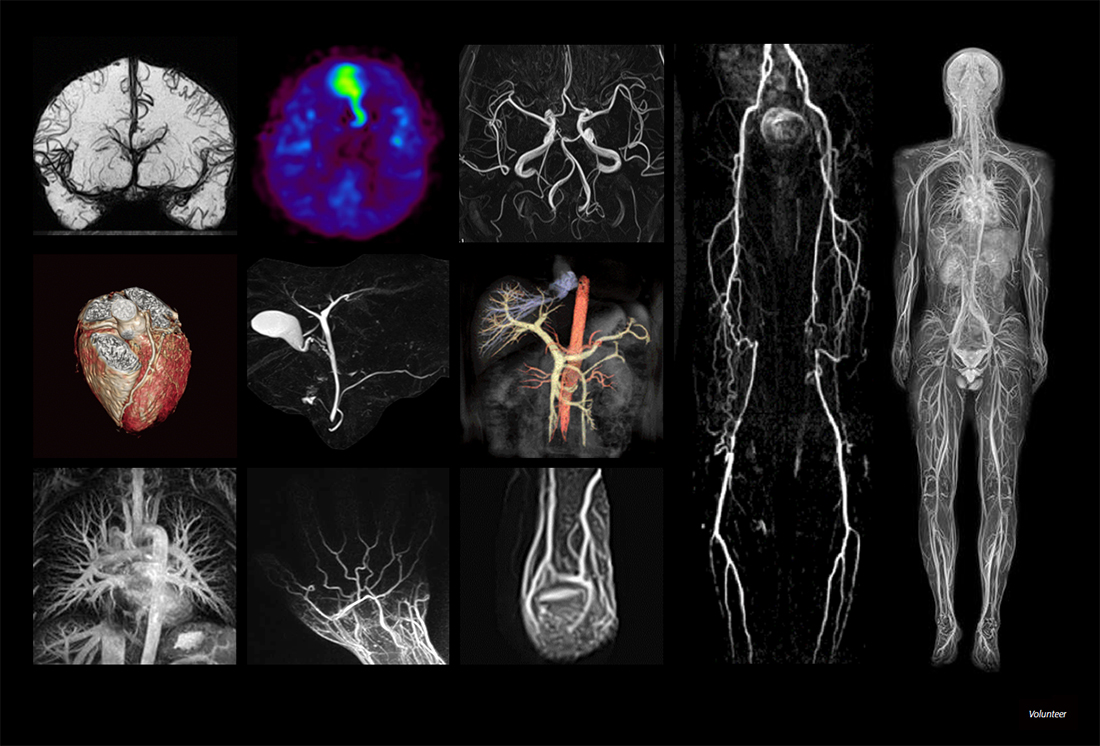

Non-contrast imaging:
Vascular and blood flow assessment in all areas is performed without the use of contrast media.
Recycling / Reducing packing:
Recyclable materials of the product and Circular Economy
Canon Medical Systems develops products that promote a circular economy.
By designing and manufacturing products using recyclable parts, Canon Medical actively collects and reuses parts that can be used in new products after the products have been used and discarded. In addition, for equipment collected for reuse of parts, we follow Canon Medical Systems’ recycling operation rules for residual materials after parts are collected.
In this way, we aim to reduce the environmental impact and increase the effectiveness of recycling.
Recycling :
Parts recycling rate at time of disposal : 83.5%
Reducing packing materials and promoting modal shift
We are focused on reducing the amount of packing materials used for transporting products by simplifying the packing process and decreasing the number of units for each system.
We have been consistently improving our packaging efficiency while ensuring the safe delivery of products to our customers after shipment and local transportation. Introducing a new concept for equipment transportation, we have started using dedicated shipping containers, eco-friendly packaging material (biodegradable fibers, etc.) and only FSC certified wood.
For product transportation, we are striving to reduce CO₂ emissions through modal shift from truck and air transportation to rail and ship transportation.
