W730 x D780 x H1,333 mm

W302 x D450 x H302 mm, Vol; 41ℓ, Material: STS 316L

Steel Wire-net Basket; W270 x D440 x H248 mm, 1ea

100% Ethylene Oxide(EO), Gas Cartridge type (Gas Weight; 100g)

AC 220V, 1 ph, 50/60Hz

2,000 W

Direct Thermal Printing type, Paper Roll; W58x∅40㎜ (length; 13m)

134 kg

ㆍ Installation Category (Overvoltage Category) : Ⅱ, Pollution Degree; 2

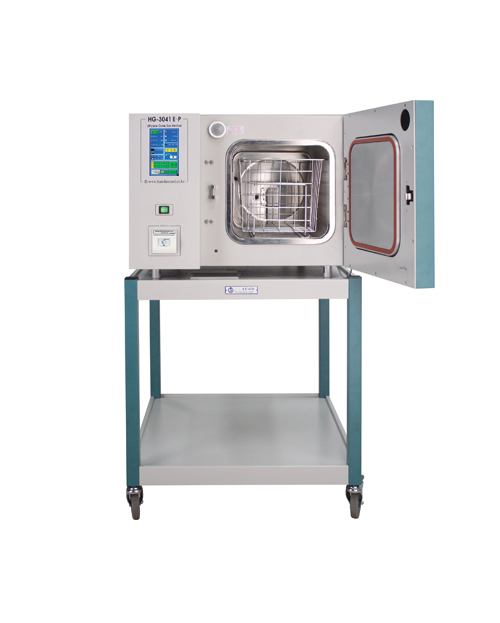

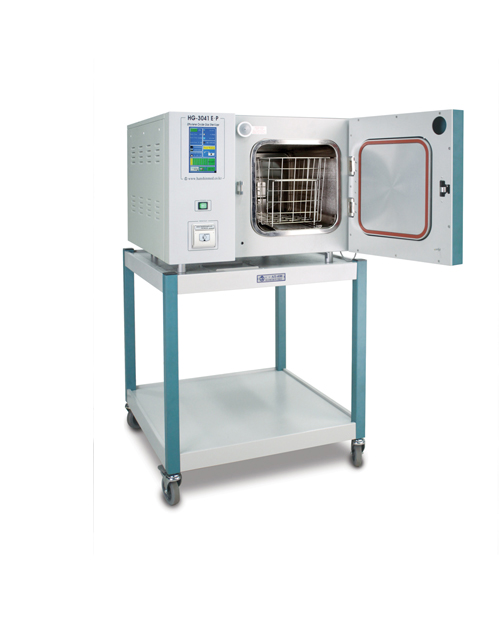

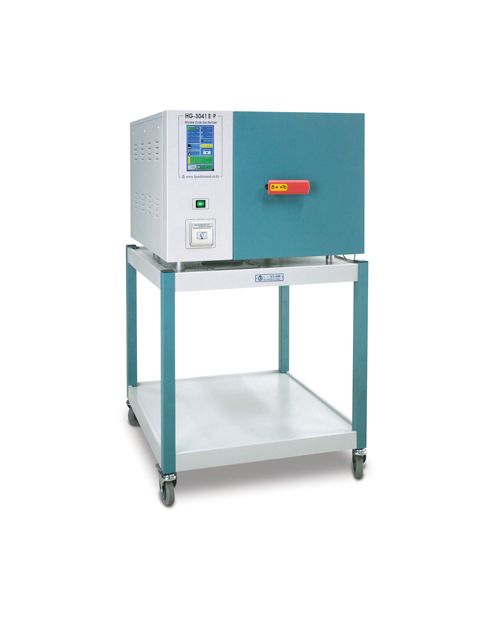

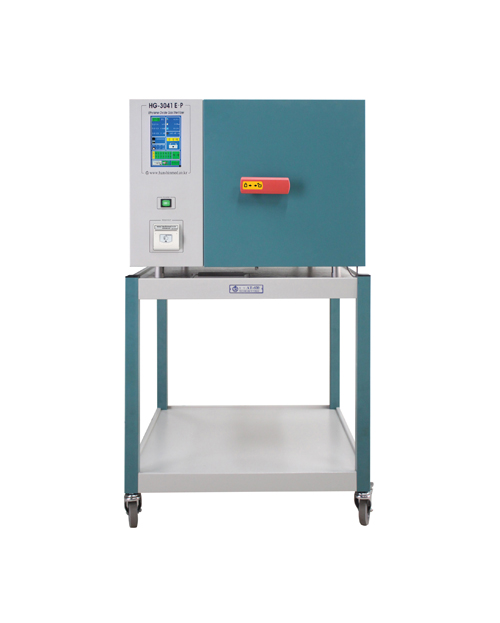

This sterilizer uses the "100% ethylene oxide(EO) gas" as sterilant and can sterilize the small medical devices, instruments and supplies effectively by convenient way of only inserting a small disposable gas cartridge on the holder recessed in the chamber wall. The sterilization and aeration process are all completed in the chamber under negative pressure, therefore leakage of EO gas in the working area can be fully prevented.

4 kinds of sterilization cycle program and the vacuum leak test cycle program are installed in the sterilizer and the operator can select a proper cycle program according to the type of materials or items to be sterilized and sterilize them conveniently. If an error has occurred during operating the sterilizer, the error code is displayed on the touch screen accompanying an audible alarm and the cycle in progress is aborted at the same time automatically for the safety of workplace by the self-diagnosis program.

Touch screen type color LCD allows user to operate the sterilizer more easily and quickly by touching the function buttons(pads) on the screen, and also to check the state of cycle progressing such as the actual temperature, pressure and humidity in the chamber etc. conveniently in real time on the screen.

At least 11 years of cycle execution records are automatically stored on the Flash memory of the control unit. The user can search and check the results of a cycle performed in the past by input the date performed or cycle count number on the touch screen, and print out the record by the built-in panel printer for using as an evidence data of sterilization quality. (optional specification)

The built-in panel printer prints out the cycle performance record for analyzing the results of sterilization and keeping as a quality evidence and traceability.
