The VedVision™ Cholangioscope Direct Visualisation System enables direct visualisation of the bile and pancreatic ducts with advanced resolution and 2 mm accessory channel. VedVision™ provides greater flexibility for enhanced diagnosis and therapeutic intervention.
- Enhanced visualisation
- Automatic image balance
- 2.0 mm working channel
- Separate guidewire channel
- Integrated image capture and record functions
Features :
- Access and delivery catheter
- Four-way control system (up/down/left/right)
- Easy-to-access image capture button
- Angle adjustment lock
- Independent 1.2 mm guidewire/irrigation channel for use with 0.63 mm (0.025 inch) hydrophilic guidewire
- 2.0 mm working channel for 1.8 mm instruments or accessories
- High quality, 160,00 pixel CMOS image sensor
- Bright LED illumination with automatic or manual adjustment
- 3.7 mm diameter scope head

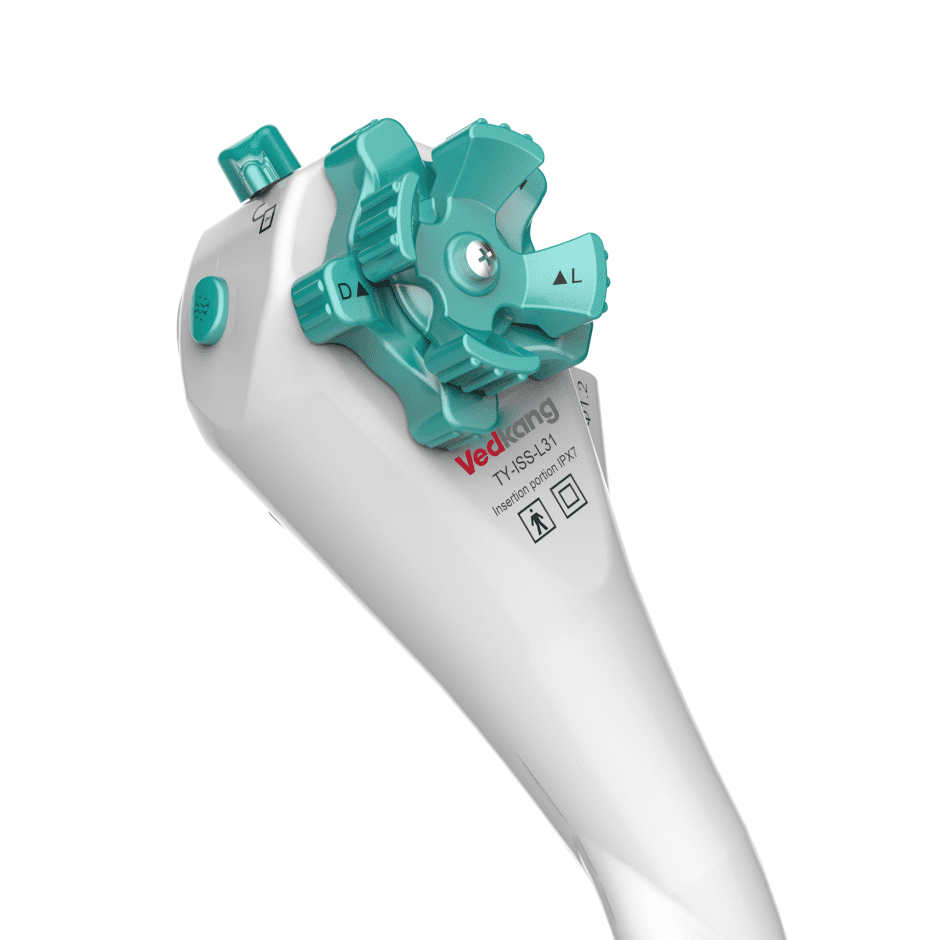

Access and Delivery Catheter :
Familiar catheter design with four way control system (up/ down/left/right), 2.0 mm working channel, irrigation channel, separate guidewire channel, lock and image capture button.

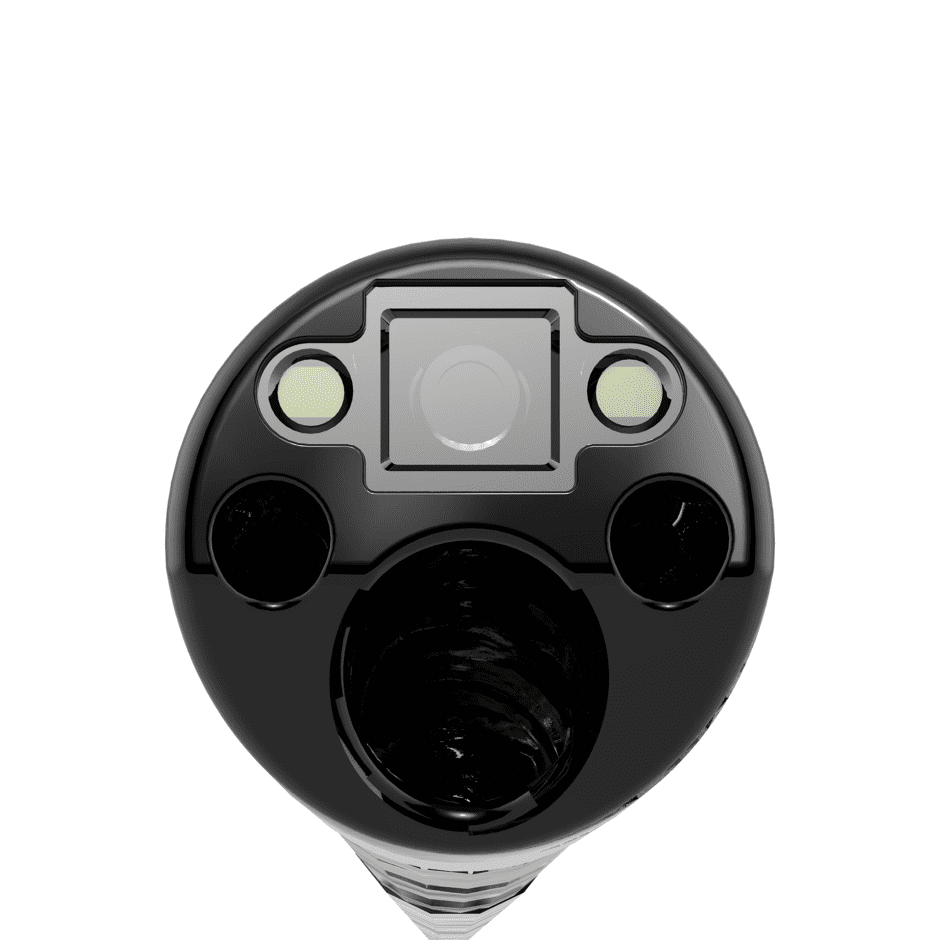

VedVision™ 3.7 mm diameter scope head
Superior Image Quality :

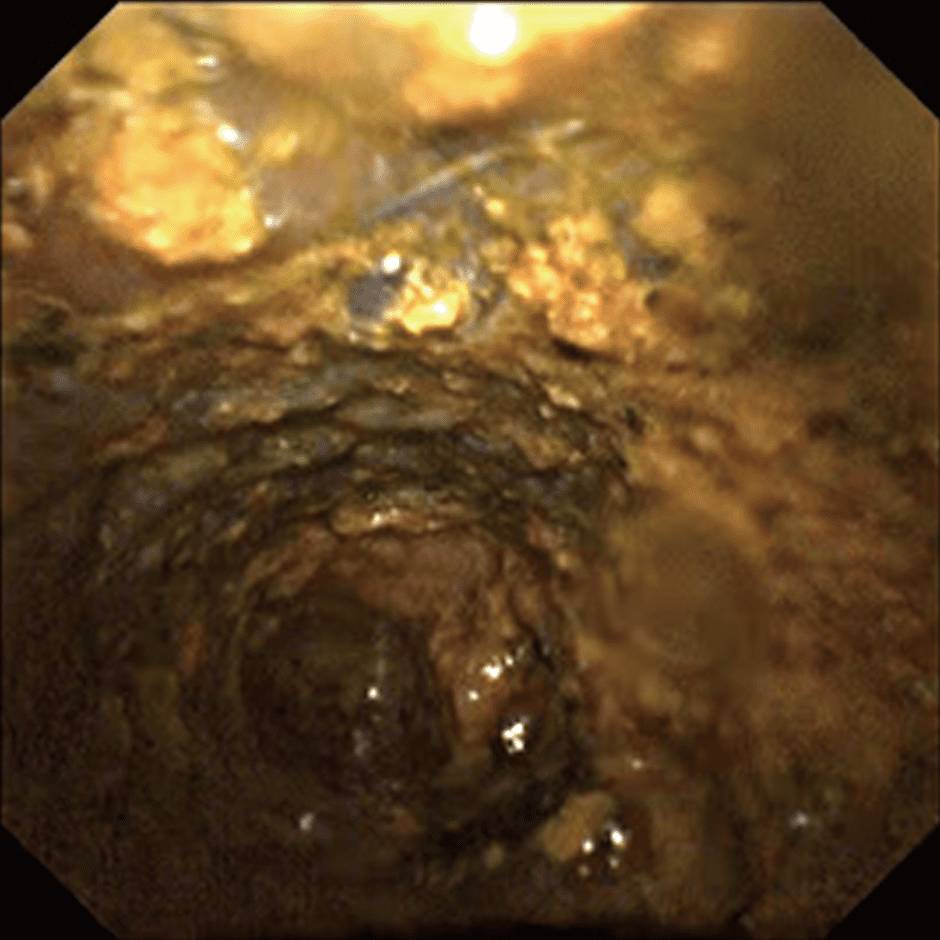

160,000 pixels CMOS sensor, automatic white balance, automatic image brightness adjustment provides an enhanced and clear view, from a thin 3.7 mm scope.

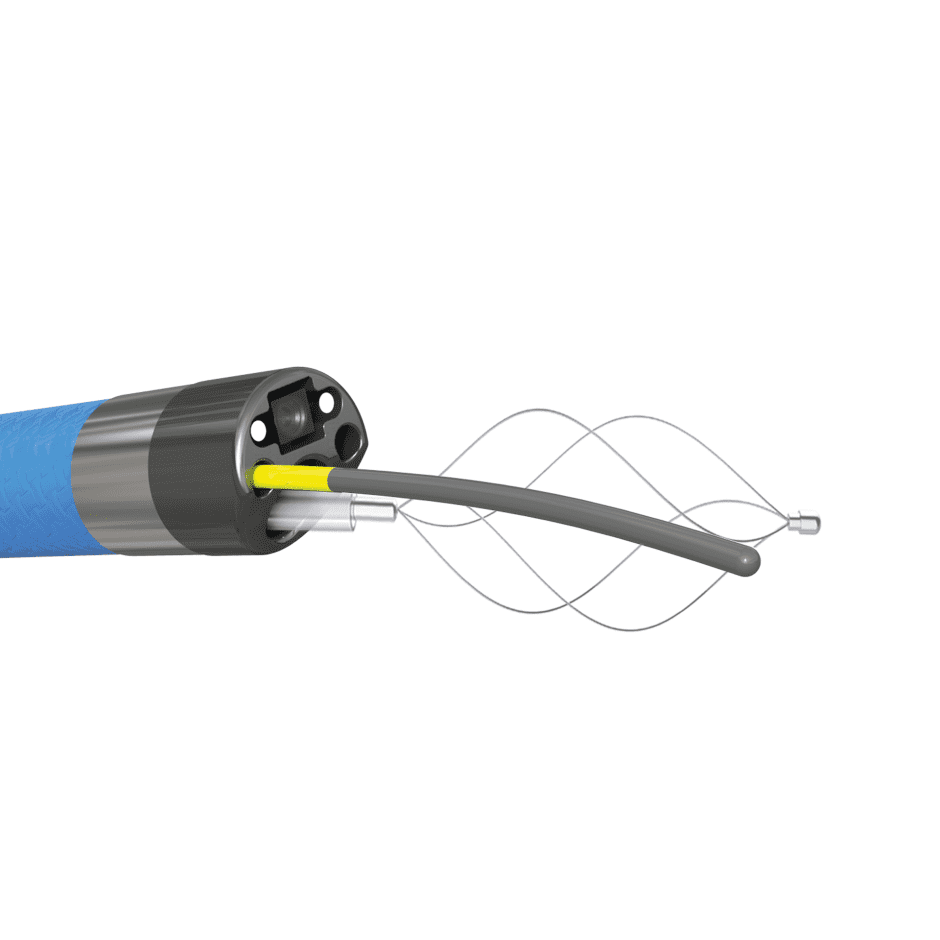

VedVision_guidewire-1920px
Extra Guidewire Channel :
The additional guidewire channel means a guidewire can be placed for repeated stone extractions or further therapeutic intervention.

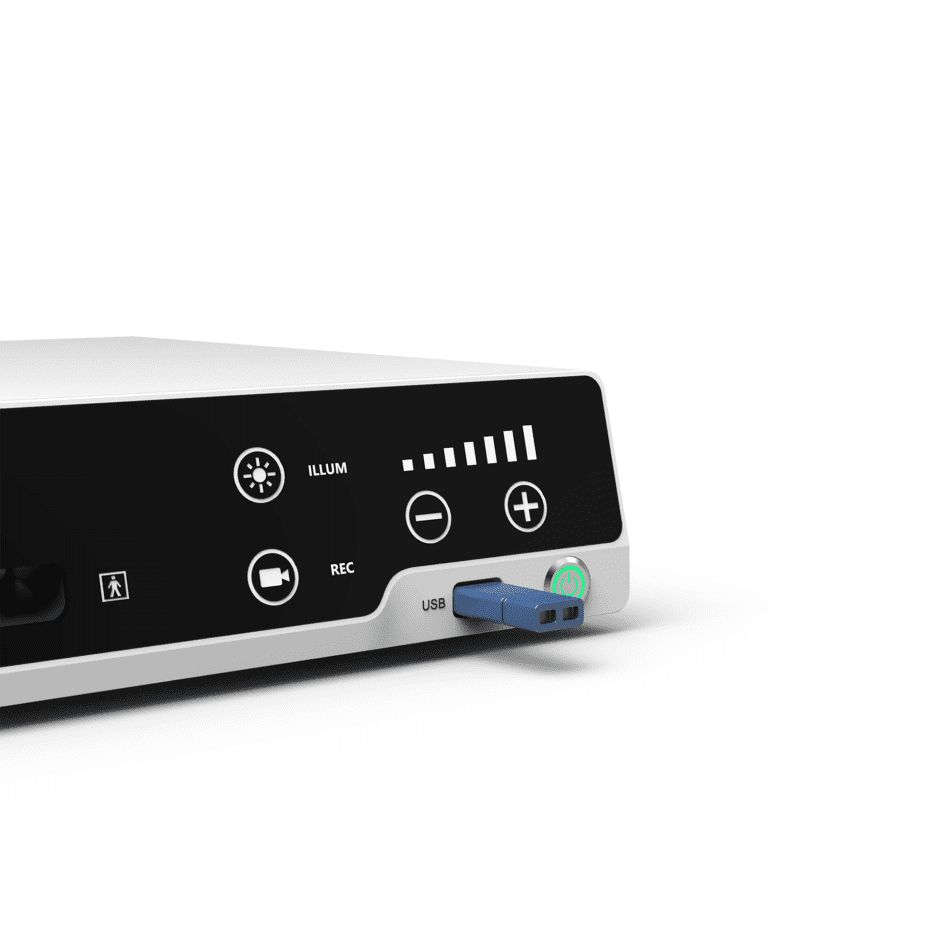

vedvision_control unit with usb-1920px
Real-time Recording :
Real-time recording with high-definition image recording function and support for USB 3.0 external storage devices.

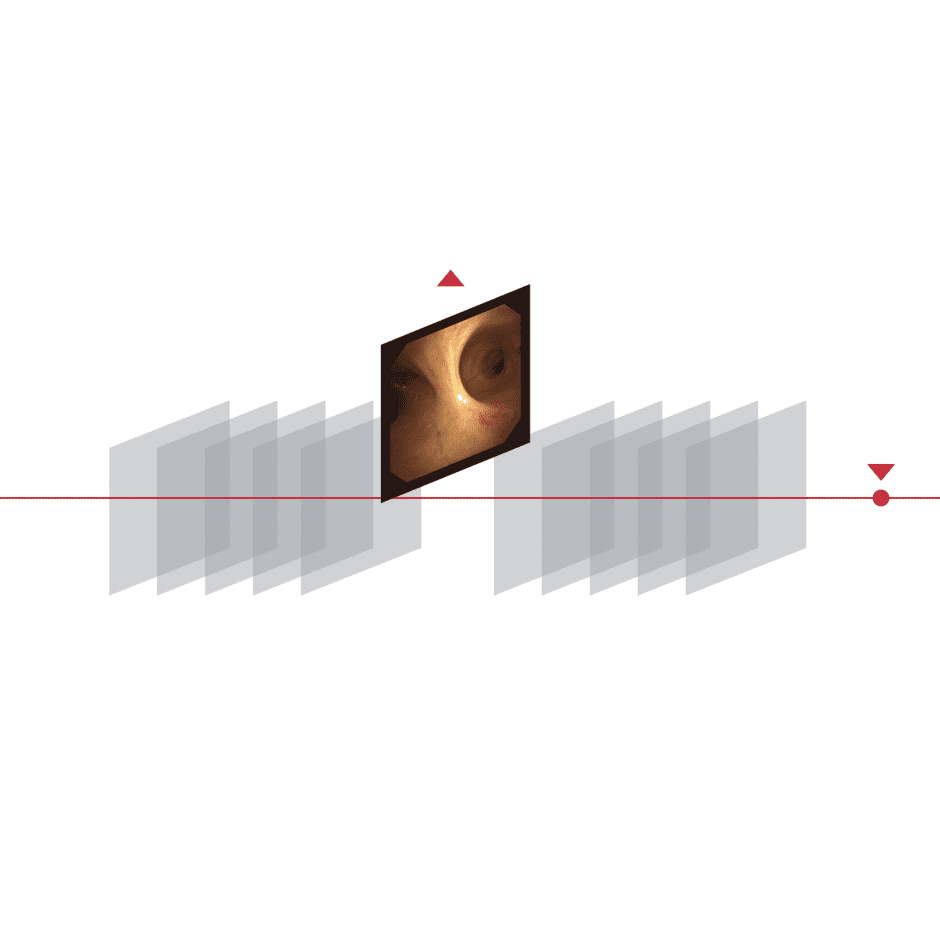

Advanced Image Capture
Single-click image capture and real-time video recording function. Advanced pre-freeze analysis automatically selects the clearest image when capturing an image.

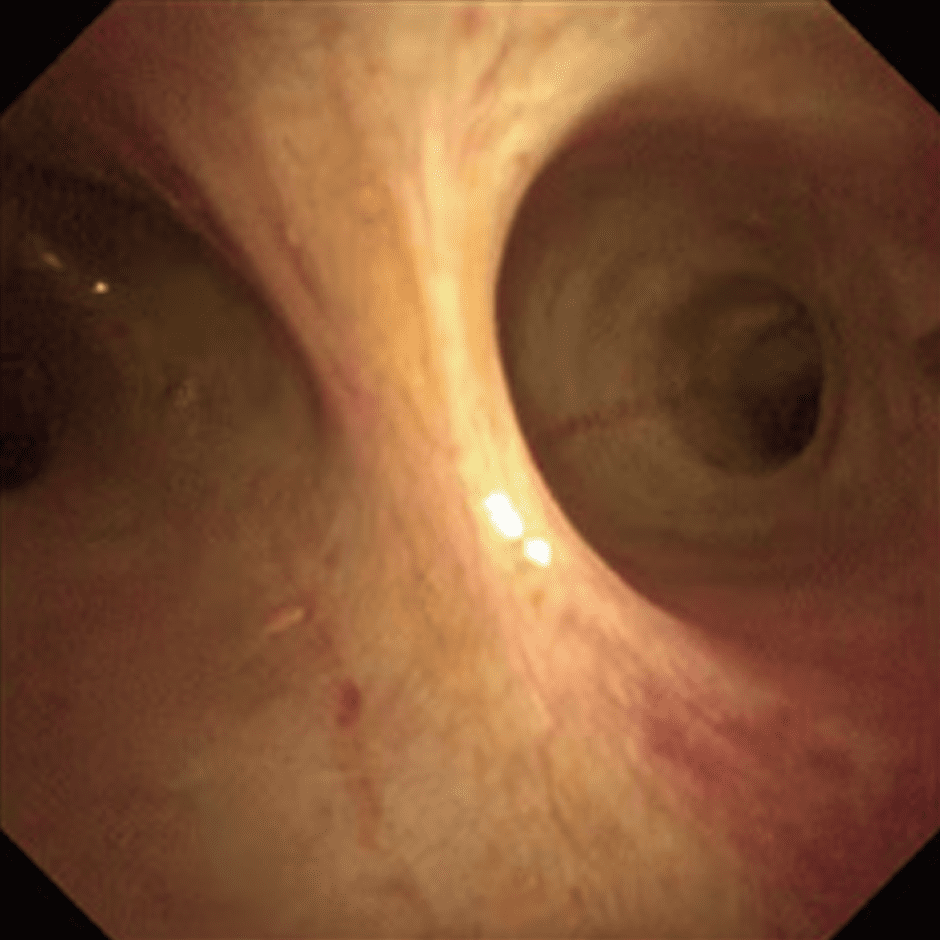

vedvision_auto_iba_image-1920px
Automatic Image Brightness
The unique automatic Image Brightness Adjustment (IBA) algorithm, minimises the light flare caused by stones or smooth bile duct walls.

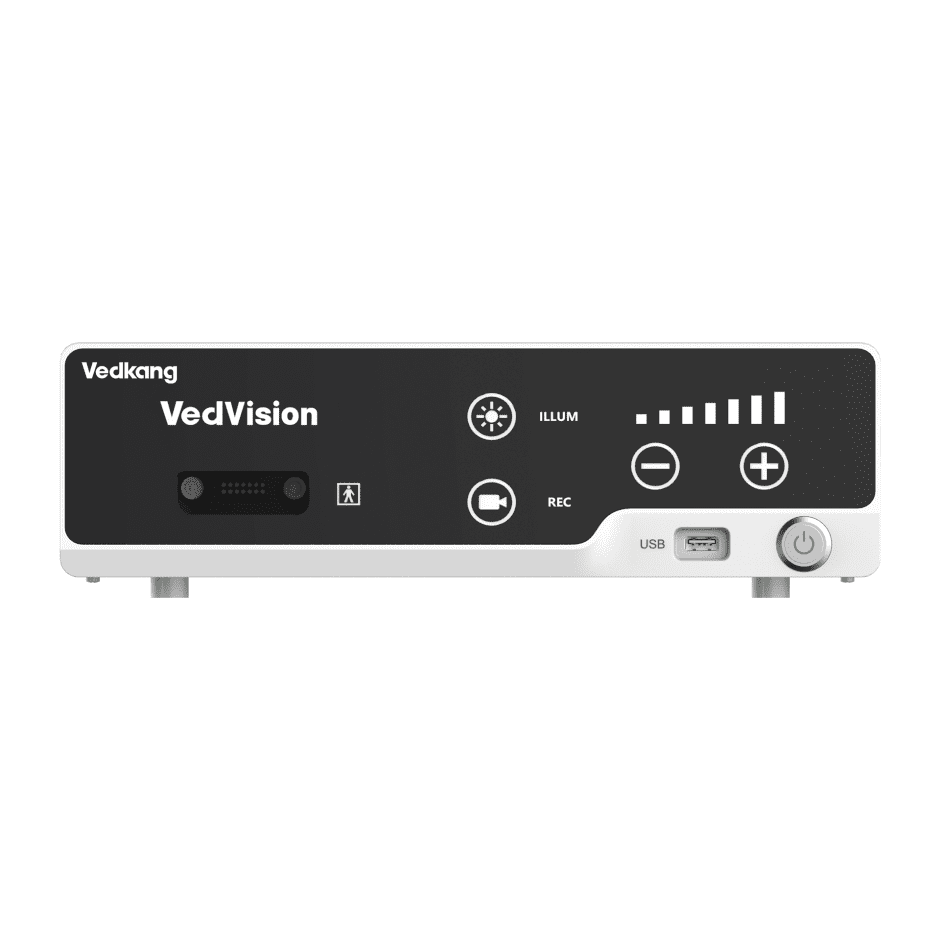

vedvision_controller-1920px
Digital Controller
The compact, lightweight digital controller is easy to use and comes with multiple video output options, including SDI, DVI, S-Video and Composite video.
vedvision_field of view-1920px
Wide Field of View
Next generation CMOS sensor provides a wider dynamic field of view, to ensure greater clarity of both up close and increased distance views.

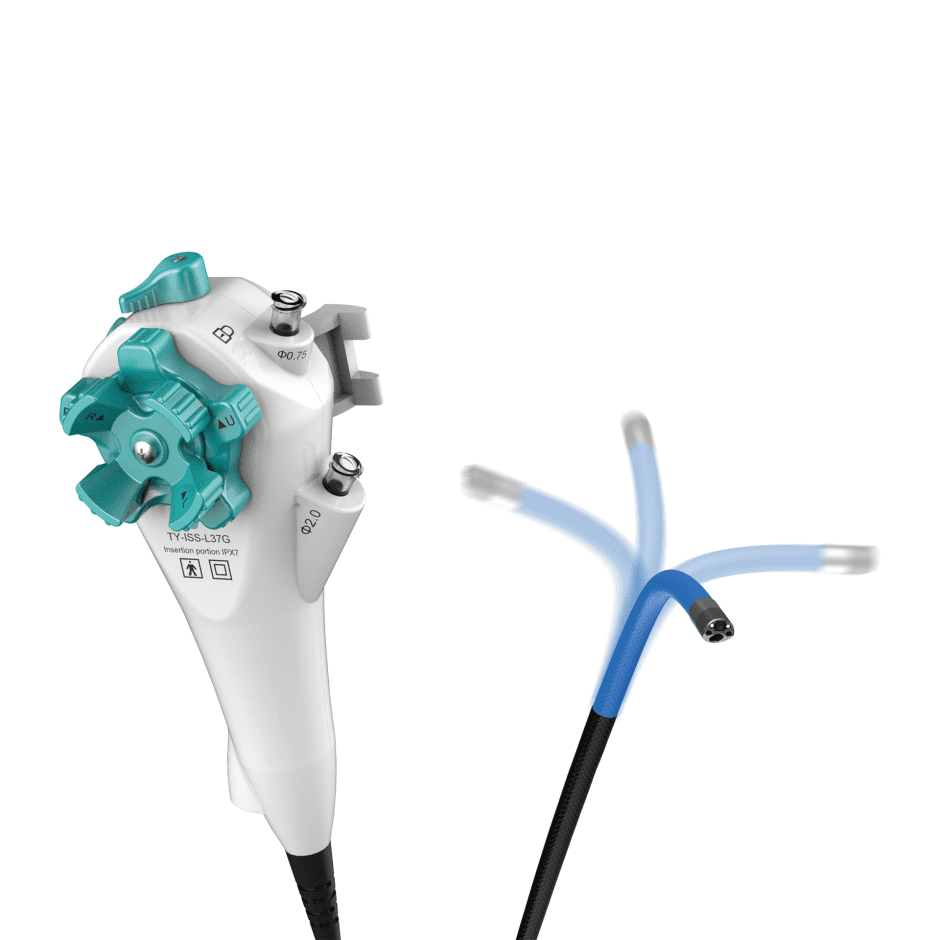

vedvision_4_way_angle-1920px
Precise Manoeuvrability
The familiar design of the access and delivery catheter provides clinicians with four-way angle adjustment on the scope head and an adjustment lock.
Every year, more than 1,000,000 people across the globe undergo ERCP for conditions related to the liver, gall bladder, pancreas and bile ducts. With VedVision the time of clearly visible ERCP has arrived.
* Specification and Part Numbers :
1- Part Number :
TY-ISS-H-200
- Description :
VedVision digital controller
2- Part Number :
TY-ISS-L37 G
- Description :
VedVision access and delivery catheter
- Outer Diameter :
Scope: 3.7 mm
- Length :
2600 mm
- Features :
Working channel OD:2.0 mm Accessory channel OD: 1.8 mm With 1.2 mm Guidewire Channel
3- Part Number :
S2421P
- Description :
24” FHD medical display
- Features :
24” ADS display, 1920 x 1200 pixels
4- Part Number :
TR800-200
- Description :
Cart for controller and monitor
5- Part Number :
VDK-FB-18-260-O-O-B1
- Description :
Biopsy forceps
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Without spike, uncoated
6- Part Number :
VDK-FB-18-260-O-P-B1
- Description :
Biopsy forceps
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Without spike, coated
7- Part Number :
JHY-BAS-18-260-10-N4-B-O
- Description :
Stone extraction basket
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Spiral shaped basket, 10 mm wide
8- Part Number :
JHY-BAS-18-260-10-N4-E-O
- Description :
Stone extraction basket
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Tipless basket, 10 mm wide
9- Part Number :
JHY-BAS-18-260-10-N4-A-O
- Description :
Stone extraction basket
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Diamond shaped basket,* 10 mm wide
10 - Part Number :
VDK-BC-18-260-B
- Description :
Cytology brush
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
‘U’ shaped brush
11 - Part Number :
VDK-BC-18-260-C
- Description :
Cytology brush
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Straight brush
12 - Part Number :
VDK-SD-18-260-15-A1
- Description :
Polypectomy snare
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Oval loop (15 mm wide)
13 - Part Number :
VDK-IN-18-260-2304-A
- Description :
Injection needle
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Needle size: 23G 4 mm
14 - Part Number :
VDK-ST-18-260-A
- Description :
Spray catheter
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Straight type
15 - Part Number :
VDK-ST-18-260-B
- Description :
Spray catheter
- Outer Diameter :
1.8 mm
- Length :
2600 mm
- Features :
Umbrella type
16 - Part Number :
VDK-ZGW-63-450-A
- Description :
Hydrophilic guide wire
- Outer Diameter :
0.63 mm (0.025”)
- Length :
4500 mm
- Features :
Straight hydrophilic tip, 5 cm
*Compatible with emergency lithotripter
