Better Is Not Enough, Be Different
Highlights
Pain Relief & Easy Positioning
-The Smallest PixelIt provides consistently higher resolution and clearer images for accurate diagnosis and treatment planning.
-Drop Resistant - Durable Sensor Materials
Specifications
-Detector CMOS
-Pixel Size 14.8 μm
-Theoretical Resolution 33.7 lp/mm
-Dynamic Range 12 bit
-Dimensions(WxLxT) :
32.5 x 44.0 x 5.5 mm [2.0
30.6 x 40.8 x 5.5 mm [1.5
37.8 x 26.6 x 5.5 [1.0]
-Active Area(WxL) :
25.9 x 35.9 mm [2.0
23.9 x 33.0 mm [1.5
20.0 x 30.0 mm [1.0]
-Exterior Material Silicone (Bio-compatibility)
-Total Cable Length 2.7 m

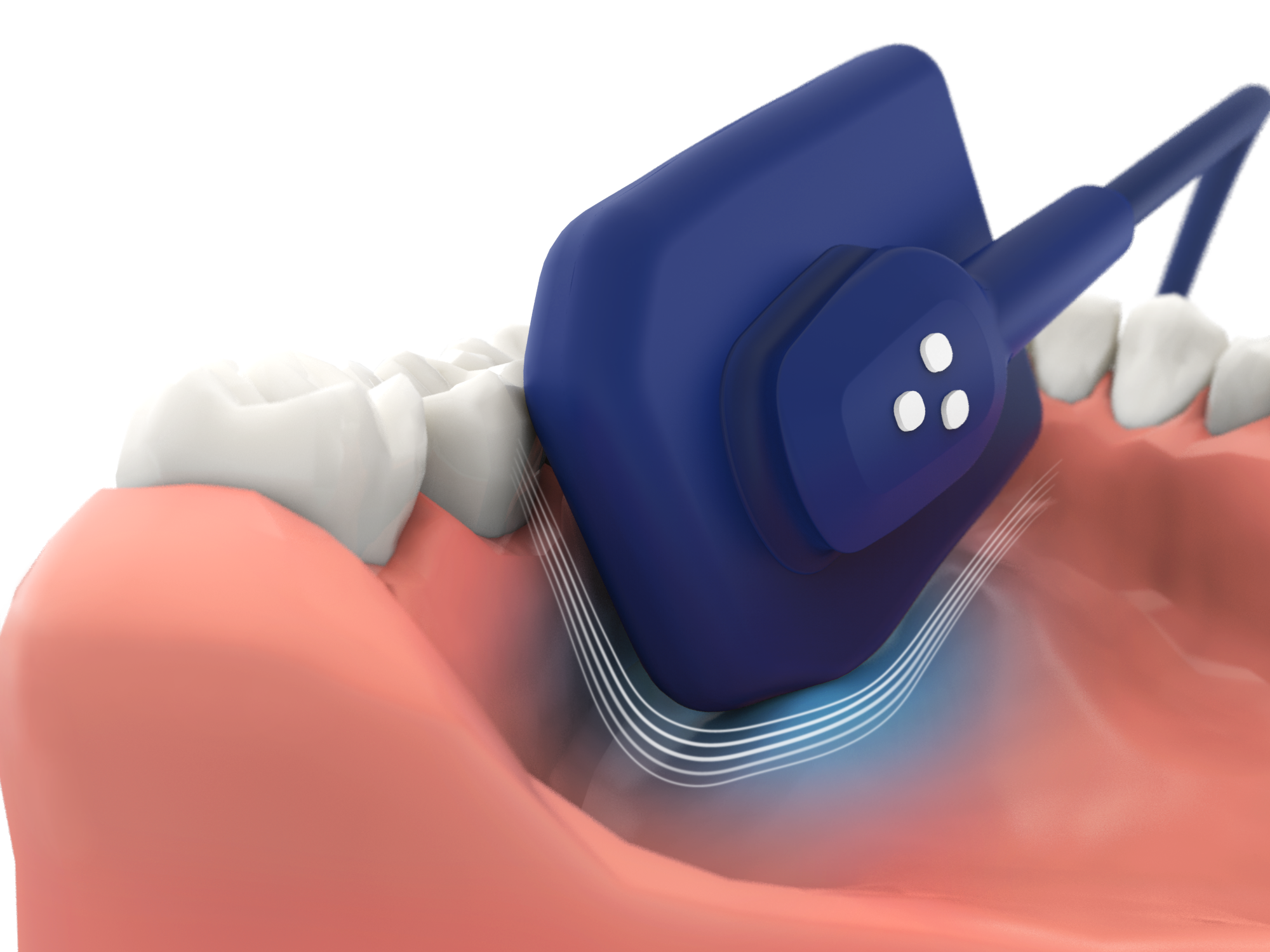

Pain Relief & Easy Positioning
-Compared to rigid Intra-oral sensor, the level of pain has been decreased by 40%.
-With reduced pain for the patient, the staff will be able to accurately position the Intra-oral sensor on the region of interest for diagnosis.

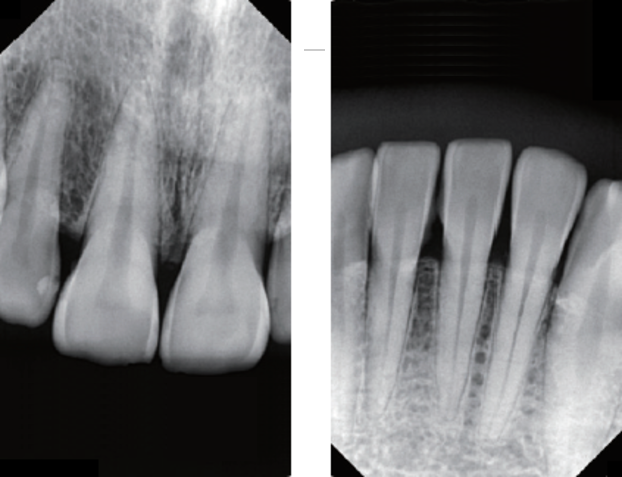

The Smallest Pixel
It provides consistently higher resolution and clearer images for accurate diagnosis and treatment planning.
EzSensor Soft is different. It’s 14.8 μm!
Accurate diagnostic images will be captured with the world’s smallest pixel size.
At 14.8 μm, the EzSensor Soft has a theoretical resolution of 33.7lp/mm.

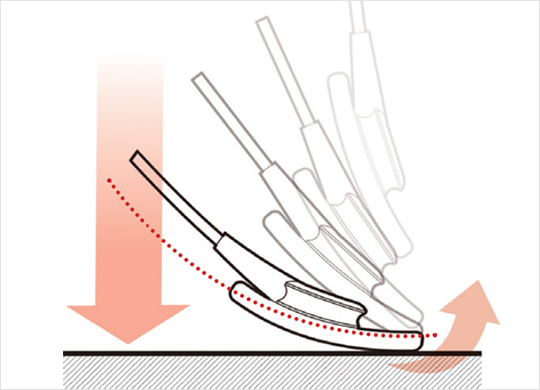

Drop Resistant - Durable Sensor Materials
Usually, when a staff accidentally drops or steps on a sensor, it succumbs to accidental damage.
EzSensor Soft is different. It has soft exterior! The EzSensor Soft’s rubberlike exterior can withstand external impact if the sensor is dropped; reducing the risk of damage.
