Make Your Operation Easier, Faster and More Professional
Highlights

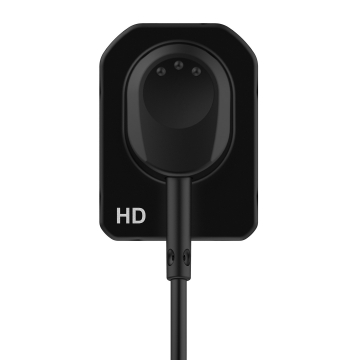

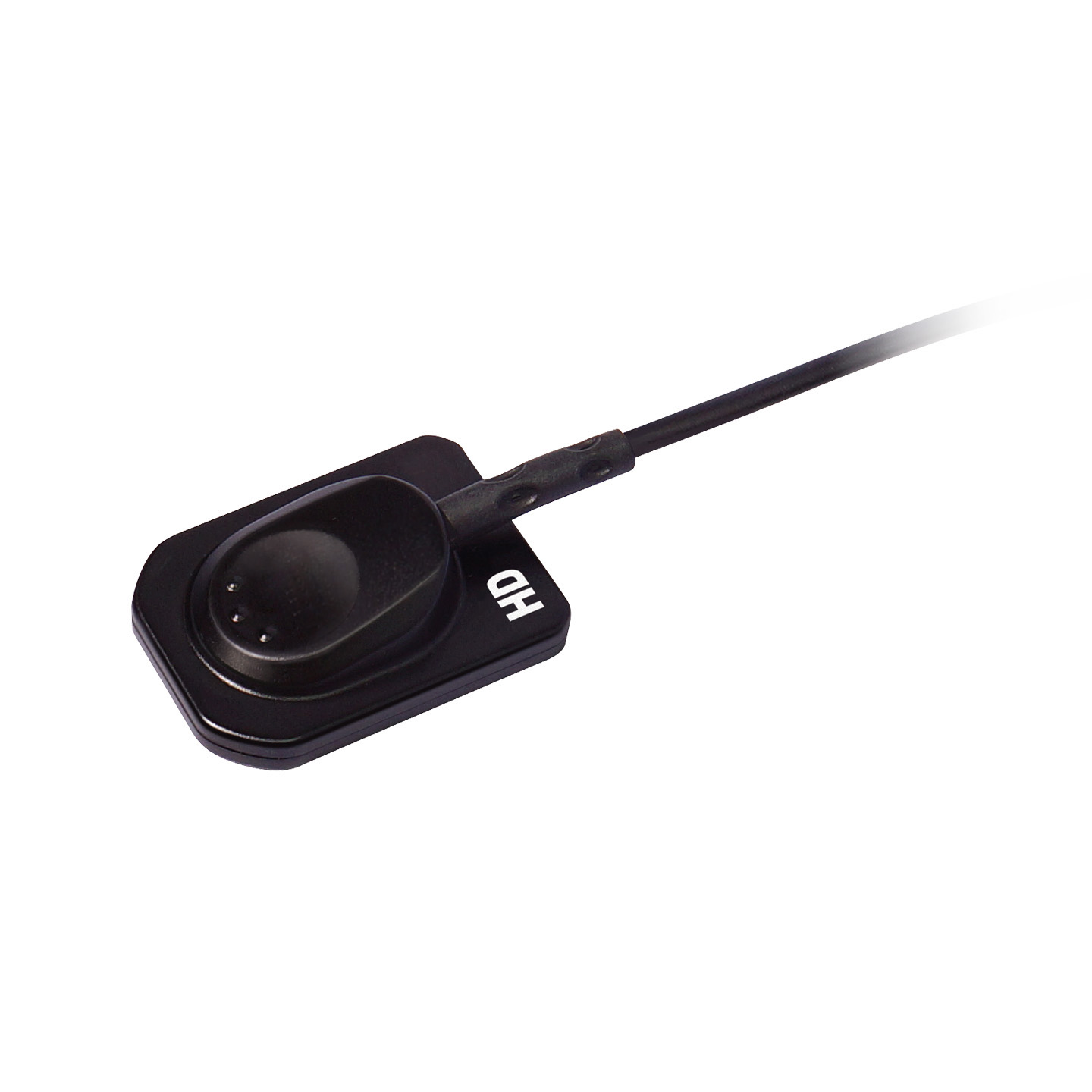

PRECISE AND PROFESSIONAL QUALITY,EzSensor HD
-33.78 lp/mm Experience the High Resolution
-EzSensor HD will upgrade the existing intraoral sensor standards.
-Innovation in Durability - upgraded usability and raise value
-Complete Protection Against Dust and Water
SPECIFICATIONS
-Detector CMOS
-Pixel Size 14.8μm
-Theoretical Resolution 33.78lp/mm
-Dynamic Range 12 bit
Active Area(WxL) :
Size 1.0 _ 20 x 30mm
Size 1.5 _ 24 x 33mm
Size 2.0 _ 26 x 36mm
Dimensions(WxLxT) :
Size 1.0 _ 25.4 x 36.8mm (1.00 X 1.45 inch)
Size 1.5 _ 29.2 x 39.5mm (1.14 X 1.55 inch)
Size 2.0 _ 31.3 x 42.9mm (1.23 X 1.69 inch)
-Thickness 4.8mm(0.19inch)

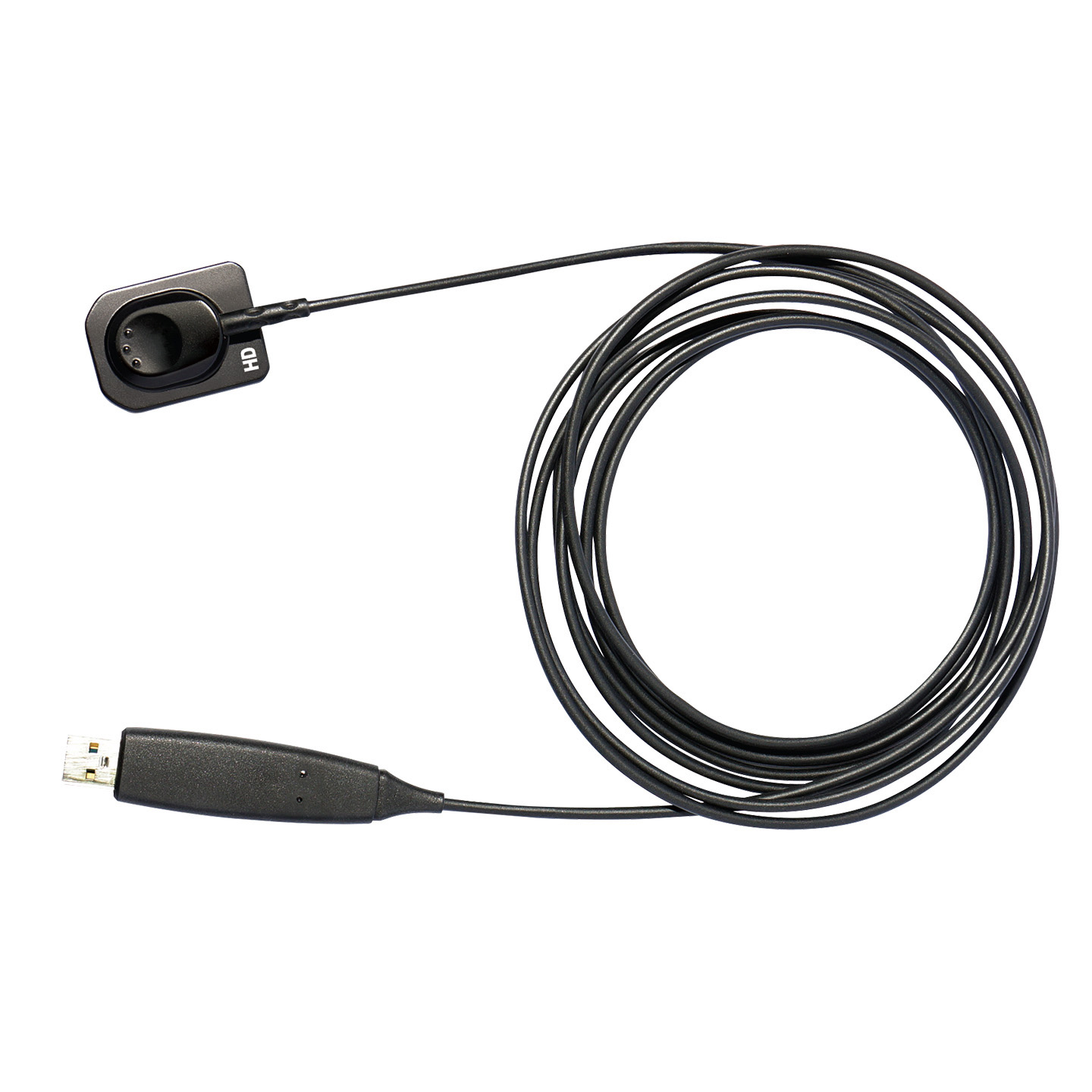

-Cable Length 2.7m
Features
33.78 lp/mm Experience the High Resolution:
-EzSensor HD especially provides expert images for endodontists and implantologists when you choose the ‘high resolution mode’.
-There is no image degradation caused by magnification. This greatly benefits you, when you check ROI which requires accurate diagnosis.
-EzSensor HD will upgrade the existing intraoral sensor standards.
How did we create such a high quality sensor?
-New image processing algorithm applied
-Well balanced imaging factors – resolution, sensitivity, and noise
-In-house manufacturing components (from CMOS design to viewer software)
Innovation in Durability - upgraded usability and raise value
Enhanced Durability Through Cable Strain Relief
-EzSensor HD is designed to prevent any kind of damages in its everyday use. Based on actual usage, our durability test includes bending up, down, left, right side and bending up to four times.
Complete Protection Against Dust and Water
EzSensor HD rated at IP68, the highest level of the Ingress Protection [IP].
