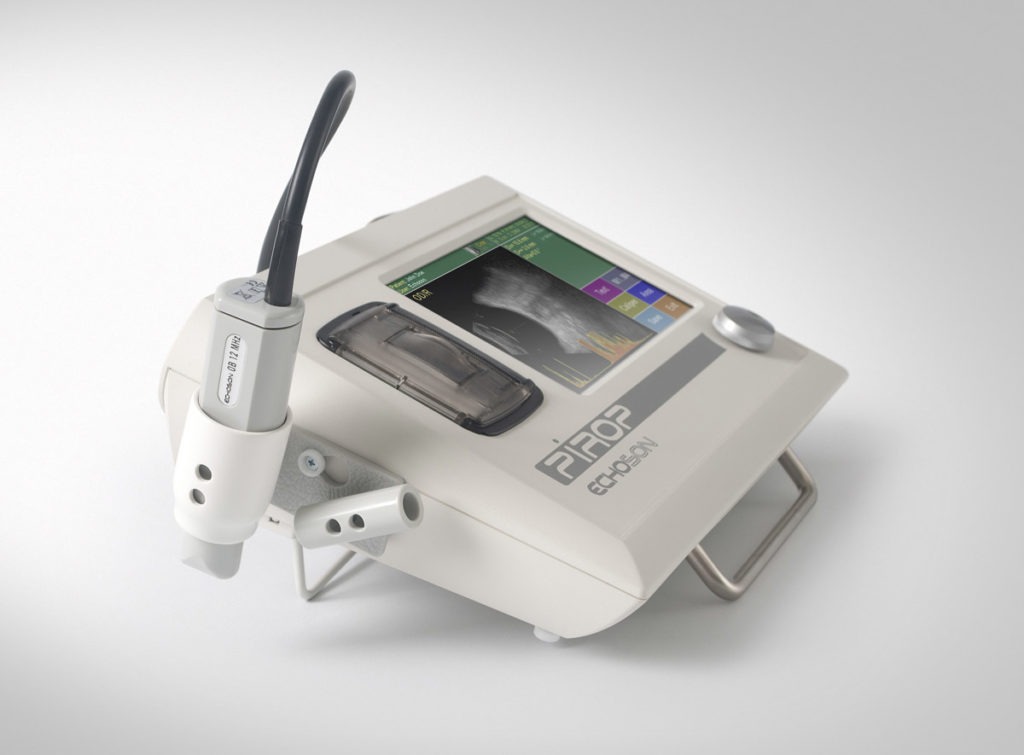

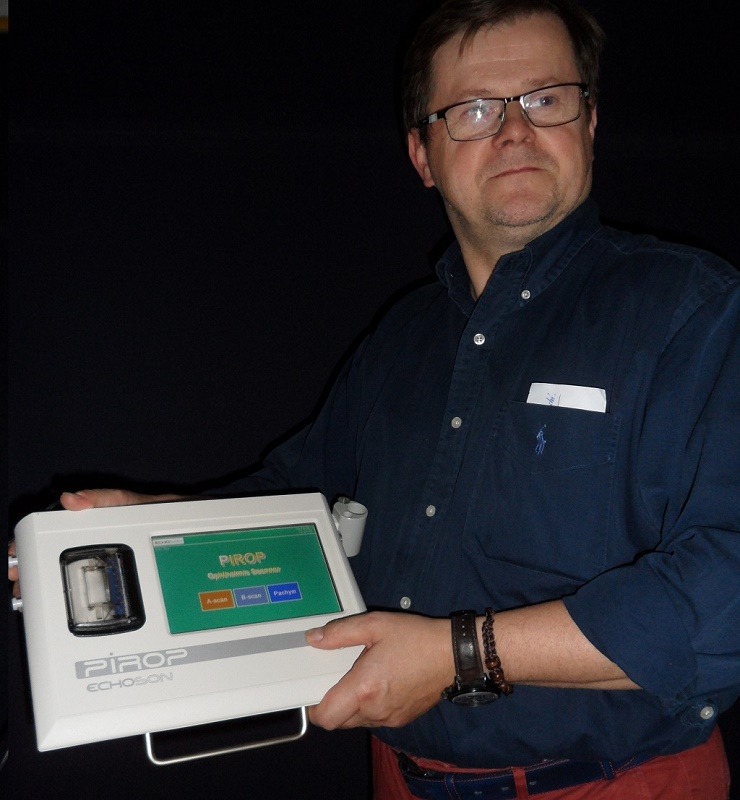

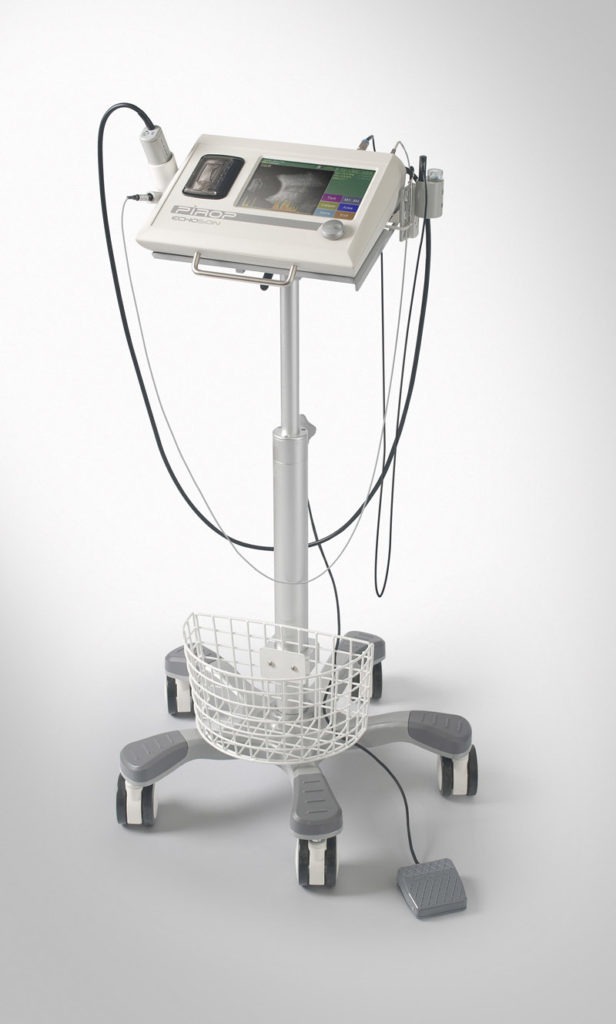

PIROP – state-of-the-art ophthalmic ultrasonic device for Biometry ,
Visualization and Pachymetry of eyeballs (A-Scan + B-Scan + CCT- Pachymeter) – modified version.
A-SCAN – Ocular Lens biometrics
Digital ‘A-scan’ tool for ophthalmology, biometry and lens power calculation of intra-ocular implants.
B-SCAN – Eye examination
Modern ‘B-scan’ tool for ophthalmology, interior eyeball imaging, retina, optical nerve …
CCT- PACHYMETER (P-SCAN) – Ocular cornea biometrics
Up-to-date ultrasonic pachymeter used to measure the thickness of the eye’s cornea (glaucoma screening and refractive surgery), with a very high sampling frequency –400MHz (a significant increase in measurement accuracy – ≤ 2 μm). Corneal pachymetry is an important test in the early detection of glaucoma (central corneal thickness CCT), and it help also surgeons by providing graphical surgical plans to eliminate corneal astigmatism.
PIROP user’s interface based on touch screen technology makes operation easy and user-friendly. The touch screen can be also operated not only with fingers, but also using the enclosed stylus to keep it clean.
#GENERAL PROPERTIES:-
• Touch Screen
easy, ergonomic and user-friendly operation via displayed menu
virtual keyboard for entering patient data, etc.
• Functional knob (gain control, review results, cine etc.)
• Color LCD 7” display
• Internal patient’s databas
• Ten (10) user profiles
• Support for barcode reader
• Possibility of connecting an external alphanumeric keyboard
• Recording of images in internal and USB-Pendrive memory.
• Internal thermal small printer ( for A-scan and P-scan reports )
• Composite-video output PAL (for videoprinter or video monitor )
• Support of multiple languages
• Easy firmware upgrade via USB port
# Probes:-

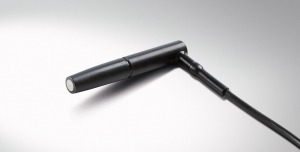

1) OA12 A-scan
Frequency:12 MHz
Application:biometry and lens power calculation for intraocular implants.

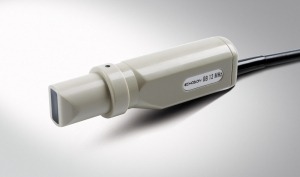

2) OB12 B-Scan
Frequency:12/15 MHz
Application:imaging of interior of an eyeball, retina, optical nerve ..

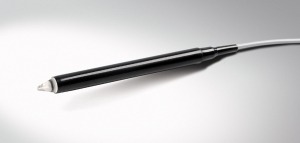

3) OP20 Pachymetr
Frequency:20 MHz
Application:measurements of thickness for all corneal types
