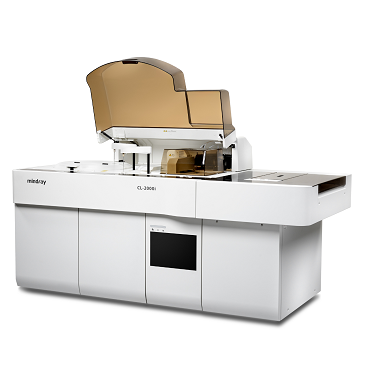

A floor-standing, fully automatic, chemiluminescence immunoassay system offering up to 240 tests per hour with ALP-AMPPD principle.
Features
-High test throughput up to 240 T/H
-Large capacity for sample (300 sample positions) and reagent processing (36 reagent positions)
-User-friendly software interface
-Flexible connection with BS-800M/BS-2000M chemistry system

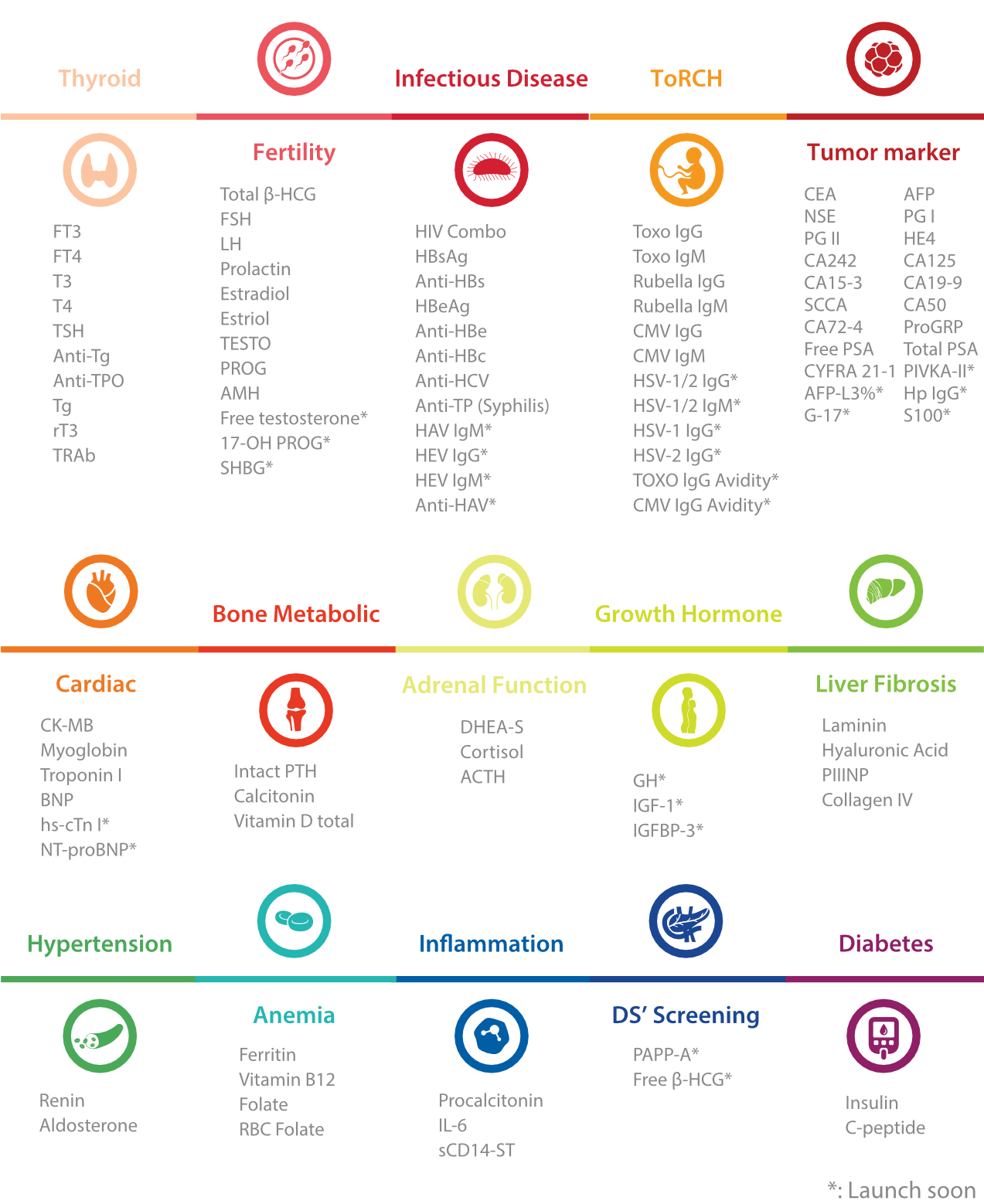

-Chemiluminescence Immunoassay Reagent
Technical Specifications
General Information
Throughput Up to 240 tests/hour Measurement Principle Micron superparamagnetic particles platform with alkaline phosphatase (ALP) labeled
Sample Assembly
-Sample Feeder
Rack system with Sample Delivery Module Up to 300 onboard samples with 30 racks
-Sample Probe
Steel probe, liquid level detection, clot detection, horizontal and vertical collision protection
-Sample Volume
10µl-200µl, with increment of 1µL
-Sample Dilution
Automatic dilution with 1:2-1:40
reagents and AMPPD substrate
Reagent Assembly
-Reagent Disk
36 reagent positions, continuous loading, real-time mixing for magnetic particles
-Cooling System 2°C-8°C
-Reagent Barcode
Automatic scanning
-Reagent Probe
Steel probe, liquid level detection, bubble detection, horizontal and vertical collision protection
-Reagent Volume
20µl-135µL, with increment of 1µl
Substrate System
-Substrate Bottle
300/500 tests per bottle, bottom piercing
-Substrate Loading
Capable of continuous loading during testing
-Substrate Heating Constant heating
-Aspiration Volume 200µL
Magnetic Separation Unit Separation Assembly
4-phase magnetic separation
-Temperature
Accuracy:37±0.3°C, fluctuation: ±0.1°C
Measurement and Reaction System
-Detection Mode
Photon counting
-PMT Calibration
LED reference module
-Signal Detector
Photomultiplier (PMT) photon counter
-Reaction Disk
150 positions
-Temperature
Accuracy:37±0.3°C, Fluctuation: ±0.1°C
-Mixing Unit
Non-touch vortexer mixing
Cuvette Loading and Waste Collection
-Disposable plastic bowls
-Cuvette Loading
Trays continuous loading and offloading, 126 cuvettes per tray, up to 9 trays (1134 cuvettes) can be loaded in one batch
-Waste Collection
2 waste boxes, overflow detection
Working Conditions
Power Supply
110V/115V-, 60Hz; 220V-240V, 50Hz; 220V/230V, 60Hz
-Input Power
3200VA Operating Temperature 15°C-30°C
-Relative Humidity
35%RH-80%RH, without condensation
-Dimension
Main Unit:1450mm*1020mm*1200mm (W*D*H)
SDM:710mm*1020mm*1200mm (W*D*H)
Total:2150mm*1020mm*1200mm (W*D*H))
Weight:750kg
-Altitude Height
400m~2000m
(optional external compressor for 2000m~4000m)
