Announces Launch of 4-Part Hematology Analyzer VH40
Differentiation of four types of white blood cells: Neutrophils, Lymphocytes, Monocytes, and Eosinophils.
Allow more detailed information on conditions such as:
– Allergy
– Bacterial infection
Description:
Assays:26 parameters
WBC, Mid#, Lym#, Gran#, EOS#, EOS% Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW-SD, PDW-CV, PCT, P-LCR, P-LCC, NLR, PLR PLR)
Dimension
430mm×280mm×435mm (L×W×H)
Weight
17.5 KG
Features:

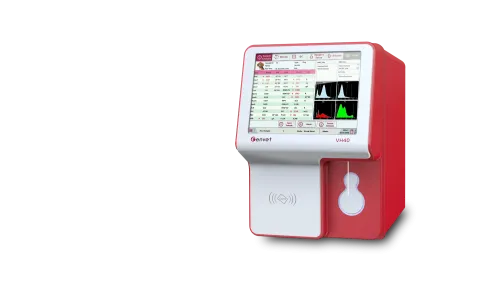

4-Part Hematology Analyzer VH40
New Parameter:Eosinophils number and percentage
45test/hour, result in 80 seconds
Support 26 parameters
Micro sample volume at 9μL
Better repeatability for low value sample
Support 19 species for test
Upgraded interface, cute profile photo for pet
VH40 Better chiose for pet hospital and reference lab.
Eosinophils Clinical Significance
The eosinophils are able to phagocytose and kill bacteria, they are mainly known for being involved
in parasitic infections and allergic reactions;
Parasites are very common in animals. Therefore, eosinophil is an important parameter to monitor
How to realize accurate Eosinophils determining?
Impedance as our core principle
Adopt VH04 Lyse for WBC differentiation；
Add the lyse twice for accurate result.
The first time for differentiating lymphocytes and monocytes;
The second is to shrink other WBCs in order to aviod the interference,
then we can count the neutrophils and eosinophils.
Specifications:
Throughput
45 samples per hour
Sample volume
Whole blood:9ul, Pre-diluted: 20ul
Calibration
Manual and auto calibration
Quality control
3 level QC
LJ graph, XB graph
19 Species
Cat, Dog, Rabbit, Sheep, Goat, Cattle, Horse, Rat, Mouse, Llama, Deer, Musk deer, Monkey, Tiger, Dolphin, Pig, Camel, Ferret, Panda. etc.
Reagents
2 Reagent (1 Lyse + 1 Diluent)
1 Probe cleanser for maintenance
Interface
4 USB ports, 1 LAN port
HL7 protocol, support Bi-directional LIS
Storage
600,000 sample results with histograms
All-in-one Solution
Built-in printer
Built-in card reader
Power
AC 100-240V, 50/60±1Hz
