Product:i-Smart 300 VET
- Features :
- Blood Gas Analyzer
- Provides menu and screen customization for ease of use for veterinarians
- All-in-One cartridge system including electrodes, reagents, and all other consumables
- Rapid testing time (50 seconds) and small blood volume (100 μL)
* Product Information :
- Size / Weight : 257 x 252 x 394 mm / 7.1 kg
- Display : 8 inch color LCD (touchscreen)
- Printer : Two-inch (built-in) thermal printer
- Interface : Serial (RS-232), LAN (RJ45 Ethernet)
- Power : 100–240 VAC, 50–60 Hz
- Built-in battery : Up to 2 hours of use (Lithium-ion cell)
* Cartridge :

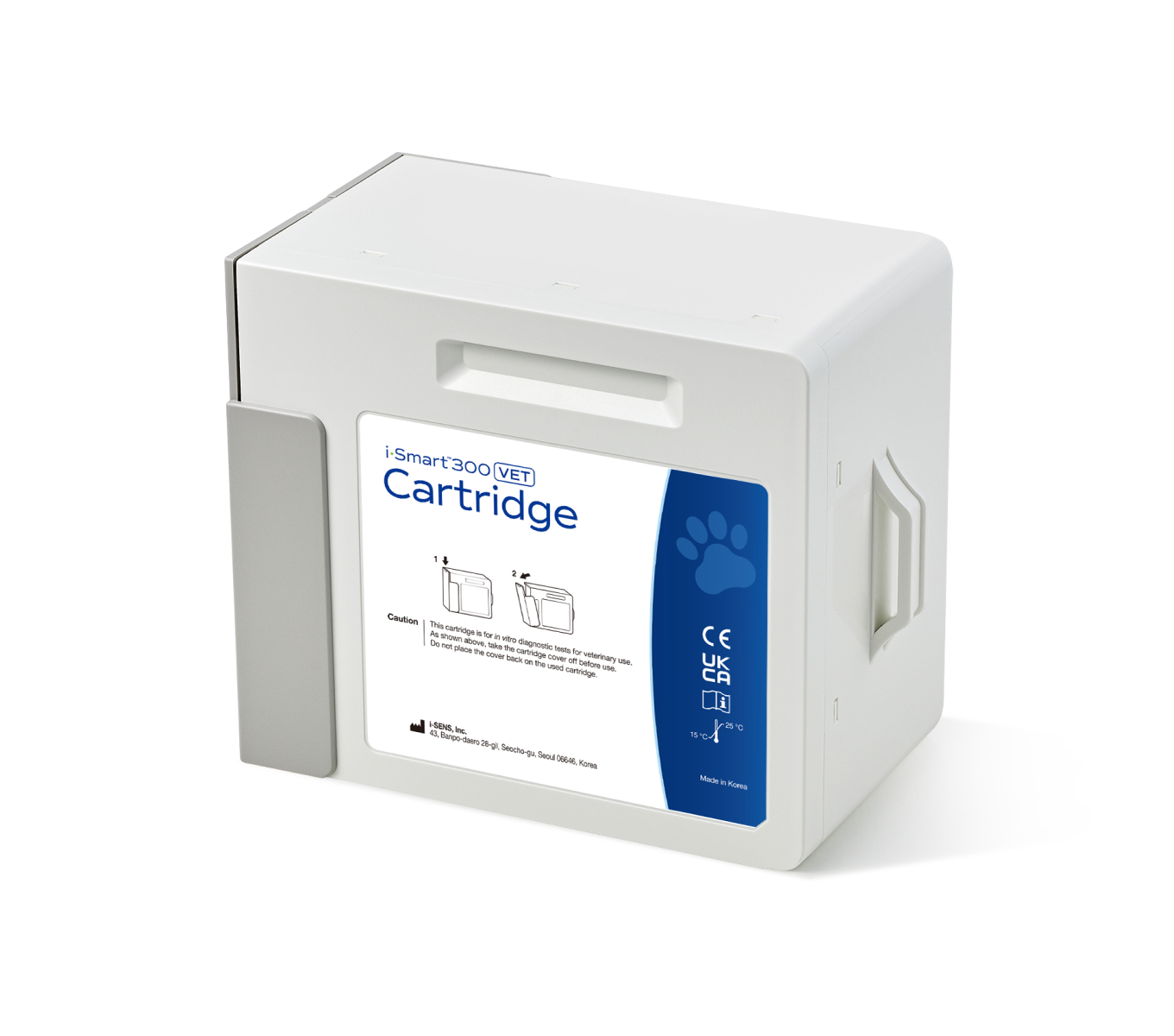

- i-Smart 300 VET Cartridge :
- Measurement items : pH, pCO2, pO2, Na+, K+, Cl–, Ca2+, Hct
- Calculation items : pH(T), pCO2(T), pO2(T), tCO2, HCO3–, HCO3–(std), BE(ecf), BE(B), Anion Gap(K), tHb, Ca2+(7.4), pO2(A-a), sO2
- Sample type and volume : Heparinized whole blood 100 μL
- Testing time : 50 seconds
- Calibration : Automatic or manual
- Cartridge specifications :
30 tests for 3 weeks
50 tests for 3 weeks
100 tests for 3 weeks
200 tests for 3 weeks
300 tests for 3 weeks
- Expiration date : 6 months from the manufacturing date
* Quality Control :

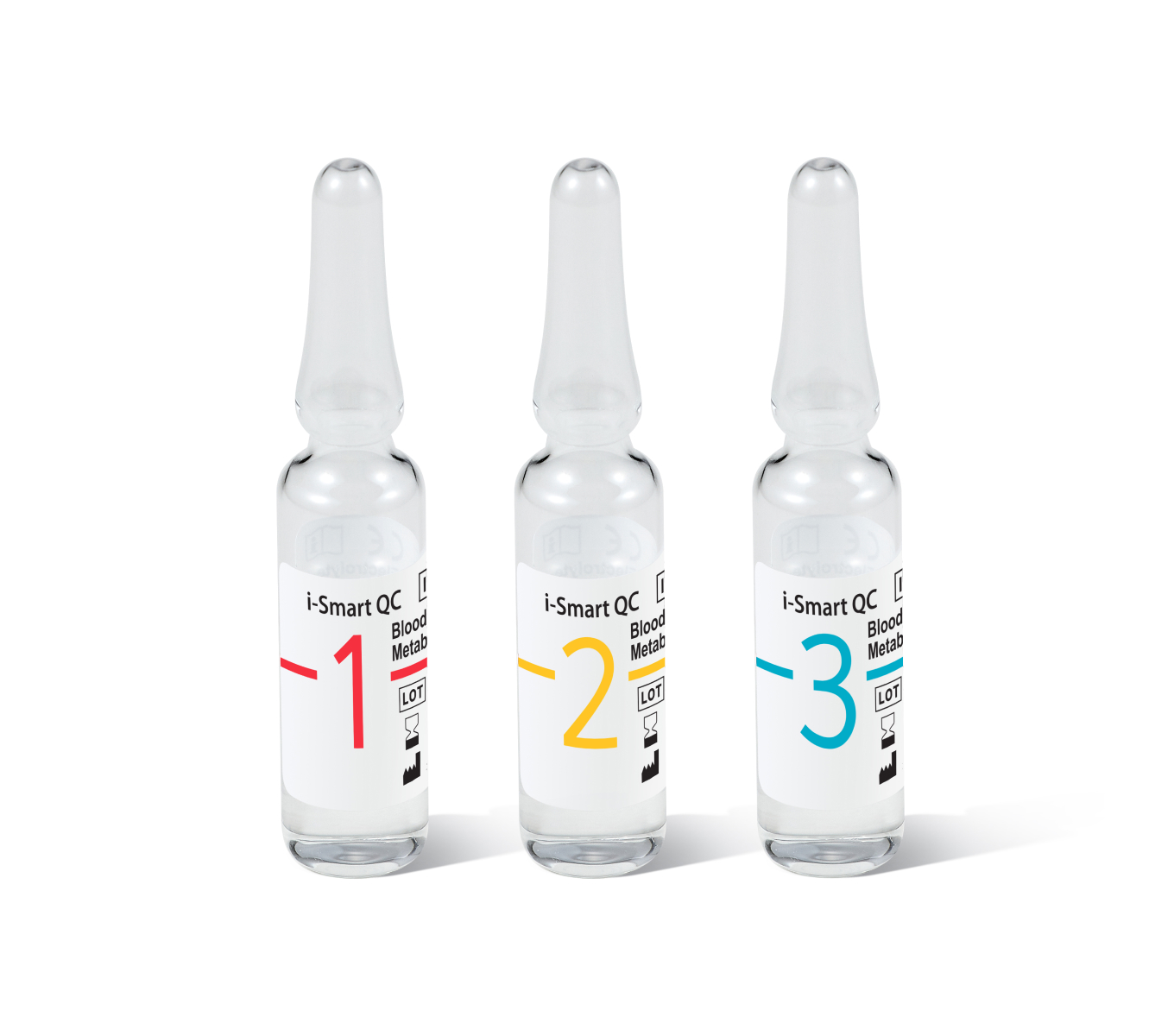

- i-Smart QC :
- Features : Blood Gas, Electrolyte, and Metabolite Control Solution
- Use with : i-Smart 300 VET Cartridge
- Level : 1, 2, 3
- Volume : 2.5 mL * 10 vials per level
