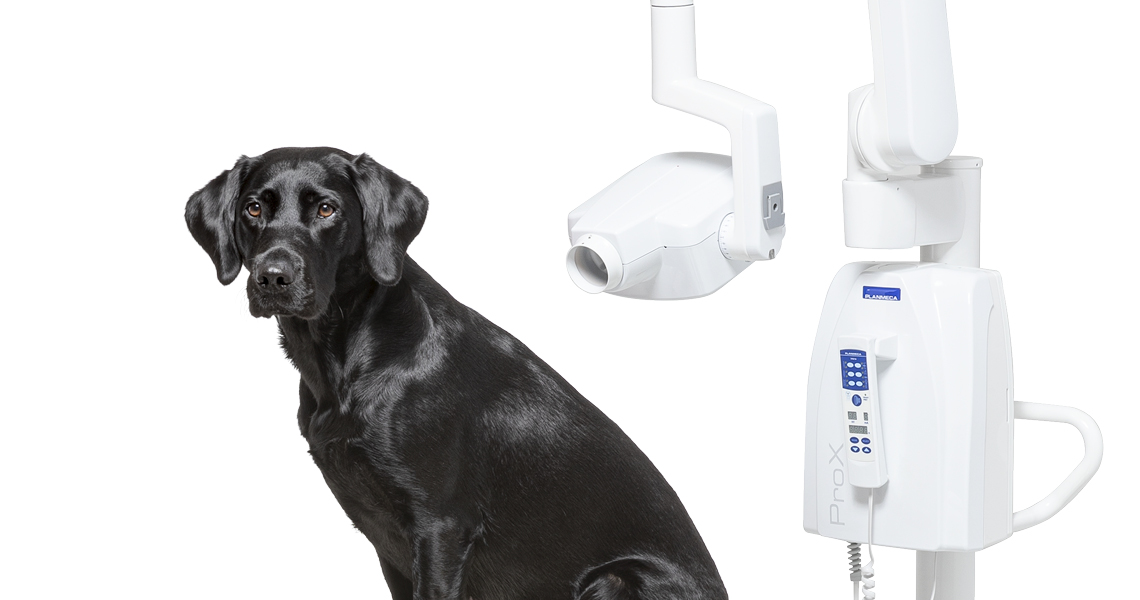

The Planmeca ProX™ intraoral X-ray unit for veterinary dental radiography is the perfect choice for 2D intraoral imaging. The unit offers easy and precise positioning, a straightforward imaging process, and top-quality images in high resolution for veterinary use. With its unique features and practical design, Planmeca ProX makes imaging animal teeth easy. The X-ray unit can also be used for imaging the animal’s joints and paws.
Technical data:-
Generator Constant potential, microprocessor controlled, operating frequency 66 kHz
X-ray tube Toshiba D-041SB
Focal spot size
0.4 mm according to IEC 60336
Cone diameter 60 mm (2.36 in.)
Rectangular 33 x 43 mm (1.30 x 1.69 in.)
Max. symmetrical radiation field Ø60 mm at SSD 200 mm
Ø60 mm at SSD 300 mm
according to IEC 806
Total filtration min. 2.5 mm Al equivalent at 70 kV
according to IEC 60522
Inherent filtration 1 mm Al equivalent at 70 kV
according to IEC 60522
Anode voltage 60, 63, 66, 70 kV
Anode current 8, 7, 6, 5, 4, 3, 2 mA ±(5% + 0.2 mA)
Exposure times 0.01–2 sec., 24 steps
SSD (Source-Skin Distance) Standard/Long 200 mm (8 in.)/300 mm (12 in.)
Mains voltage 100 V~/110-115 V~/220-240 V~, 50/60 Hz
Duty cycle:1:13.5
Electrical classification Class I Type B
Weight total 29 kg (64 lbs)
tube head with standard cone 4.2 kg (9.3 lbs)
tube head with long cone 4.5 kg (10 lbs)
Colour White (RAL 9016)
