Philips PageWriter TC70 cardiograph is designed to simplify diagnostic ECG testing and streamline workflow – where an automated workflow and outstanding clinical support is critical.
-Features*

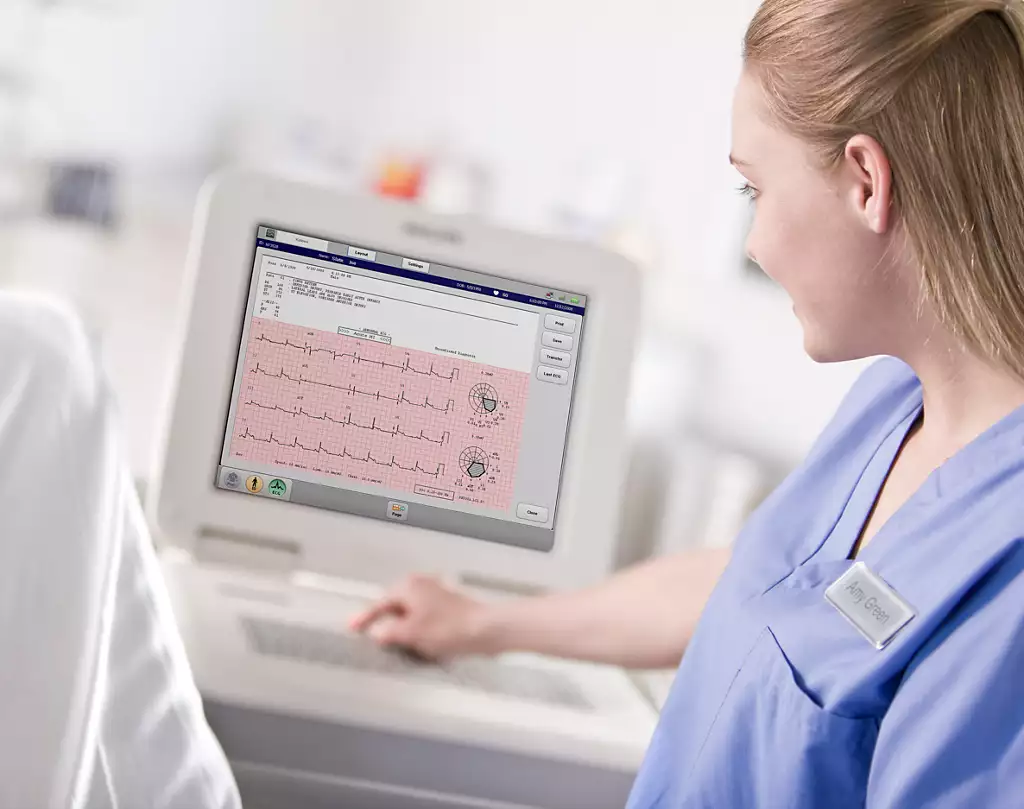

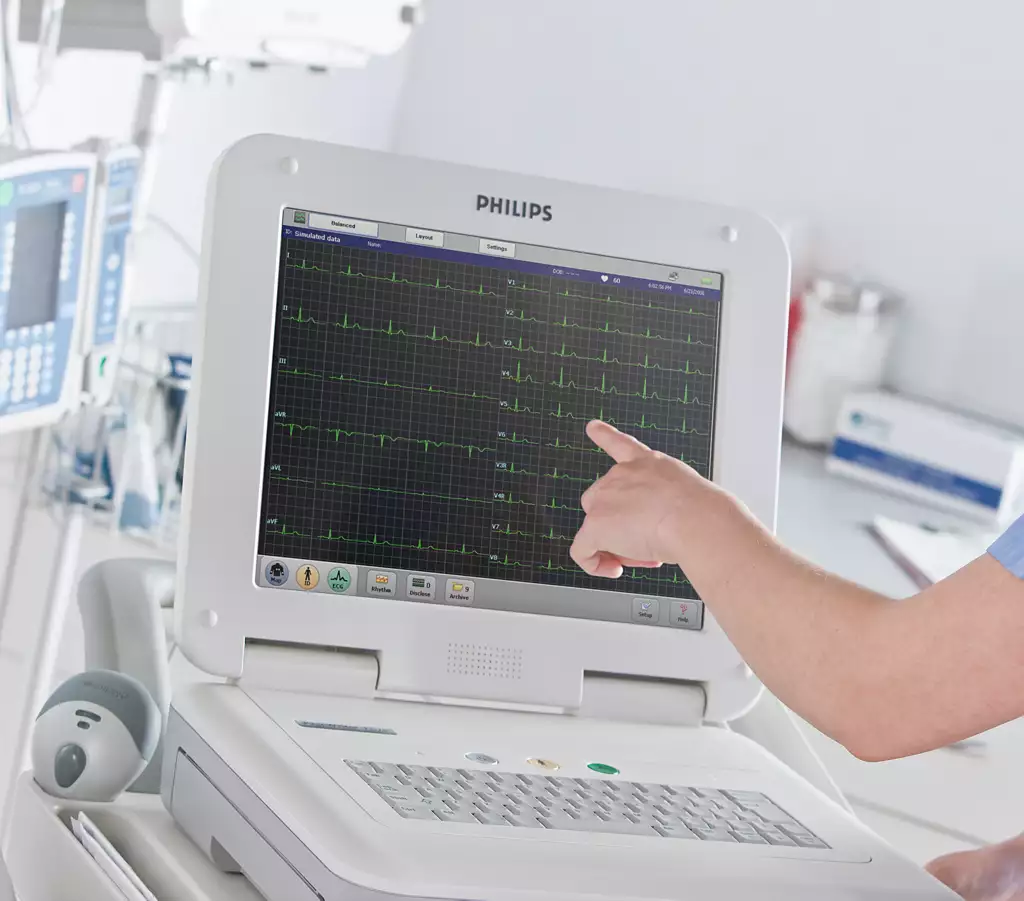

-Visual guidance to simplify ECGs; With the PageWriter TC70 cardiograph, each button lights in sequence, prompting you to take an ECG as easily as 1-2-3. The high-resolution, 15" touchscreen further streamlines ECGs.
-Philips DXL ECG Algorithm expands diagnostic capabilities; Philips DXL 16-Lead ECG Algorithm provides industry-leading ECG interpretations and a suite of advanced STEMI diagnostic aids to provide an interpretation of rhythm and morphology for a wide variety of patient populations. It includes: Critical Values, ST Maps, and culprit artery identification.
-Automated reporting sequence saves time; The high performance PageWriter TC70 cardiograph features an automated ECG report sequence with integrated wireless transfer of ECGs to streamline your workflow.
-Automated reporting sequence saves time
The high performance PageWriter TC70 cardiograph features an automated ECG report sequence with integrated wireless transfer of ECGs to streamline your workflow.
-Lead placement aids accurate placement of leads on the patient; The anatomic patient interface module and LeadCheck help support correct lead placement, while the 3-in-1 Trident lead wires reduce tangling.
-Lead placement aids accurate placement of leads on the patient; The anatomic patient interface module and LeadCheck help support correct lead placement, while the 3-in-1 Trident lead wires reduce tangling.
-Critical Value statements speed the delivery of urgent care; When appropriate, the PageWriter TC70 automatically displays Critical Value summary statements boldly on screen and on printed ECG reports so that caregivers can determine the need for urgent care. Clinicians can quickly take action and reduce the time from the discovery of a critical cardiac event to intervention, such as balloon angioplasty.
-Saved ECGS can be quickly accessed; Clinicians can save time by retrieving previous ECGs at the bedside for quick comparisons.
-Saved ECGS can be quickly accessed; Clinicians can save time by retrieving previous ECGs at the bedside for quick comparisons.
-Advanced bidirectional network communication for secure connection; With industry standardized DICOM, XML, and PDF report formats, via wireless LAN, or modem and fax, PageWriter TC70 fits seamlessly into your existing IT infrastructure. So you’re always connected, without being locked in. It delivers secure, wireless connectivity via standard LAN protocols to protect the privacy of patient, staff, and financial information.*
-Specifications*
ECG Functions:
-Simultaneous Lead Acquisition : Up to 18 leads
-Full Disclosure : Twenty minute history of all 16 leads and complete ECG report of any 10 seconds
-Timed ECG : Support for pharma stress protocols
-Report Storage/Transfer : Full fidelity at 500 Hz of all 10 sec for up to 16 leads in XML format (schema published)
Philips DXL 18-Lead ECG Algorithm*
-Interpretive statements : >600 interpretive statements with integrated pediatric analysis
-LeadCheck : Lead placement software detects 20 different lead reversals
-Borderline Statement Suppression : Three configurable settings
-Reasons : Selectable explanations of all interpretive statements
-Nomenclature : Conforms to 2007 AHA/ACC recommendations
User Interface :
-Touchscreen : 1-2-3 operation/context sensitive application/5-wire resistive touchscreen
-Keyboard : 65 button standard full alphanumeric keyboard that supports special characters
-Display : 15 inch TFT
ADT (D02) :
-Query and retrieval of patient demographic information : Full patient demographic information can be automatically retrieved.
STEMI Diagnostic Aids:
-Graphical ST Vector : Two polar ST Maps in frontal and transverse planes
-Critical Values : Highlights 4 conditions requiring immediate clinical attention
Networked Features (requires IntelliSpace ECG):
-Central Time Management : Time can be synchronized to a networked time master
-Orders : Configurable rules to retrieve cardiograph-specific worklists
Signal Processing:
-Patient Interface Module : Remote microprocessor-controlled digital module provides 5μV resolution
Pre-Processing Filters :
-AC Noise : 50 to 60
-Signal Processing : Artifact Rejection and Baseline Wander
Presentation Filters - 10 sec Report :
-Low Pass : 40/100/150
-High Pass: 0.05/0.15/0.5
Display :
-Size : 30.4cm x 22.8cm color liquid crystal touch screen display with backlight
-Resolution : 1024 x 768 pixel resolution
Patient connections :
-Patient Interface Module (PIM): Remote, microprocessor-controlled digital module
Presentaton Filters - Rhythm :
-Low Pass : 40/100/150
Printer:
-Type : High-resolution, digital-array printer using thermal-sensitive paper
-Resolution : 200 dpi (voltage axis) by 500 dpi (time axis) at 25 mm/se
Mechanical :
-Dimensions : 40 x 33 x 16 cm (15.7 x 13 x 63 in)
-Weight : 13 kg/28 lb
Connectivity :
-LAN : 10/100 Base-T IEEE 802.3 Ethernet via RJ45 connector (standard)
-Wireless (D21) : Optional software required for wireless LAN connection.
-Wireless credential : Wireless LAN connection is 802.11 a/b/g/n compatible.
-Internal storage : Up to 200 ECGs to internal flash memory
-External storage : Up to 200 ECGs per USB Memory Stick (optional)
Automated data input :
-Bar code reader (H12) : Reads Code 39 (standard and full ASCII)
-Flexible field data entry : Yes
Safety and Performance :
-International Standards : IEC 60601-1: 1988 +A1:1991 +A2:1995 General Requirement for Safety
C 60601-2-51:2003: Particular Requirements for Safety
Ul 2601-1:20031997 US General Requirements for Safety
CAN/CSA-C22,2 No, 60l1-M90 51:1994 B:1996
AAMI EC111991 (R:2001): Diagnostic Electrocardiography Devices
Electrical :
-Battery : SMBus compliant batteries
-Battery capacity (per battery) : 7800 mAh (per battery)
-Operating condition : 9.0 to 12.6 VDC
-Battery recharge : Less than 8 hours to at least 90% capacity (RUN mode).
-Main power : 35 to 44 W max per battery (continuous)
-Power consumption : Fully charged, two batteries can support up to 7 hours under normal usage.
-Environmental*
-Operating conditions - Temperature : 10° to 40 °C (50° to 104°F)
-Operating conditions - Humidity : 10% to 90% relative humidity (non-condensing)
-Operating conditions - Altitude : Up to 4,572 m (15,000 ft.) altitude
-Storage conditions - Temperature : -20° to 50 °C (-4° to 122°F)
-Storage conditions - Humidity : 10% to 90% relative humidity (non-condensing)
-Storage conditions - Altitude : Up to 4,572 m (15,000 ft.) altitude
Environmental:
-Operating Conditions (b) : 15% to 80% relative humidity
-Operating Conditions (a) : 10°C to 40°C (50°F to 104°F)
-Operating Conditions (c) : Up to 4,550 m (15000 ft)
Electrical - IntelliBridge EC40/80 :
-Power consumption : 75 W max
-Battery recharge : 5 hours to full capacity
-Battery capacity : Typically 50 ECGs on a single charge
-AC power : 100-240 VAC at 50/60 Hz
