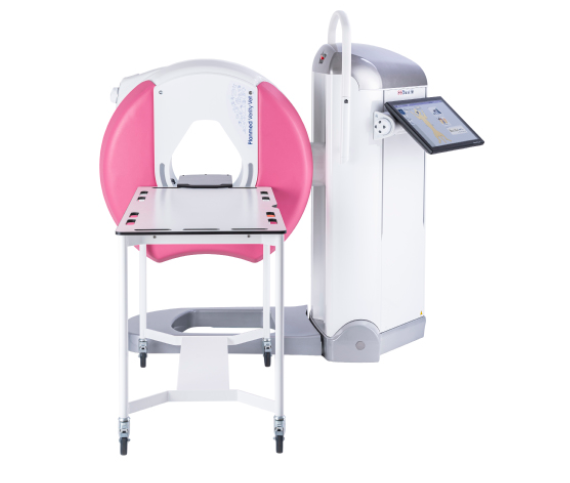

Planmed Verity® VET is High-resolution CBCT scanner for veterinary 3D imaging

The Planmed Verity® VET is a stand-alone cone beam CT scanner designed especially for veterinary imaging. It provides highly accurate submillimeter-resolution volumetric images of the animal’s bony structures, such as the teeth, skull and extremities. Its detailed 3D images enable accurate diagnosis and treatment planning.

Anode voltage 80–96 kV

Anode current 1–12 mA

Field of view, single scan 16 x 13 cm

Field of view with stitching 16 x 20 cm

Resolution 0,2 mm

Power input 100–240 V (single phase) 10–16 A (standard outlet)

Weight 350 kg (770 lbs)

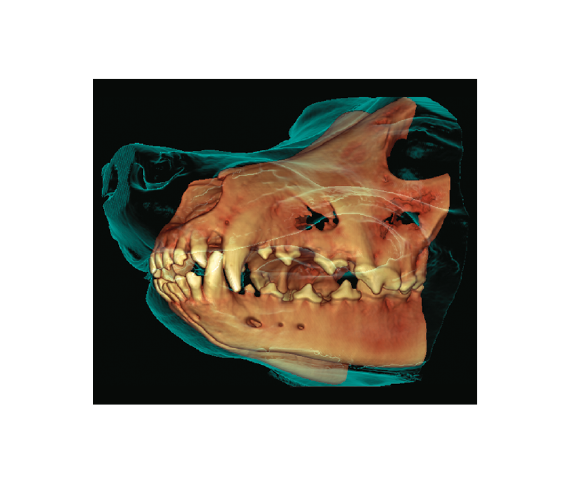

Planmed Verity® VET provides highly accurate submillimeter-resolution 3D images of the patient’s anatomy. The CBCT scanner is designed to find even the smallest pathologies and fractures in the animal’s bony structures.

With Planmed Verity VET CBCT scanner, the patient’s teeth, skull and extremities are captured accurately in 3D for diagnosis and treatment planning. Although digital radiography and ultrasound devices are also helpful in treating patients, these imaging modalities are fundamentally limited compared to 3D imaging as they produce 2-dimensional projections of the 3-dimensional anatomy.

Furthermore, the innovative imaging protocols of Planmed Verity VET allows reducing the scanner’s already low effective patient doses without compromising diagnostic image quality.

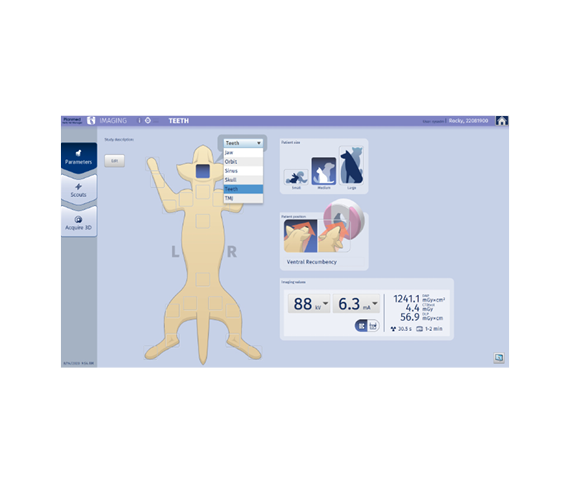

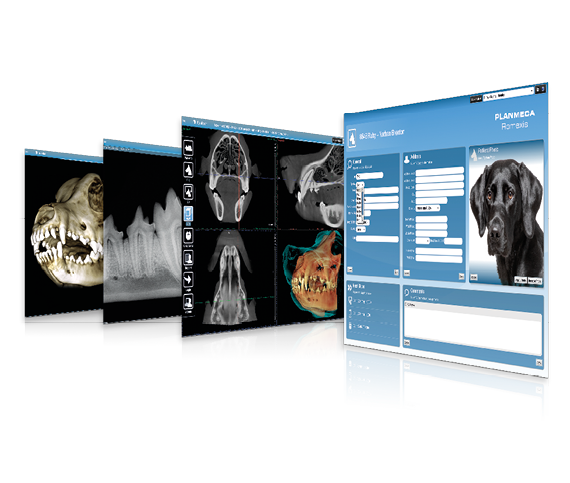

Planmed Verity VET is equipped with an easy-to-use graphical user interface and accompanied by a dedicated workstation for viewing the captured images from all angles in Planmeca Romexis® veterinary imaging software. The mobile positioning table of the scanner enables precise, fast and effortless image acquisition of the patient’s teeth, skull and extremities.

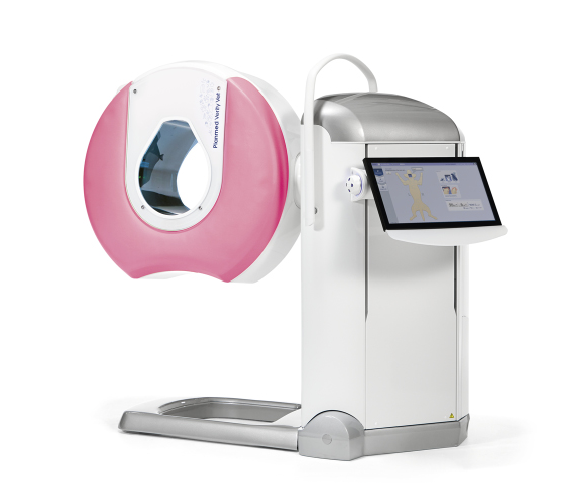

The easy-to-move and compact Planmed Verity VET scanner brings 3D imaging directly to where the patient is and can be accessed easily when needed. When not in use, the mobile scanner is easy to move around and store in another location. Its mobility also enables flexible room design solutions even when space is limited.
