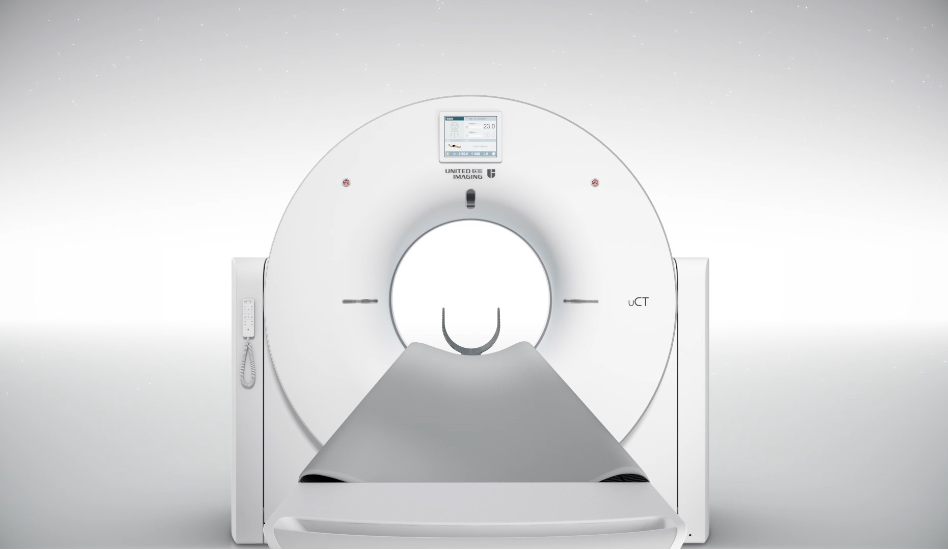

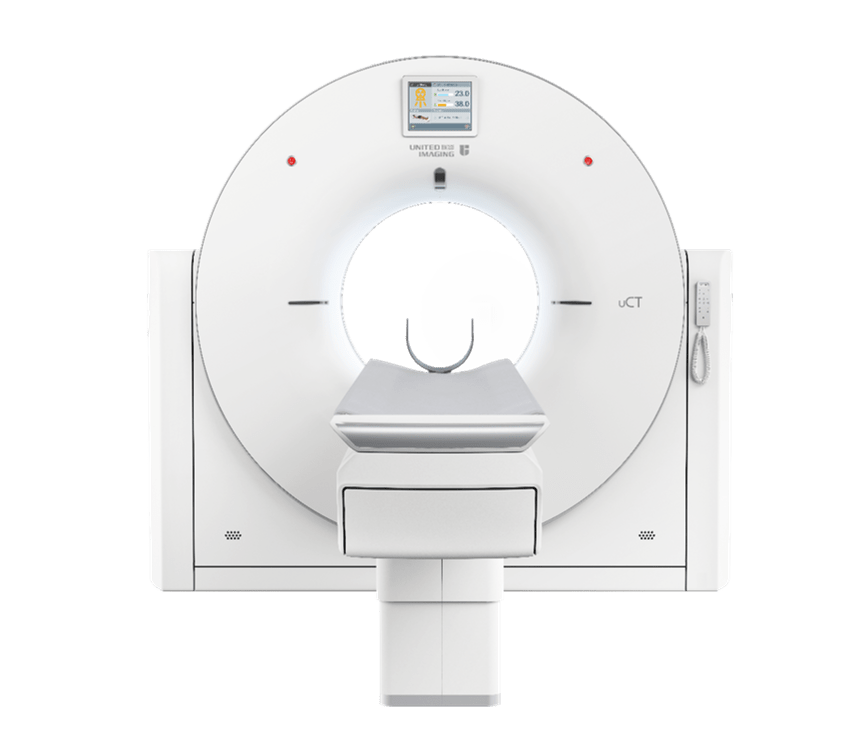

uCT 520 is designed to bring customers greater access to advanced technologies. The system also shows excellent financial performance with reliable components and multiple integrated advanced applications.
- Intelligent and automated operations for personalized care
- Comprehensive dose control technologies to deliver optimized dose plans
- Reducing total cost of ownership for operation
* Innovative Z-Detector :-
- Gadolinium oxysulfide (GOS) scintillator provides a fast and high conversion efficiency of X-rays.
- Ultra-low Noise Design
- Fine Sampling

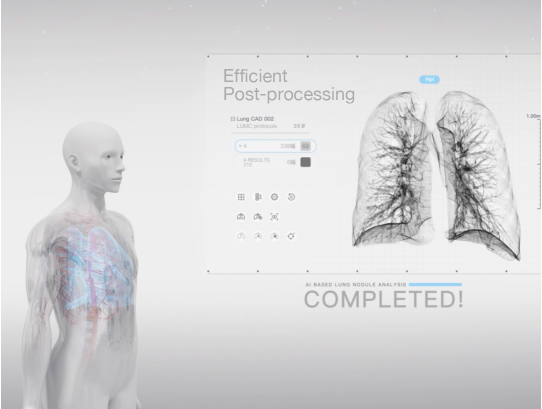

- The uCT 520 provides advanced post-processing applications for improved diagnostic confidence.
- EasyScan: Intelligently plans the exam for individual patients.

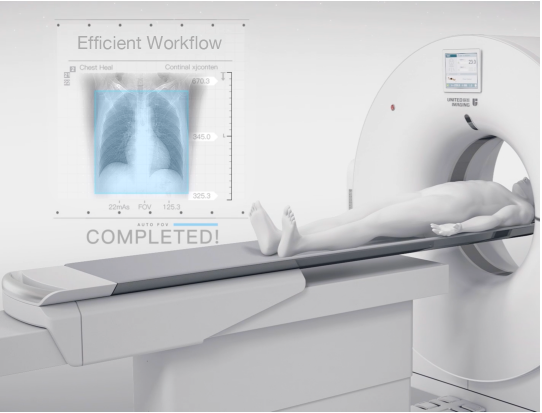

- EasyLogic: Minimizes the waiting time between operation procedures and accelerates CT exam workflow significantly.
- Real 3D Cone Beam Reconstruction
- KARL 3D Iterative Denosing
- 70kV Scan Mode
- uDose 3D Dose Modulation
- Lightweight CT tube designed for easy serviceability.
Self-cleaning carbon brushes for high slip-ring reliability.
- Gantry Tilt , Up to ± 30˚ physical gantry tilt is available with uCT 520
- Easy-Logic Intelligent Prediction Platform
- uECO mode saves 30% of power consumption compared to conventional standby modes.
* Technical Details :-
Tube anode storage capacity:2 MHU
Detector:Z-Detector
Number of detector rows:40
Max. slices generated per rotation:80*
Rotation time:0.75 s/360°
kV settings:70,80,100,120,140 kV
Generator power:42 kW
Aperture:70 cm
Table load:205 kg
