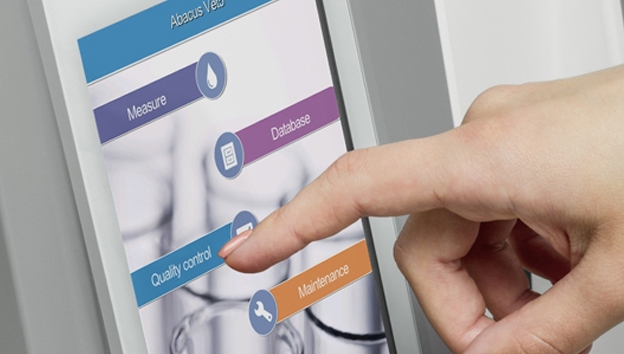

The Abacus Vet5 features a large touch screen and an intuitive user interface to provide an optimal solution for veterinary clinics and practices which require a high quality hematology analyzer.
Key Features and Benefits
Easy to use – With its large capacitive touch screen and user-friendly interface allows accurate data entry and monitoring of results and histograms enabling fast and efficient operation. Results can be retrieved via an on-board printer or an external printer. For those practices/clinics requiring it the system can easily connected with a host computer via the HL7 connection or via the serial communication port.
Convenient – Its compact size and associated reagent pack mean that the system does not need much space and storage and shipping of reagents is simple.
High performance - The Abacus Vet5 offers 5 part differential WBC results on Dog, Cat, Cattle, Horse, and 3 part differential WBC results on Mouse, Rat, Rabbit, Ferret, Sheep, Goat, Pig, Guinea Pig and Primate.
Reliable and efficient- Each Abacus Vet5 analyzer is almost maintenance-free resulting in minimal downtime and can store up to 5000 results.
* Specifications :
- Throughput : Up to 25 samples/hour
- Parameters : 24 hematology parameters, including 5-part WBC differential: WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, BAS%, RBC, HCT, MCV, RDWcv, RDWsd, HGB, MCH, MCHC, PLT, PCT, MPV, PDWcv and PDWsd
- Volumetric Impedance measurement
- Sample volume : 25/50 μl of whole blood in 3/5 part mode
- Sampling method : Open tube system
- Sample profiles:
Five-part mode:Dog, cat, horse and cattle
Three-part mode:Mouse, rat, rabbit, ferret, pig, sheep, goat, guinea pig and primates
- Reagents:
Reagent pack containing Diluent Vet (10L), Lyse Vet (0.3L), Diff Vet5 (0.8L), Cleaner (0.3L) and Rinse Vet (0.5L)
Diatro•Vet5 Reagent Pack:Up to 200 measurements*
- Hardware key protected pack
- Screen : Capacitive 8" (173 x 104) LED backlit touchscreen, color graphics LCD
- Data storage capacity : Up to 5000 results, including histograms
- Built in thermal printer
- Multilingual user interface
- Optional barcode reader
- Size : (Width x Depth x Height): 32 cm x 28 cm x 37 cm, 12” x 11” x 15”
- Weight : 13 kg, 29 lbs
