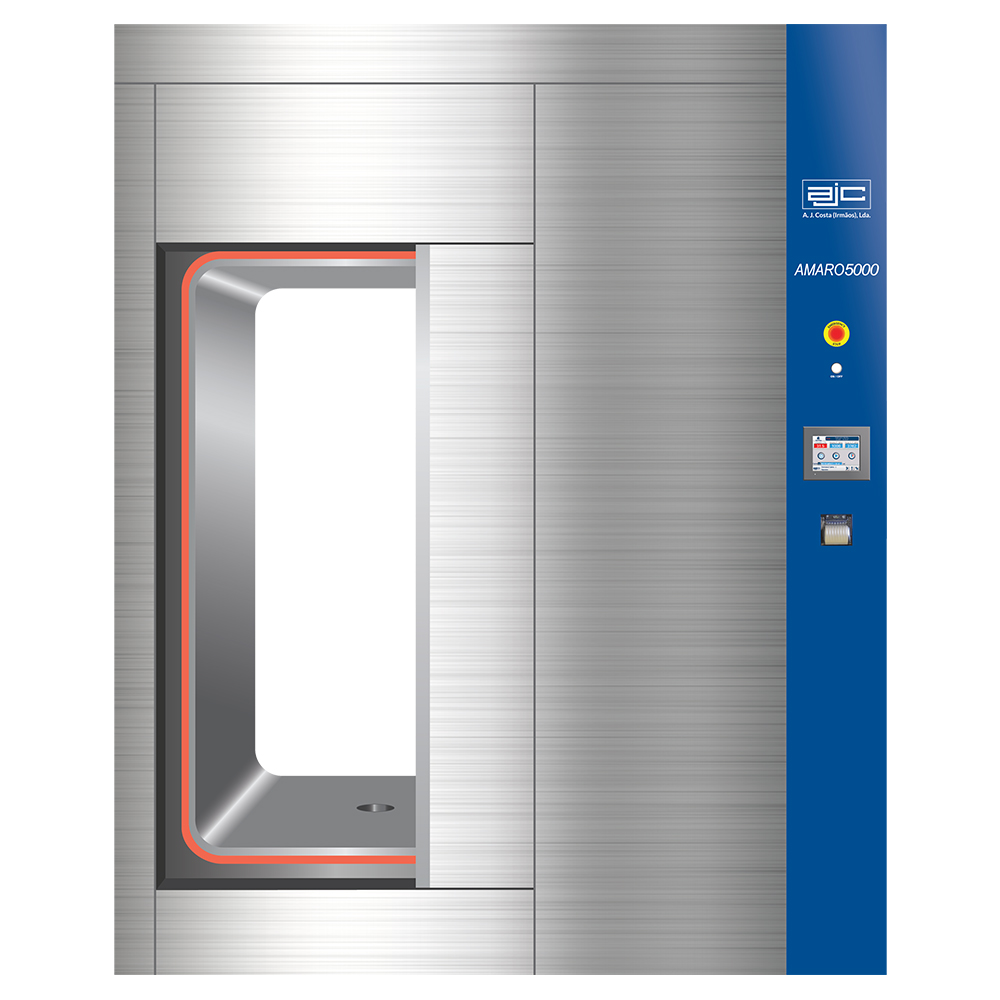

AMARO 5000 HORIZONTAL
They are steam sterilizers designed for large hospitals and laboratories. Chamber and sleeve in stainless steel AISI 316L. The doors are automatic horizontal sliding and built in stainless steel AISI 316L. According to the customer’s specifications, the sterilizer can be installed with the chamber at ground level, and the installation site must be prepared for this purpose. No need for external loading/unloading carts. It can be installed normally.
Features :
-Integral steam jacket;
-Easy to perceive and handle touch screen (Man-Machine interface);
-Computerized command of cycles;
-Validated cycles for typical hospitalary loads;
-Counting of sterilizations performed;
-Real-time printing of cycle parameters;
-Safety-stop system for door movement in case of obstruction;
-Safety system against door opening in mid-cycle in case of power failure;
-Incorporated energy and water saving systems;
-Extended listing with errors associated to eventual cycle-specific failures;
-Chamber electrolytic polishing;
-Chamber and jacket in AISI 316L stainless steel;
-Equipment fully built in stainless steel, free of ferrous materials
-Optionally supplied with 1 or 2 sliding doors;
-Accurate pressure and temperature sensors.
Accessories:
-Exterior loading car;
-Rolling load platform;
-Load baskets;
-Silent air compressor;
-Water softener.
Programs/Cycles:
-Chamber pre-heating 134 ºC
-Wrapped textiles 134 ºC
-Wrapped instruments 134 ºC
-Instruments in containers 134 ºC
-Sensitive materials 121 ºC
-Prions & Quick 134 ºC
-Bowie & Dick 134 ºC
-Vacuum
External network connections:
Network Features
-ELECTRIC 3 ~ + N + G 400 V / 230 V 50 Hz 2,5 kW
-WATER Maximum pressure 6 Bar
Minimum pressure 3 Bar
Connection 3/4” BSP
-STEAM Maximum pressure 3,5 Bar
Minimum pressure 3 Bar
Connection 3/4” BS
-PNEUMATIC Maximum pressure 7,5 Bar
Minimum pressure 4 Bar
3/8” male connection
-DRAIN Material resistant to 100 ºC
Connection 2” BSP
- Capacity : from 625 Liter to 3150 Liter
