- (100% EO Gas Sterilizer)
Specifications :
- Model Name :
HG-700E·P
- Style :
- Single Door :
- Overall Dimension :
W1,255 x D1,652 x H1,880 ㎜
- Chamber :
W610 x D1,266 x H914 ㎜
W610 x D1,316 x H914 ㎜
- Weight :
Unit:1,058kg
Loading Car:65kg
Carriage:70kg

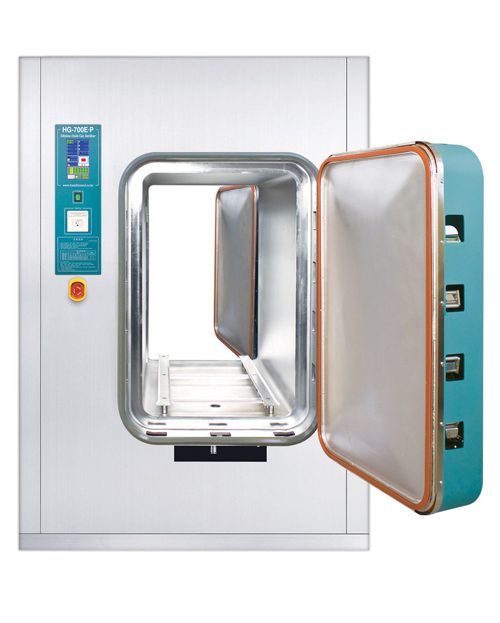

Double Door :
- Overall Dimension :
W1,255 x D1,984 x H1,880 ㎜
- Chamber :
W610 x D1,316 x H914 ㎜
Power Drive / Manual Drive
- Weight :
Unit:1,406kg
Loading Car:65kg
Carriage:70kg x 2
- Door Drive :
Power Drive / Manual Drive

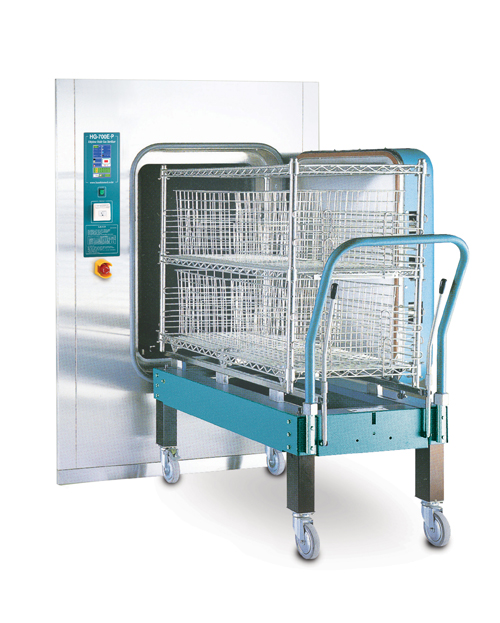

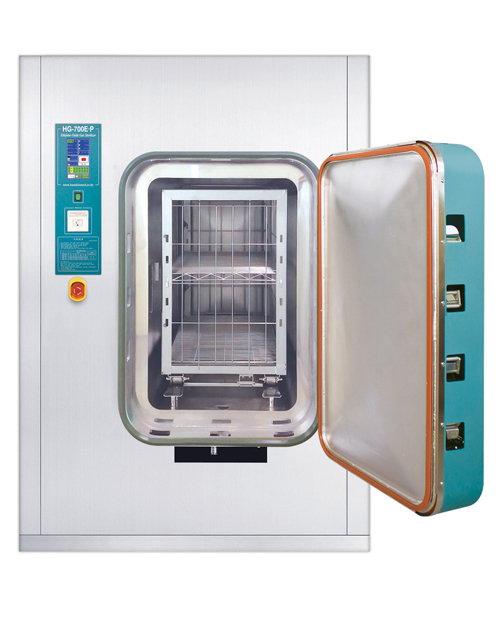

- Loading Equipment :
Loading Car:W525 x D1,200 x H822 ㎜
Carriage:W485 x D1,490 x H565 ㎜
- Sterilant :
100% Ethylene Oxide(EO), Gas Cartridge type (Gas Weight; 170g x 2ea)
- Water Source :
Pressure; 1.5~3.0 bar
- Power Source :
AC 220V, 3ph, 3wire, 50/60Hz, 35A
or AC 380V, 3ph, 4wire, 50/60Hz, 20A
- Power Consumption :
14.060W
- Controller :
Microprocessor
- Air Removal Device :
Waterring Vacuum Pump
- Display :
Touch Screen type Color LCD(LED back-light)
- Panel Printer :
Direct Thermal Printing type, Paper Roll; W58x∅40㎜ (length; 13m)
- Environmental Condition :
ㆍAltitude:above 2,000 m
ㆍTemperature Rang:+5℃ ~ +30℃
ㆍRelative Humidity:max. 80%
ㆍPower Supply:Fluctuation Range ±10%
ㆍInstallation Category (Overvoltage Category) : Ⅱ, Pollution Degree : 2
Features :
1. Convenient and Safe EO Gas Sterilization
This is the 100% EO gas sterilizer equipped with a large capacity of chamber for sterilizing the bulky or lots of medical devices, instruments and supplies at once by convenient way of only inserting two small disposable gas cartridge on the holder recessed in the chamber wall.
The sterilization and aeration process are all completed in the chamber under negative pressure, therefore leakage of EO gas in the working area can be fully prevented.
2. Various Cycle Programs and Self-diagnosis Function
4 kinds of sterilization cycle program and the vacuum leak test cycle program are installed in the sterilizer and the operator can select a proper cycle program according to the type of materials or items to be sterilized and sterilize them conveniently.
If an error has occurred during operating the sterilizer, the error code is displayed on the touch screen accompanying an audible alarm and the cycle in progress is aborted at the same time automatically for the safety of workplace by the self-diagnosis program.
3. Cycle Execution Data Storing and Retrieval Function
At least 11 years of cycle execution records are automatically stored on the SD(secure digital) memory card of the control unit. The user can search and check the results of a cycle performed in the past by input the date performed or cycle count number on the touch screen, and print out the record by the built-in panel printer for using as an evidence data of sterilization quality.
Especially the communication program for multi user which supports the ubiquitous function is provided as an optional specification, and all the process informations occurred during operating of the sterilizers being networked are displayed on the client monitors in real time and stored in the memory unit for the history search by the network composed of LAN, DB Server, Client. (optional specification)
4. Easy and Convenient Sterilizer Operation
Touch screen type color LCD allows user to operate the sterilizer more easily and quickly by touching the function buttons(pads) on the screen, and also to check the state of cycle progressing such as the actual temperature, pressure and humidity in the chamber etc. conveniently in real time on the screen.

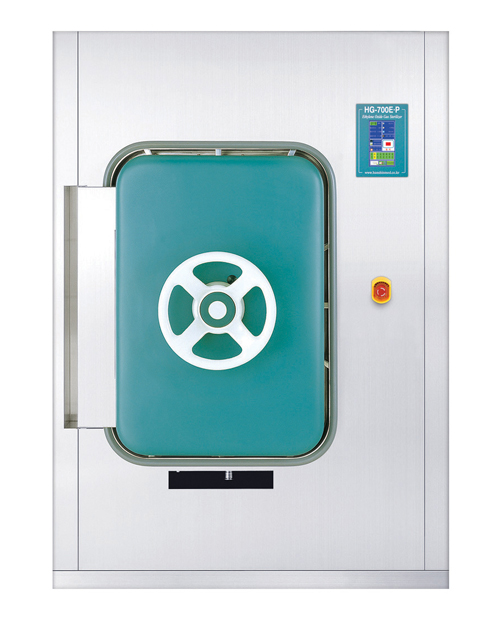

5. Door with Excellent Safety and Sealing
The door is operated on the control panel by manual or automatic(manual combined use), and the door opening and closing device is a radial lever method, which is excellent in safety and sealing function of the door. In case of automatic door failure or power failure, the door can be operated manually using the hand-wheel without any mechanism or procedure.
6. Printing of Cycle Performance Record
The built-in panel printer prints out the cycle performance record for analyzing the results of sterilization and keeping as a quality evidence and traceability.
