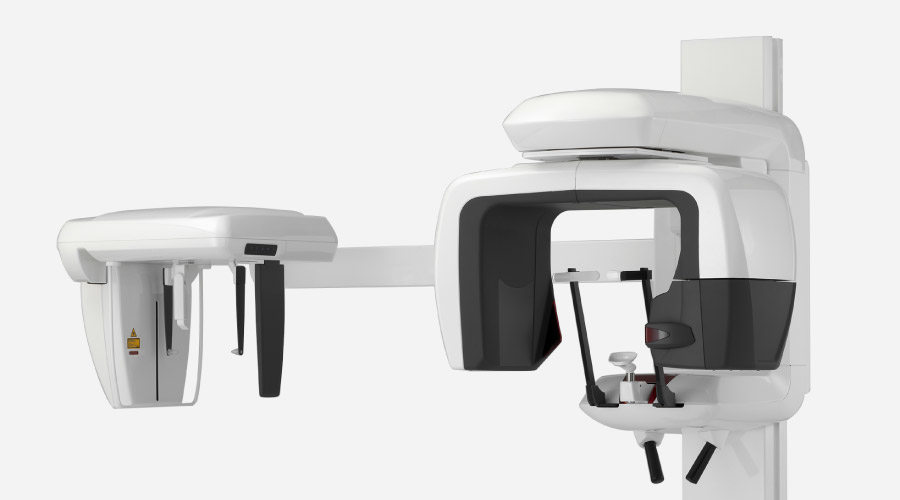

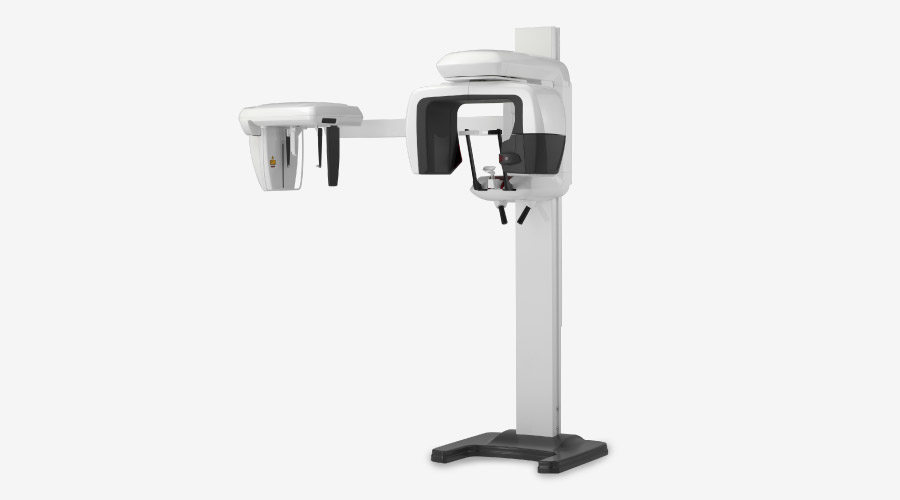

Veraviewepocs 3D R100 has changed the shape of 3D. This unit's groundbreaking and patented 3D Reuleaux Full Arch fields of view (FOVs) provide a unique shape for full arch imaging. With 8 field of view options and Morita's world renowned image quality, Veraviewepocs 3D R100 is suitable for a wide variety of dental applications including implant planning.
*3D Reuleaux Field of View
*Various Fields of View
*High Resolution Images with Dose Reduction Feature
*Easy 3D Positioning
*3D Images for Implant Planning
*Numerous clinical cases

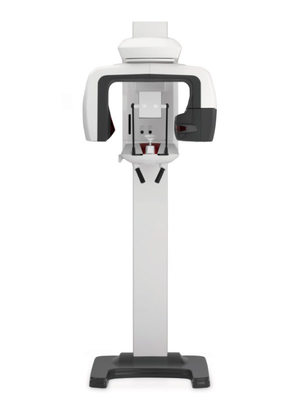

-Panoramic:
-Product name:
Veraviewepocs 3D
-Model:
X550
-Type:
Veraviewepocs 3D R100 Pan
Input voltage
EX-1:AC 120V 60 Hz
EX-2:220/230/240 V 50/60 Hz
-Power consumption:
2.3 kVA

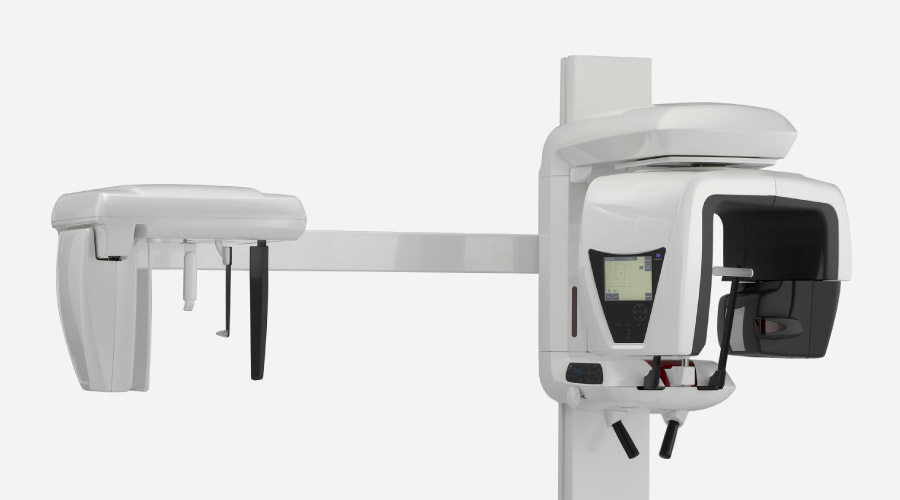

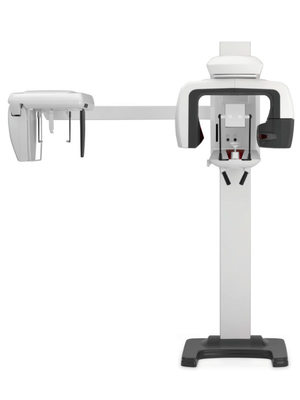

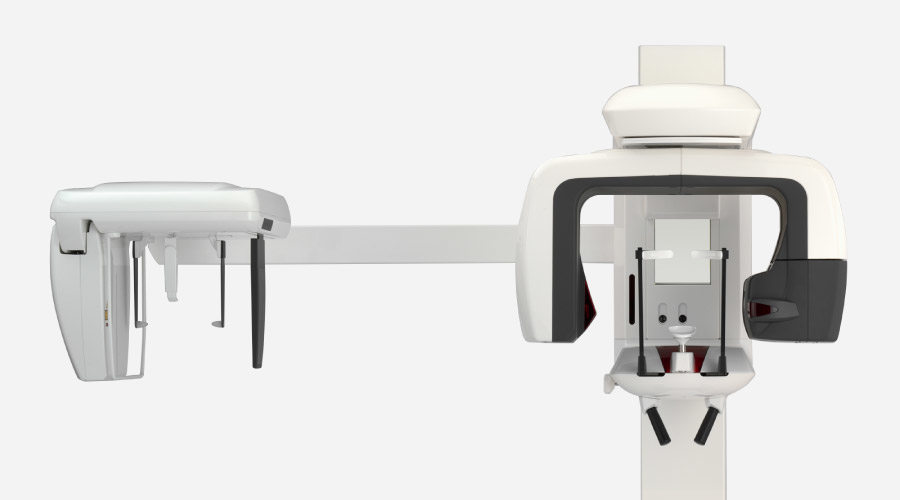

*Panoramic/Cephalometric:
-Product name:
Veraviewepocs 3D
-Model:
X550
-Type:
Veraviewepocs 3D R100
Pan/Ceph
-Input voltage:
EX-1:AC 120V 60 Hz
EX-2:220/230/240 V 50/60 Hz
-Power consumption:
2.3 kVA
"X-ray generator"
Panoramic & Panoramic/Cephalometric
-Tube voltage:
60-80 kV (depending on exposure mode)
-Tube current:
1-10 mA (depending on exposure mode)
-Effective focal spot:
0.5 mm

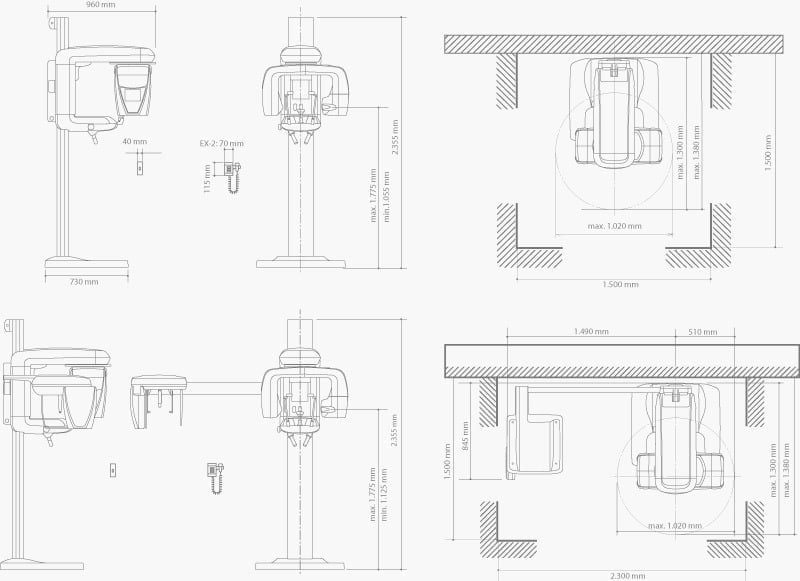

"Dimensions"
*Panoramic
-Main unit (W x D x H):
40.15" x 51.18" x 92.72"
(1,020 x 1,300 x 2,355 mm)
-Weight:
aprox. 419 lbs.
(190 kg)
*Panoramic/Cephalometric
-Main unit (W x D x H):
78.74" x 51.18" x 92.72"
(2,000 x 1,300 x 2,355 mm)
-Weight:
approx. 573 lbs.
(260 kg)
Hardware Minimum Requirements for Client PC (3D X-Ray)
-PC with Windows operating system
Windows XP and Windows 7 Professional
-CPU: Intel Pentium IV 3 GHz or more
-Main memory: RAM 2 GB or more
-Hard drive: 20 GB or more recommended
-Network: 100BASE-TX x2 or NIC of equivalent capacity
-Note on back-up of data
-The person bearing responsibility for the data back-up prescribed by law shall be the operator of the unit in question. The data- base must be backed up each working day by saving to some external storage medium.
