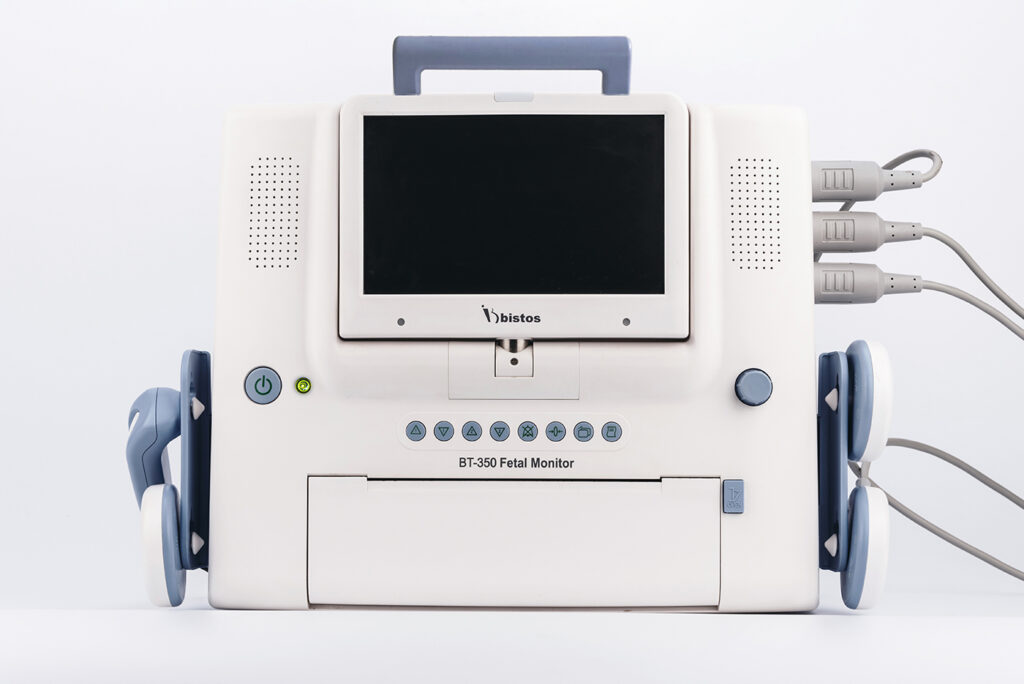

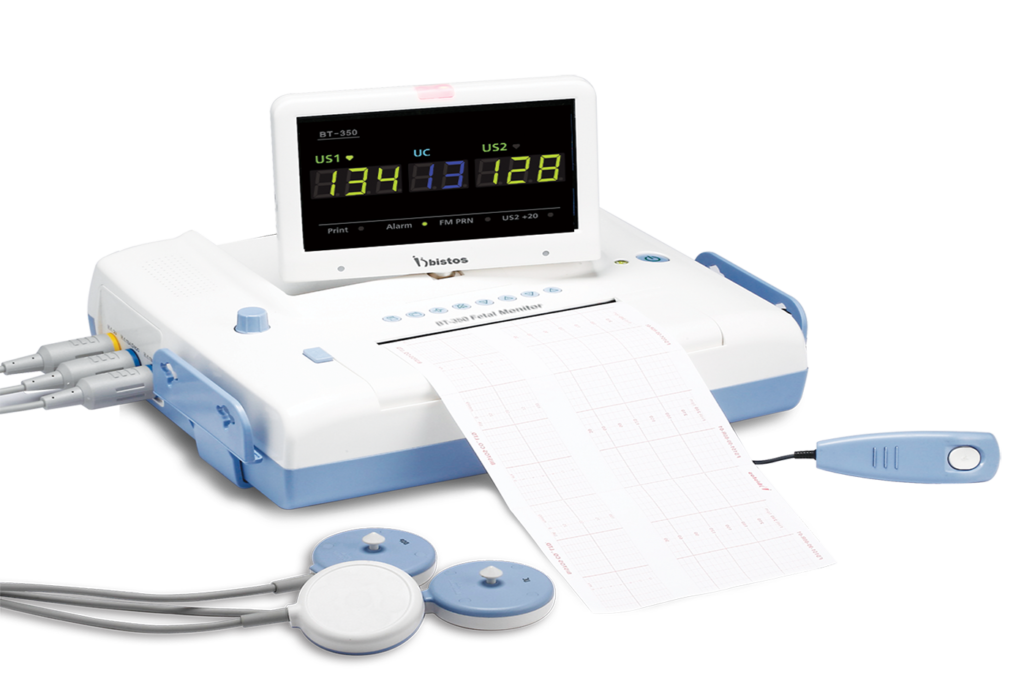

The Bistos BT-350E is an antepartum fetal monitor designed to measure and display Fetal Heart Rate (FHR) and Uterine Contractions (UC), providing essential data for assessing fetal health.
Key Features:
• Display: Features a 7-segment LED screen that displays numerical data for FHR and fetal movement.
• Twin FHR Monitoring: Equipped with dual pulsed Doppler probes, allowing simultaneous monitoring of two fetuses, making it suitable for twin pregnancies.
• High-Sensitivity Probes: Utilizes 0.985 MHz waterproof probes with nine crystal sensors, ensuring precise FHR detection.
• Uterine Contraction Measurement: Includes a pressure sensor to measure uterine contractions, aiding in comprehensive fetal monitoring.
• Data Recording: Capable of printing FHR, UC, and fetal movements on Z-fold thermal paper, with the same information displayed on the screen.
• Cross-Channel Verification: Implements cross-channel verification to prevent miscalculation of fetal heart rates.
• CTG Analysis: Provides cardiotocography (CTG) analysis, including baseline, acceleration, deceleration, and fetal movement assessments.
• Data Storage: Offers storage for up to 150 patient data entries, facilitating efficient record-keeping.
• Portability: Optional rechargeable Li-ion battery (14.8V, 2600mAh) provides up to 2 hours of operation without AC power, enhancing portability.
Technical Specifications:
• FHR Measurement:
o:Range: 30 to 240 bpm
o:Accuracy: ±2%
• UC Measurement:
o:Frequency Response: DC to 0.5 Hz
o:Measurement Range: 0 to 100 units
• Printer:
o Thermal array type
o:Print speeds: 1, 2, or 3 cm/min
• Dimensions: Approximately 326 mm (W) x 276 mm (D) x 96 mm (H)
• Weight: Approximately 3.5 kg
These features and specifications make the BT-350E a reliable choice for healthcare providers seeking accurate and efficient fetal monitoring solutions.
