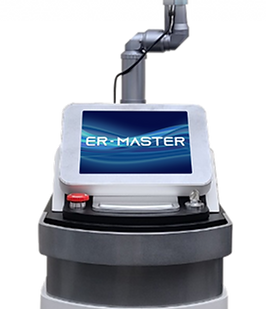

ER-MASTER
The Ultra & Long Pulsed Er:YAG laser delivers remarkable outcomes in treating skin lesions including age spots, scars, wrinkles, and more.
Ultra, Short, Middle, Long-pulsed Modes: for ablation
Long-pulsed Mode:for remodeling
ER-MASTER is an ultra- and long-pulsed Er:YAG laser with a 2940 nm wavelength, designed to treat skin concerns in the epidermis and upper dermis, including age spots, scars, wrinkles, and more.
With its four distinct modes—Ultra-, Short-, Middle-, and Long-pulsed—ER-MASTER offers a versatile and powerful tool to address a wide range of skin issues. It provides effective solutions for everything from precise superficial ablation to comprehensive skin remodeling.
Specification
Laser Type:Is: YAG
Wavelength:2940 nm
Pulse Duration Pulse Energy (Max) Repetition Rate:
-Ultra Pulse: 250 μs / 50-1500 mJ / 3-10 Hz
-Short Pulse: 350 μς / 50-1400 mJ / 3-10 Hz
-Middle Pulse: 600 μs / 50-1200 mJ / 3-7 Hz
-Long Pulse: 1000 μς / 50-1000 mJ / 3-5 Hz
-Spot Size: Standard Handpiece: 1-7 mm
-Fractional Handpiece: 10 mm (Optional)
-Display:10.4" TFT
-Cooling System :Closed cycle watercooling
-Power Supply :AC 220 V, 50/60 Hz
Application
-Aesthetic Surgical
Aged Spots
Solar Lentigines
Freckles
-Aesthetic Fractional
Acne Scars
Wrinkles
Large Pores
Skin Resurfacing
Stretch Mark
Skin Tightening
Laser Peeling
Skin Rejuvenation
