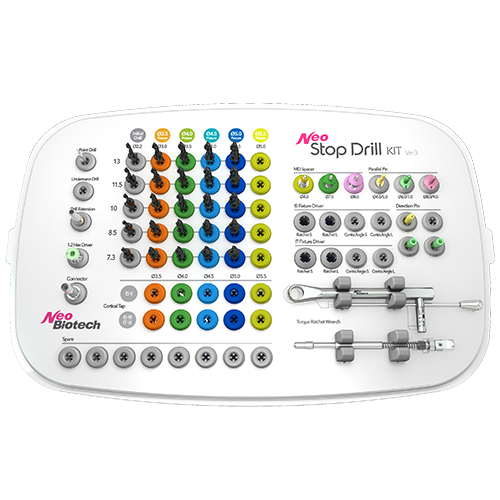

StopDrill Kit
Stop drills are stopper integrated surgical drills. Full drill line-up per length and diameter maximize convenience and requires no need of additional stopper installation.

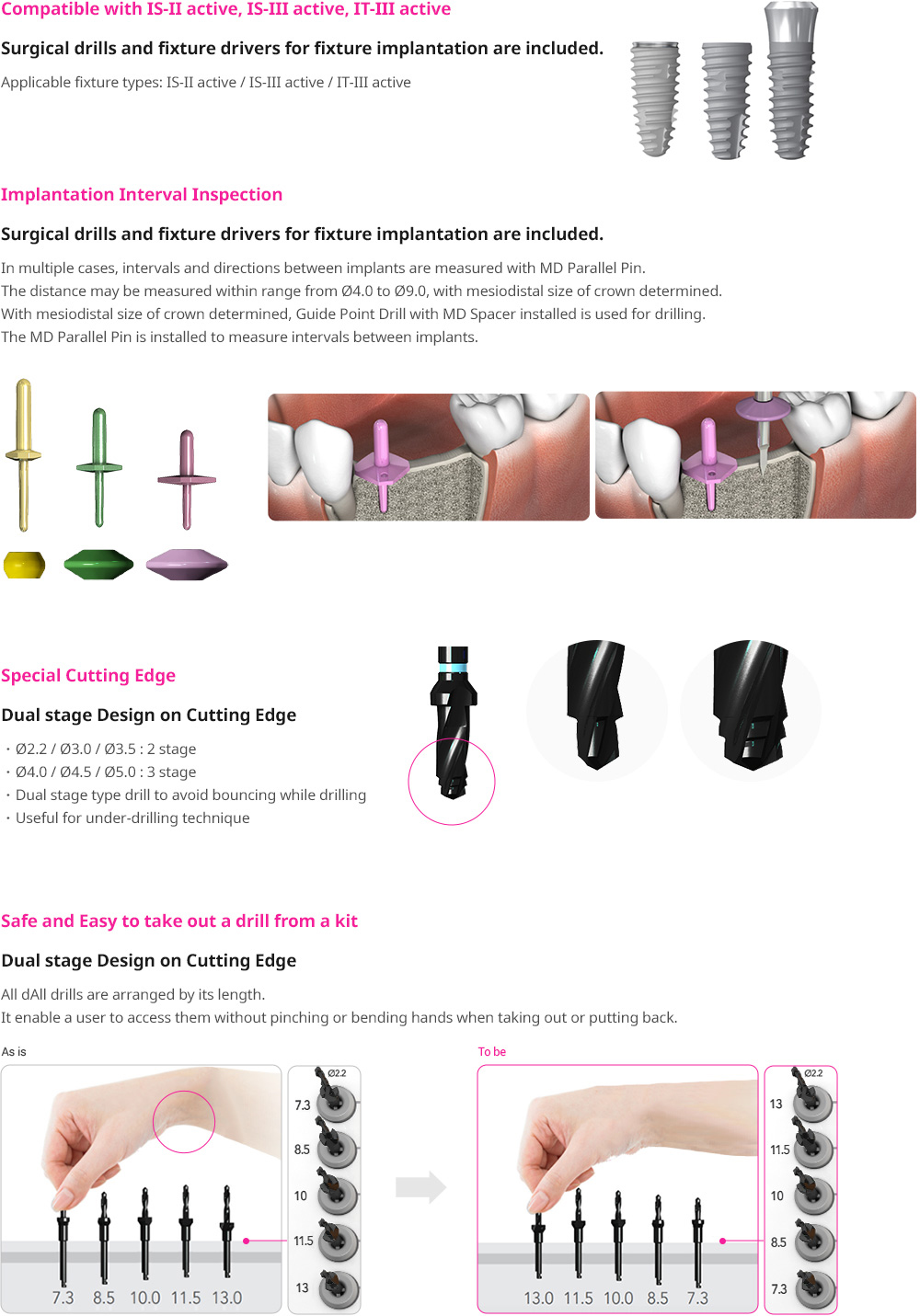

Features
-Compatible with IS-II active, IS-III active, IT-III active
Surgical drills and fixture drivers for fixture implantation are included.
Applicable fixture types:IS-II active/IS-III active/IT-III active
-Implantation Interval Inspection
Surgical drills and fixture drivers for fixture implantation are included.
In multiple cases, intervals and directions between implants are measured with MD Parallel Pin. The distance may be measured within range from 24.0 to 09.0, with mesiodistal size of crown determined. With mesiodistal size of crown determined, Guide Point Drill with MD Spacer installed is used for drilling. The MD Parallel Pin is installed to measure intervals between implants.
Special Cutting Edge
-Dual stage Design on Cutting Edge
-022/030/03.5:2 stage
-04.0/04.5/05.0:3 stage - Dual stage type drill to avoid bouncing while drilling
-Useful for under-drilling technique
-Safe and Easy to take out a drill from a kit
-Dual stage Design on Cutting Edge
All dAll drills are arranged by its length.
It enable a user to access them without pinching or bending hands when taking out or putting back.

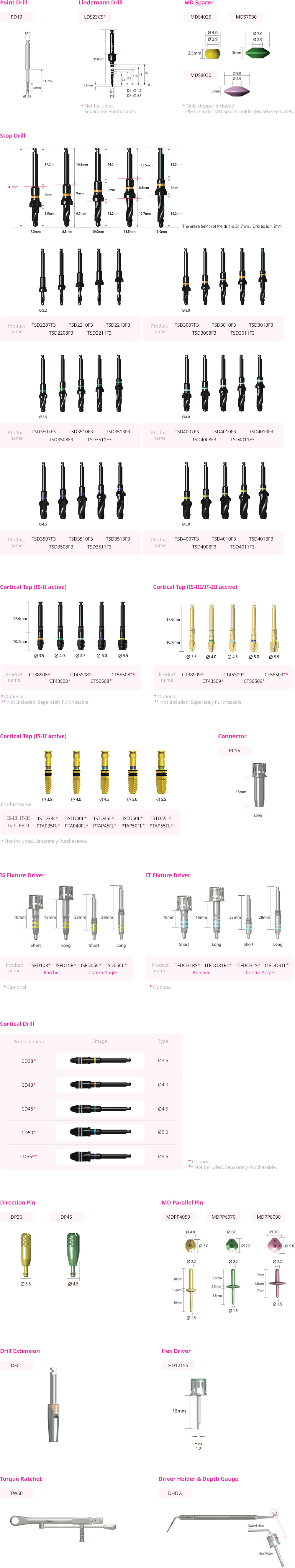

Components
- Point Drill
-Lindemann Drill
-MD Spacer
-Stop Drill
-Cortical Tap (IS-II active)
- Cortical Tap (IS-III / IT-III active)
-Connector
-IS Fixture Driver
- IT Fixture Driver
-Cortical Drill
-Direction Pin
-MD Parallel Pin
-Drill Extension
-Hex Driver
- Torque Ratchet
-Driver Holder & Depth Gauge

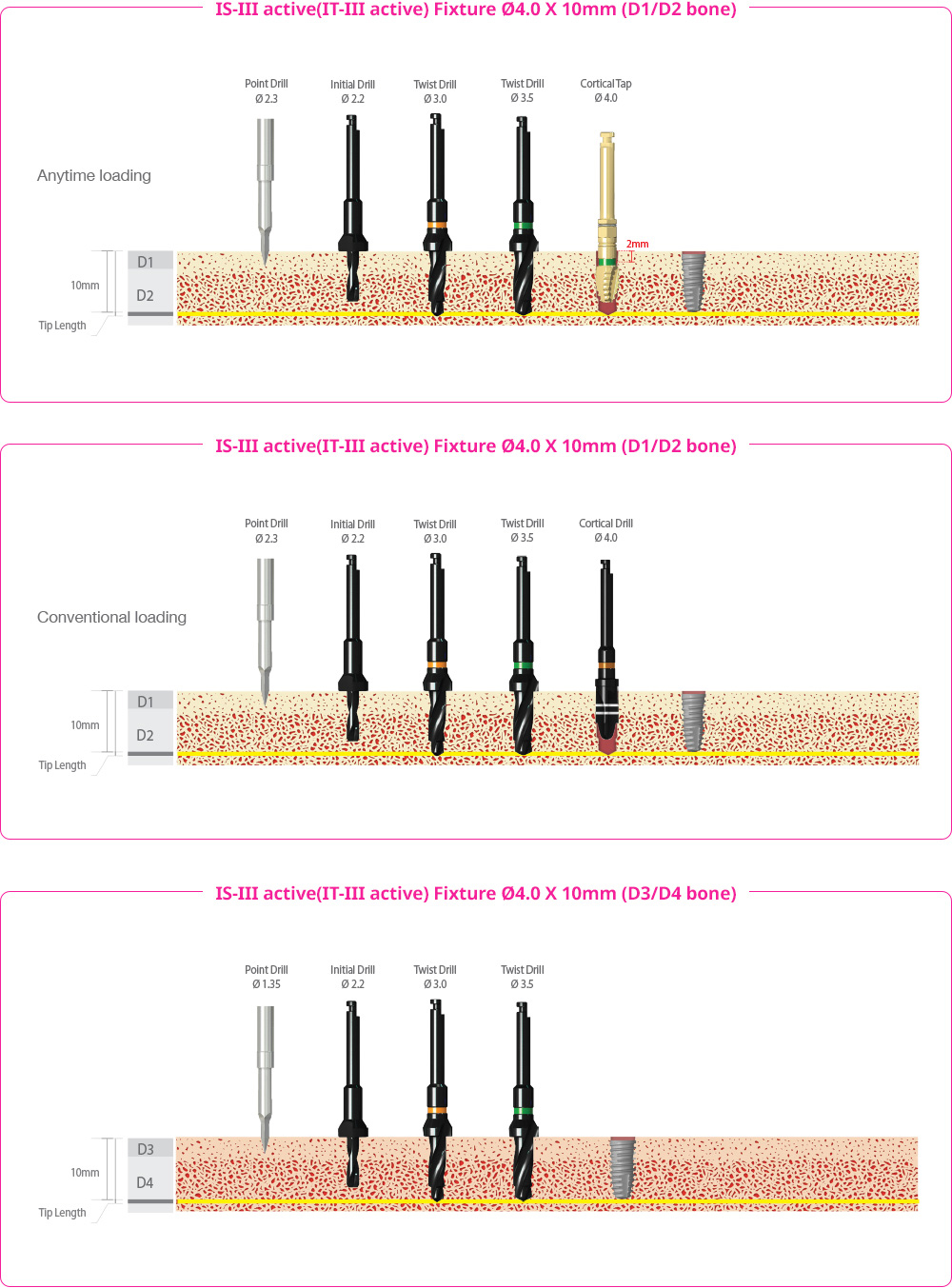

Drilling Sequence
IS-III active(IT-III active) Fixture Ø4.0 X 10mm (D1/D2 bone)
IS-III active(IT-III active) Fixture Ø4.0 X 10mm (D1/D2 bone)
IS-III active(IT-III active) Fixture Ø4.0 X 10mm (D3/D4 bone)
