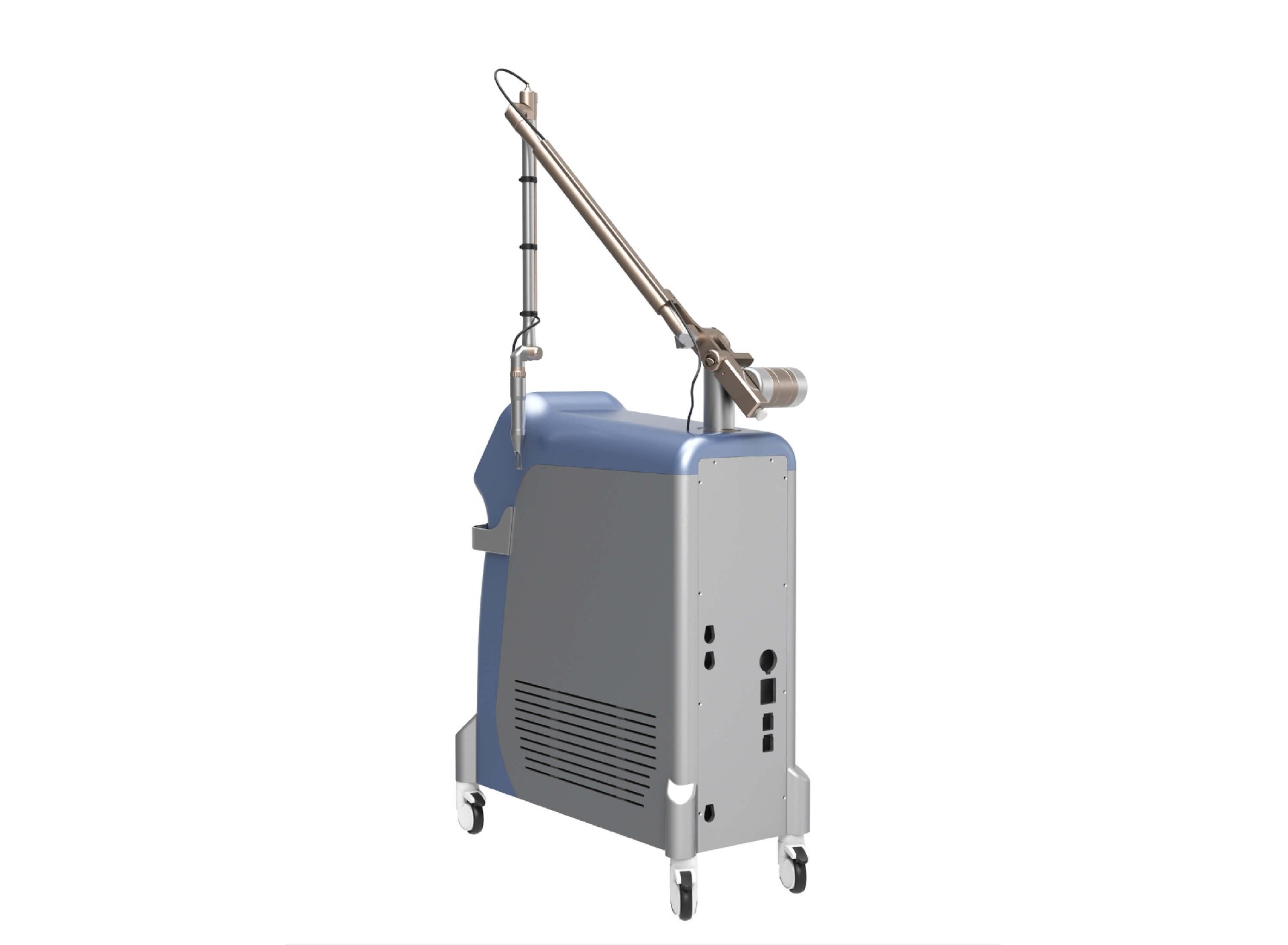

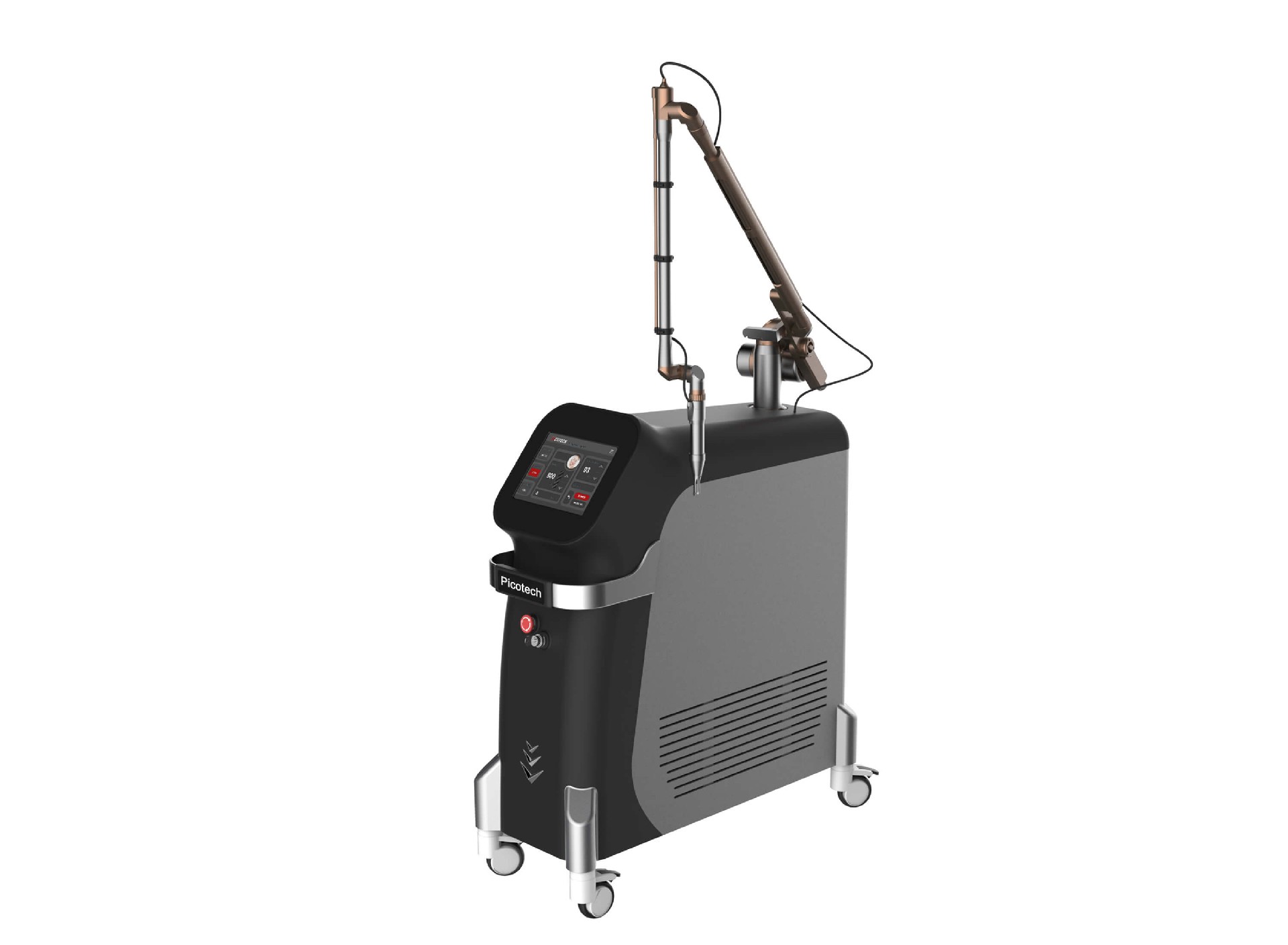

SP-2 2000PS
Technology：
Therapy of epidermis and dermis pigmentation
Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.
Therapy of the dilatation of capillary vessel
Utilizing the heat effect of the Nd: Yag Laser, the laser is absorbed by the hemachrome in the capillary vessel, then the capillary vessel become blocked and disappear.
Carbon peeling treatment
The 1064nm wavelength laser directly acts on the carbon cream, blasting the toner, and the toner absorbs pore oil and dirt. At the same time, the laser can stimulate the dermis to produce a large amount of collagen, thereby achieving the function of shrinking pores and whitening.
Indication:
-Dermis pigmentation: Birth mark, such as: Ota nevus, Ito nevus, black nevus
-Pigment, such as: sun-burn spots, age spots, speckle, freckle, senior fleck
-Man made pigment: Blue, black, red, brown tattoo, lips line, eyebrow line
-Epidermis pigmentation, Speckles: such as freckle, senior flecks, coffee spot......
-Vascular lentigines: vascular lesion, spider vessel, spider veins
-Skin rejuvenation with laser peeling
-Hair removal
Applicators
-532nm: Red, orange, brown, stronger exfoliation
-1064nm: Black, blue, deeper penetration
-585nm ： Yellow tattoo
-650nm ： Green tattoo
-Collimated handle ： Carbon peeling
-Cellular : Skin rejuvenation
-Fractional : Skin rejuvenation

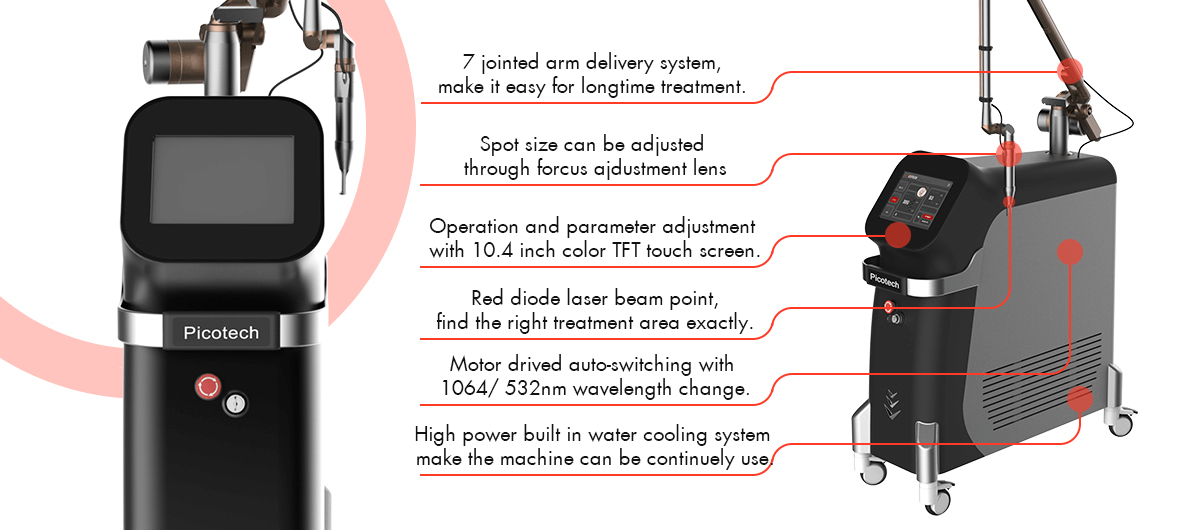

Advantages ：

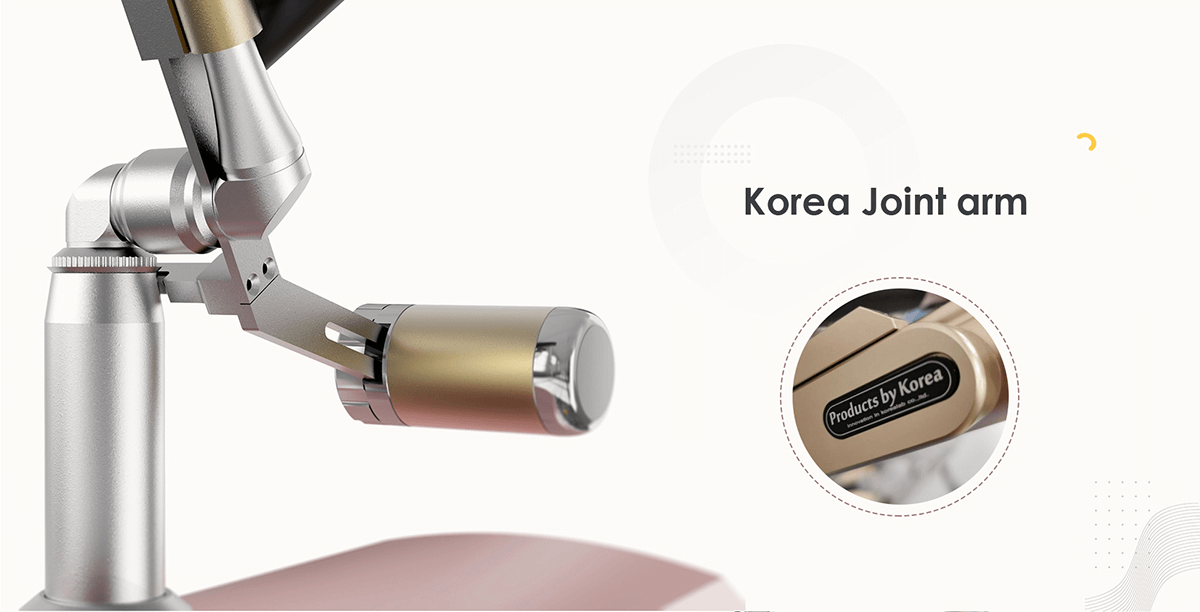

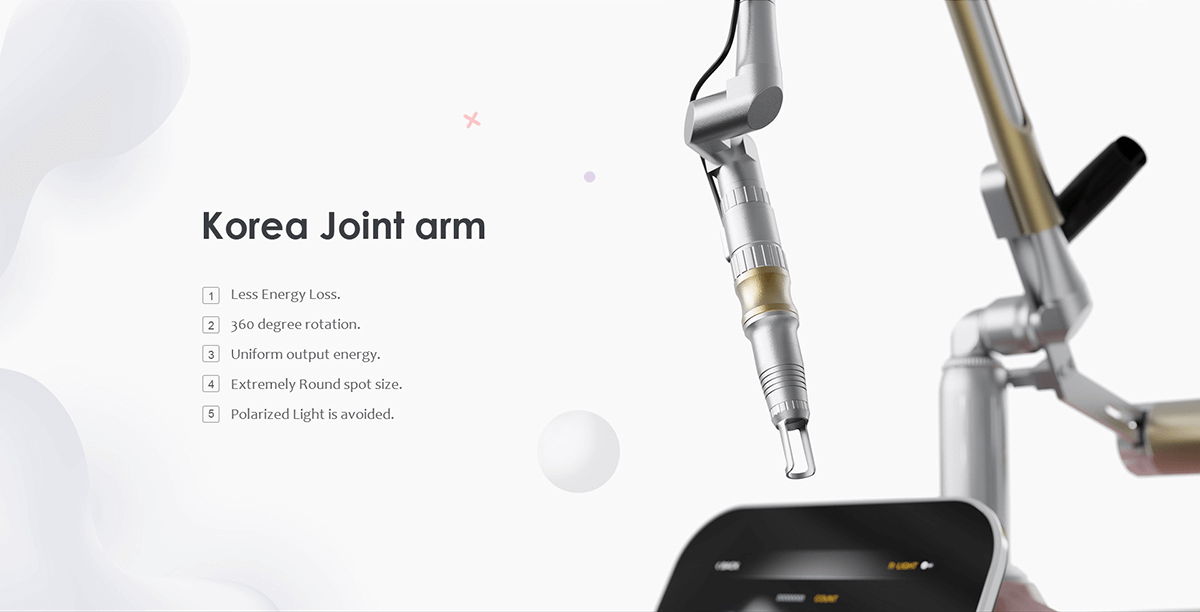

-7-joint Korea Arm
-Less energy loss
-360 degree rotation
-Uniform output energy
-Extramely round spot size
-Polarized light is avoided
-Uniform energy through the cellular mirror

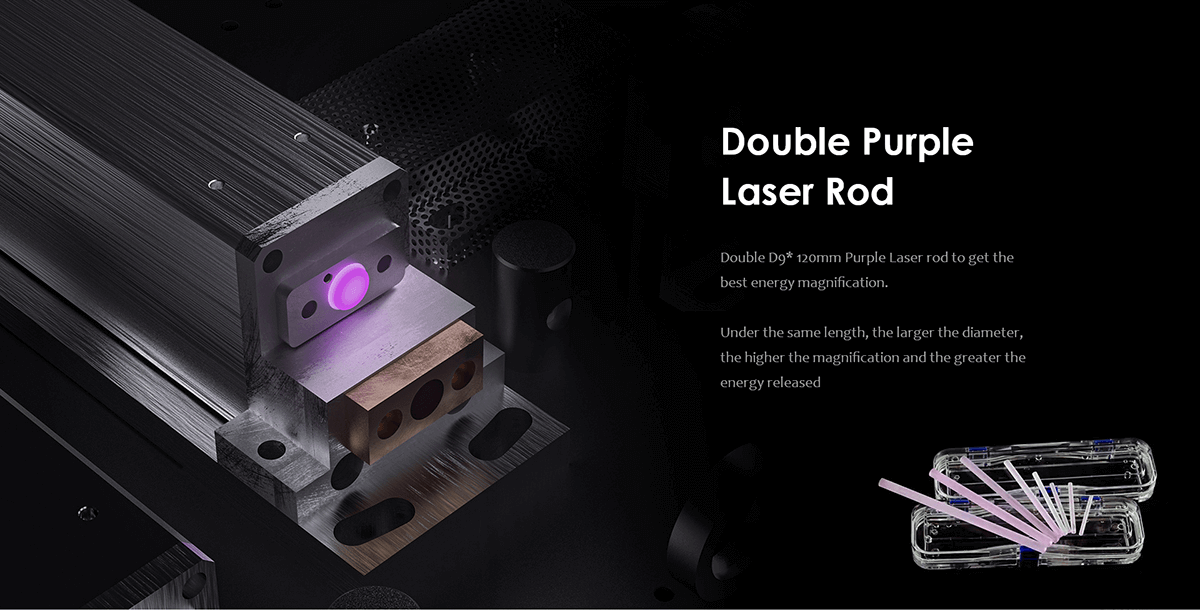

-Double purple rod : get best energy
Specification:
-System type :Picosecond
Wavelength:1064nm 532nm
Pulse Width:2000ps
Maximum Rep Rate : Short: Up to 10 Hz Long: 1hz
Spot size:2-10mm
Maximum Energy
-Power requirement:220V,10A,50/60Hz;
-Machine dimensions:680mm×400mm×820mm
-Net weight:80KG
-System type: Long pulse
Wavelength:1064nm 532nm
Pulse Width: SLP : 300µs MLP : 1 ~ 5000µs
Maximum Rep Rate:Up to 10 Hz
Spot size:2-10mm
Maximum Energy
SLP： 100-3000mj
MLP:1-30J
Light guide beam:650nm red laser
Maximum Energy
Single pulse: 1064nm: 100-800mj; 532nm:100-400mj
double pulse :
1064nm:100-1600mj,
532nm:100-800mj
- Light guide beam: 650nm red laser
-Power requirement:220V,10A,50/60Hz;
-Machine dimensions:680mm×400mm×820mm
-Net weight:80KG
