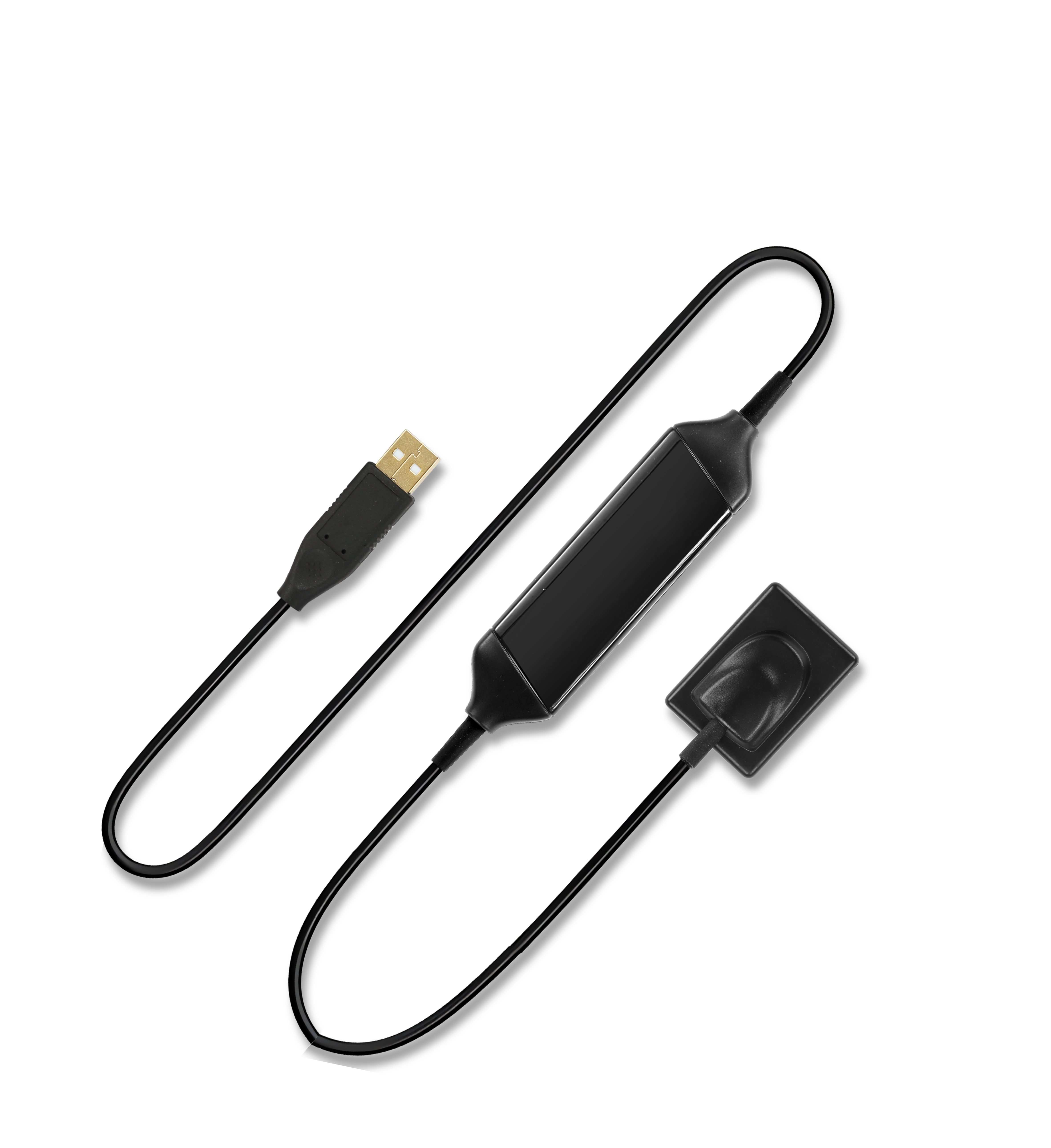

Dental Sensor with Repl Aceable cable
Brand
- Runyes Medical Instrument Co., Ltd
Model
- DR730
Manufacturing Country
- China
Quality Certificates
CE MARKING
ISO 9001
ISO 13485
Specification

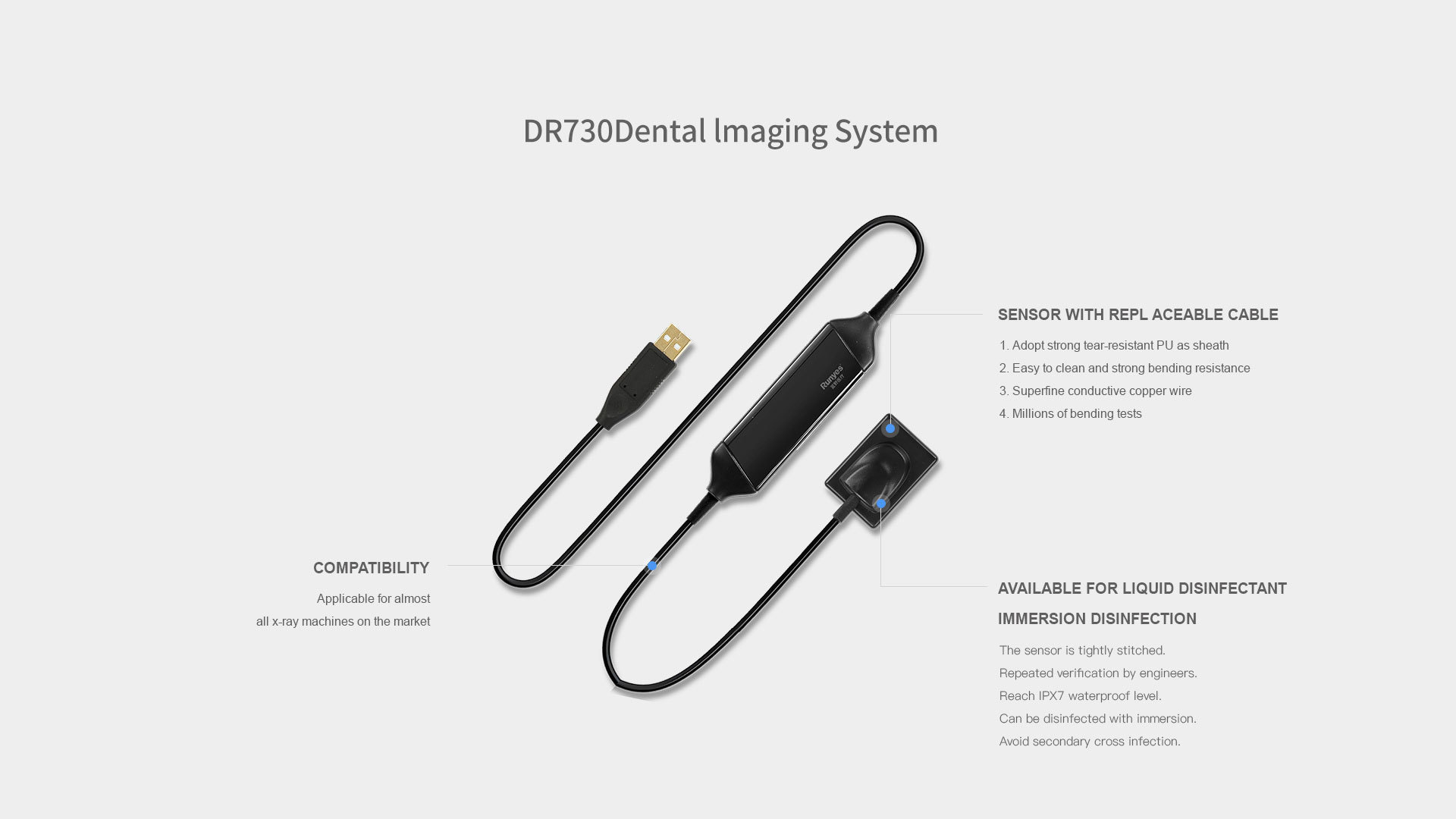

DR730Dental Imaging System
-COMPATIBILITY
Applicable for almost all x-ray machines on the market

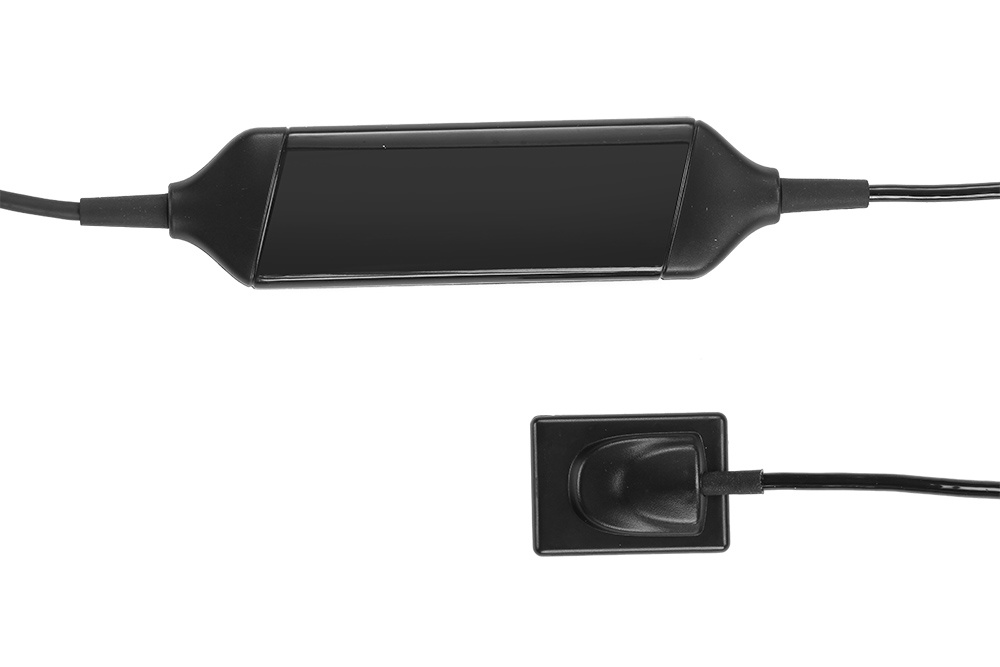

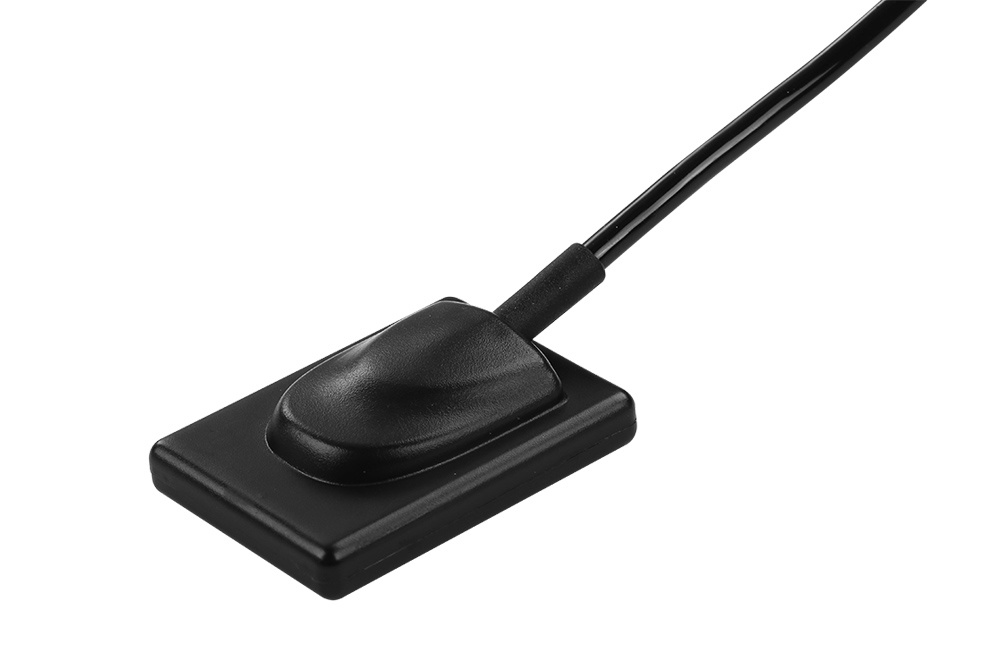

-SENSOR WITH REPL ACEABLE CABLE
1. Adopt strong tear-resistant PU as sheath
2. Easy to clean and strong bending resistance
3. Superfine conductive copper wire
4. Millions of bending tests

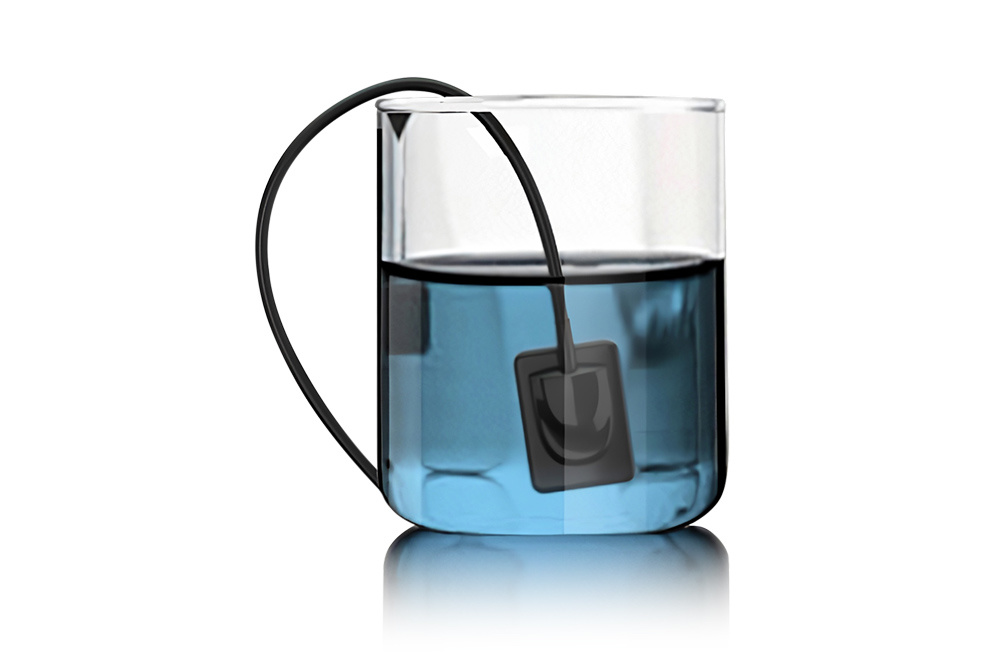

-AVAILABLE FOR LIQUID DISINFECTANT IMMERSION DISINFECTION
The sensor is tightly stitched.
Repeated verification by engineers.
Reach IPX7 waterproof level.
Can be disinfected with immersion.
Avoid secondary cross infection.
Product Parameters
Parameters
-Model DR730
-Sensor Type APS CMOS
-External dimensions 39mm × 27.5mm
-effective area 30mm × 22.5mm
-Scintillator GOS 675mm ²
-Pixel Size 18.5μm*18.5μm
-effective pixel 1.9M(1600*1200)
-Line pair resolution 27lp/mm
-Sensor thickness 6mm
-Grayscale range 0～4095
-Power 5.0 V(≥ 4.25V)
-Interface USB2.0
Minimum computer configuration requirements
-Configuration Minimum Requirements
-Processor 1.5GHz Intel chip processor and above
-Memory 4G and above
-Hard disk There is 1GB of space for software installation and 40GB of free space for using software
-Graphics Nvidia/ATI based graphics card, 256MB of RAM
-Display 1024x 768 minimum screen resolution; 32-bit color mode
-USB At least two USB2.0 interfaces should be available
(If it is a desktop, you must ensure that the two available USB2.0 interfaces are the interfaces behind the host)
-Operating System Windows 7(32-bit/64-bit) Windows 10(32-bit/64-bit)
