SLA Kit
Sins Lateral Approach kit is a surgical tool for sinus elevation by perforation lateral wall and lifting sinus membrane without any membrane tearing.
Features
MINIMALLY INVASIVE
• Minimal flap size
• Smaller window size than conventional techniques
• Instruments provide method of opening the lateral wall near the crest
SPEED
• Reamers designed to be used with conventional surgical motor handpiece at 2,000rpm
• Tapered trunk of LS reamer designed to control drilling depth up to 3.5mm without use of drill stops
COMPLETE
Kit provides a complete set of tools for performi

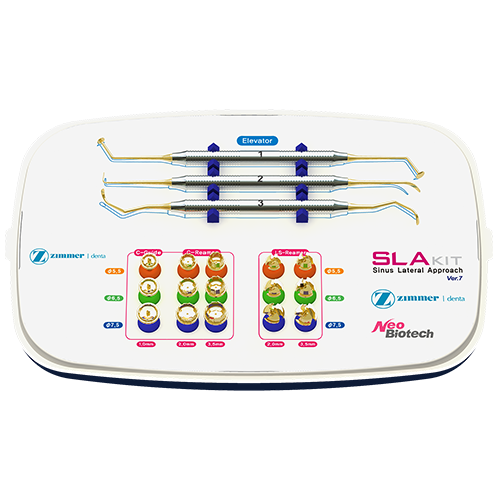

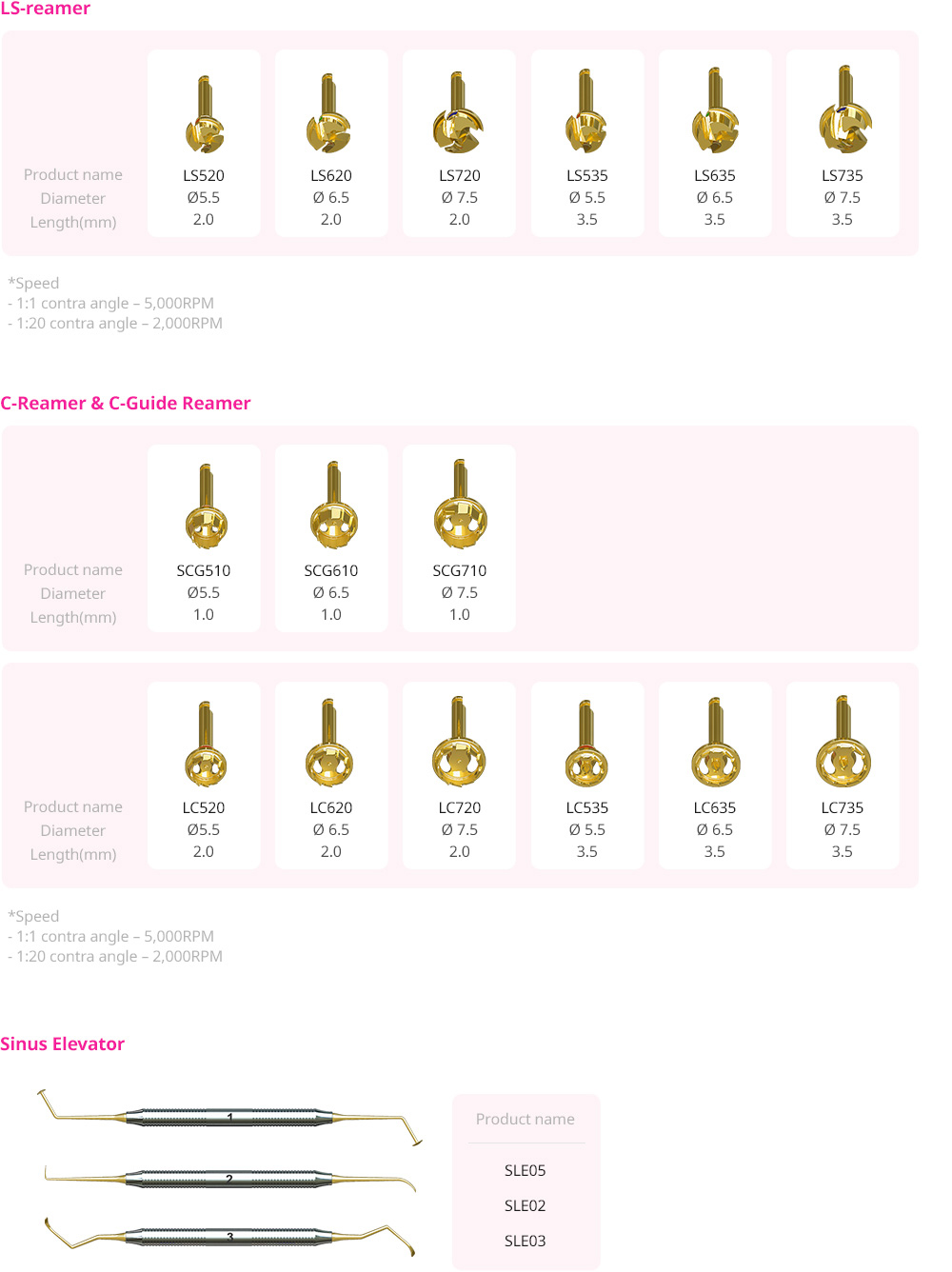

Components
-LS-Reamer
-C-Reamer & C-Guide Reamer
-Sinus Elevator
Procedures
1-Flap
• Open the soft tissue.
2-LS-Reamer

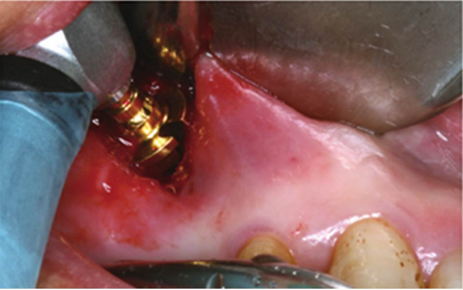

• Make a lateral hole with the LSreamer.
• Keep the drill upright and maintain a steady drilling motion; Both sides of the LS-reamer blade should be in contact with the bone while drilling.
• Continue drilling.
• Speed: 2,000rpm
• NOTE: C-Reamer can be used instead of the LS-Reamer if you wish to save a circular bone core disk from the lateral wall. 1 2 Bone graft
3- Bone Disk

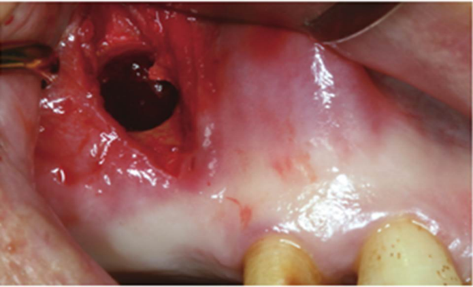

• The LS reamer will leave a thin bone disk. Detach sinus membrane
4- Detach sinus membrane
• #1 elevator is used to initiate detachment of the membrane in the mesial-distal area.
5- Elevate sinus membrane
• #2 elevator is used for detaching the membrane in the inferior area.
• #3 elevator is used for the anterior and posterior areas.
6- Bone graft
• Place bone graft material.
• Cover the lateral hole with a collagen membrane.
• Suture the soft tissue.
