-Optimal visibility
12.1” display with 1280 x 800, higher detail resolution
-Reduce delays
Prevents paper jams with patented paper outlet design
-Smooth operation
Quick zoom with a two-finger swipe on the full touch screen
-Quiet operation
Near-silent operation for less disturbance
-High clarity
Fully laminated display with reduced glare for improved visibility from various angles
-Built to last
Clear and uncompressed recordings even after 100,000m of printing
-Intelligent Guidance for Reliable Results

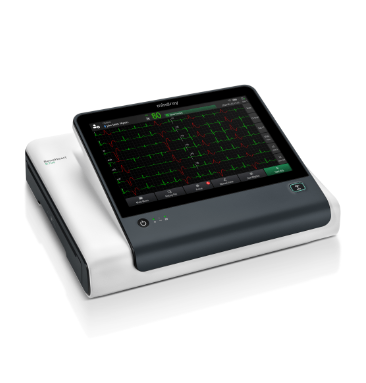

Designed with busy healthcare professionals in mind, Mindray BeneHeart R700 helps simplify ECG exams for staff across all departments and skill levels. Whether you're in the busy emergency department or a quiet ward, this smart ECG machine is adaptable to many clinical settings.
R700 offers fast, efficient 12-lead exams with a user-friendly interface, even for users who need to exam the right chest and posterior wall. It combines advanced technology into a compact, familiar design, improving accuracy for more reliable results; streamlining your ECG process to improve patient care.
-Visual Electrode Status Indicator
- Provide a visual guide for electrodes placement
- Detect the signal quality of electrodes, indicating any issues with red or yellow marks
- Automatically start ECG acquisition when the signal is good and stable. User does not have to press the button to trigger the measurement
-Additional Leads Guidance
When you need a right chest or posterior wall examination, BeneHeart R700 can provide guidance on adding more leads (V3R/V4R/V5R/V7/V8/V9) to help you complete the examination in order. Automatically modify the names of the added leads on the screen and in the report without manual modification.
-Faster Diagnosis with Intelligent Decision Support Tools
BeneHeart R700 helps to rapidly identify arrhythmias and acute chest pain. Intelligent clinical assistant tools can capture abnormalities at a glance and provide timely and accurate decision-making support for medical staff. Simplify the process, improve efficiency and see the detail in every heartbeat.
-Pacing Marker Channel
BeneHeart R700 can automatically detect the pacing signal and prompt whether the patient is wearing a pacemaker. Pacemaker signal will be marked in a separate channel for a clearer observation.
-Abnormal Heart Beat Capture
Abnormal waveforms will be marked in red if patient has PVC. You can freeze the waveform for easy review up to 30 minutes without missing any abnormal heartbeats.

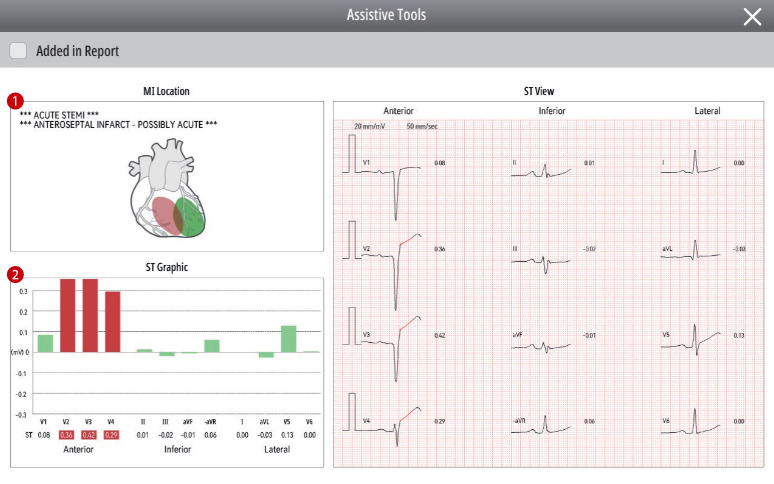

-ST Analysis Tools
BeneHeart R700 helps medical staff to promptly detect myocardial ischemia and myocardial infarction, ensuring patients can receive timely treatment.
- 1. Graphical indication of the location of MI.
- 2. ST measurements and changes are given in bar chart, making it easier to read.

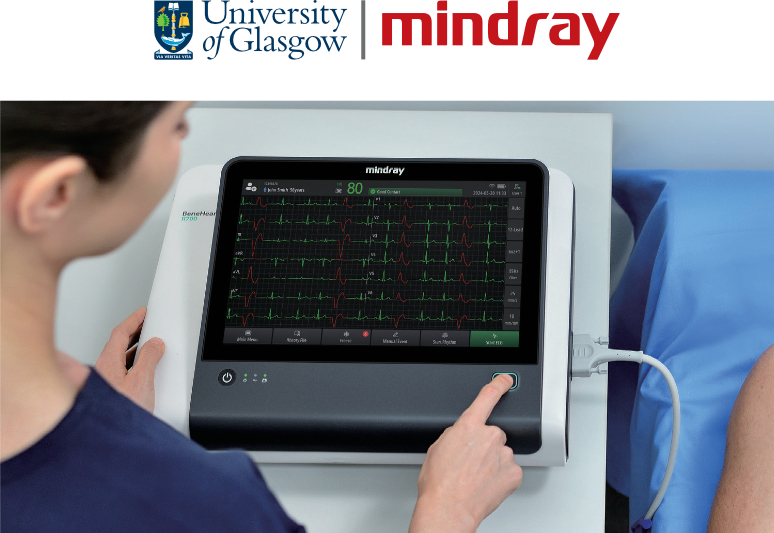

R700 supports both the University of Glasgow 12-lead ECG analysis program and Mindray 12- lead resting ECG analysis algorithm for adults and paediatrics, both of which provide accurate and reliable analysis references to give you more confidence in diagnosis.
The Glasgow algorithm is the first to be based on specific variables, including age, gender, race, medication, and class in order to maximise the accuracy of the ECG interpretation.
Mindray has accumulated and inherited more than 20 years of experience in the field of ECG analysis. It has used tens of thousands of clinical ECG data for development and iteration, passed the internationally authoritative CSE evaluation, and achieved more balanced algorithm performance (sensitivity & specificity)
Streamlined ECG Management for Enhanced Patient Care
BeneHeart R700 is the smart choice for ECG data management. Whether in the clinical physiology department or in a ward, its flexible connectivity solutions ensure seamless synchronisation of ECG data to hospital electronic systems. Simplify the process and improve workflow efficiency, so clinicians can spend more time with patients and less time on paperwork.
Secure Hospital-wide Connectivity
R700 supports different data output:
-U-disk, wired and wireless networks.
-Configured with HL7 and DICOM protocol, ECG data can be seamlessly shared with third--party ECG management system: EMR, HIS, PACS, etc.
-Equipped with Wi-Fi 6 module and WPA3 encryption protocol, R700 makes the data transmission faster and more secure.
Department-level ECG Management
For departments without a dedicated ECG management system, R700 is compatible with Mindray’s M-Connect™ solutions, providing.
-Integrated view of monitoring information and 12-lead reports.
-ECG reports comparison.

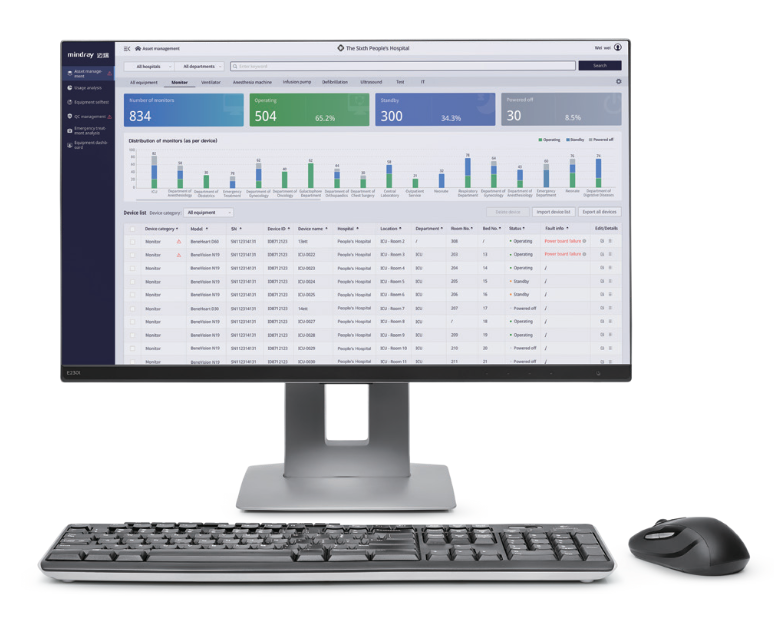

Cost saving device management
M-IoT obtains comprehensive device data to help biomedical engineers ensure the readiness of equipment.
-Device status monitoring and guidance for efficient maintenance.
-Battery capacity
-IP/MAC address for network access control
