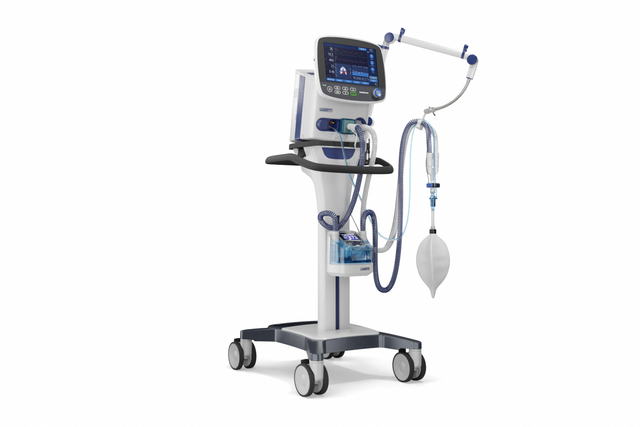

HAMILTON‑C3. The compact high‑end ventilator
Compact competence. The mobile high‑end ventilator
- Compact housing
- Turbine‑driven ventilator
- Integrated monitoring
On the big screen. Important ventilation data at a glance
- 12.1‑inch screen
- Configurable screen setup
- 52 monitoring parameters
- 72‑hour trends
- More than 1,000 words. Visualization of the lung condition
The Dynamic Lung panel displays lung compliance, airway resistance, and patient‑triggering in synchrony with the actual breaths.
Fiercely independent. No compressed air and battery powered
- Turbine‑driven ventilator
- Two hot‑swappable batteries
- Trolley with two oxygen cylinder holders
Wherever you need me. Turbine‑ driven for more flexibility
With its powerful turbine, the HAMILTON‑C3 is completely independent from a high‑pressure air outlet and external compressors. This gives you maximum mobility so you are free to move around the hospital.
* Technical data :-
Patient groups ::Adult/Ped, Neonatal
Dimensions (W x D x H) ::310 x 250 x 460 mm (ventilation unit)
560 x 640 x 1460 mm (incl. trolley)
Weight::Ventilation unit: 9.5 kg (21 lb)
Ventilation unit and trolley: 37 kg (81.6 lb)
Monitor size and resolution: 12.1 in (307.3 mm) diagonal
1280 x 800 pixels
Battery operating time::2.4 h with one battery
5 h with two batteries
Air supply::Integrated turbine
O2 connector::DISS (CGA 1240) or NIST
Connectivity::COM port, Nurse call (optional)
Loudness::43 dB in normal operation
