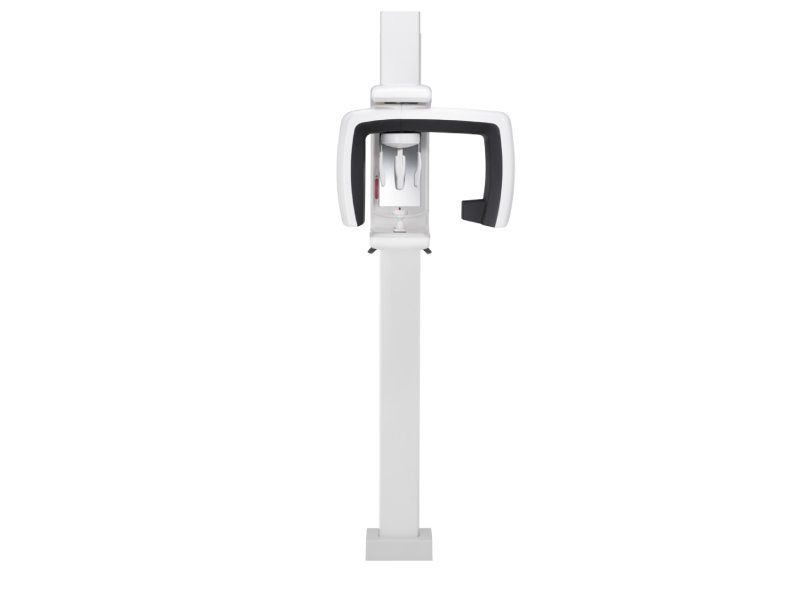

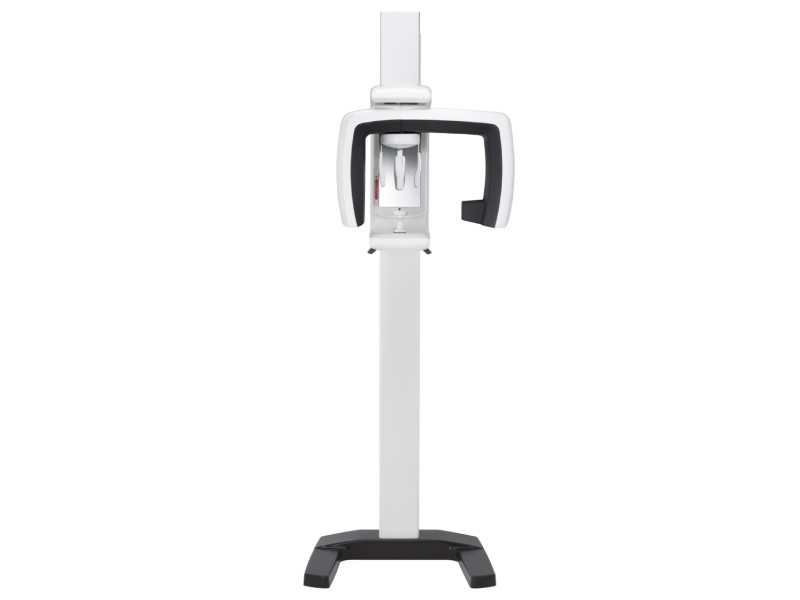

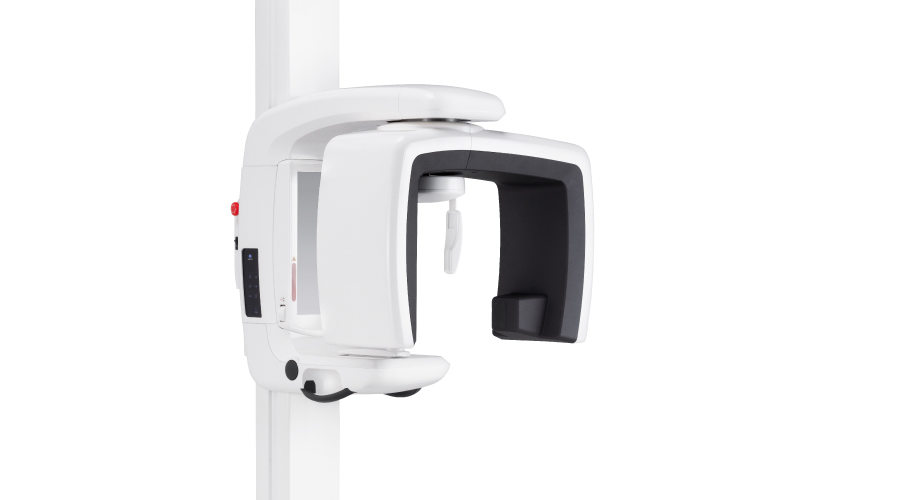

Veraview IC5 HD
High Definition Panoramic Imaging
Veraview IC5 HD offers high speed, class-leading clarity, and low dose.
Depending on the diagnostic need, this unit offers a 5.5 second panoramic for a quick examination at the lowest dose, or a 10 second scan for a more detailed, high resolution image. Veraview IC5 HD is compact and lightweight. It offers fully automatic, simplified operation, CCD sensor technology, triple laser beams for easy positioning, and improved energy savings of up to 50%.
*Select from two levels of speed and resolution
*Panoramic
"Technical Details"
-Trade name:
Veraview IC5 HD
-Model:
XDP1
-Input voltage:
EX-1:AC 100V/115V/120V 50/60 Hz
EX-2:AC 220/230/240V 50/60 Hz
-Power consumption:
0.85 kVA

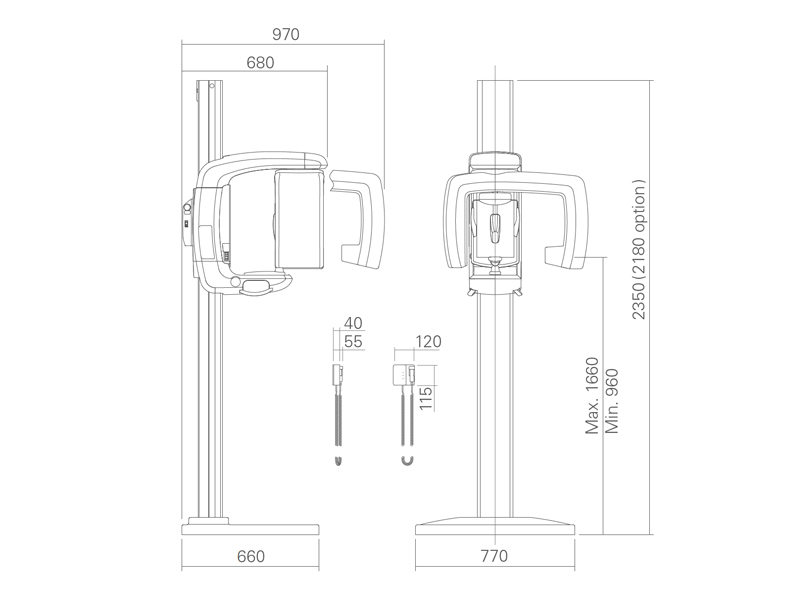

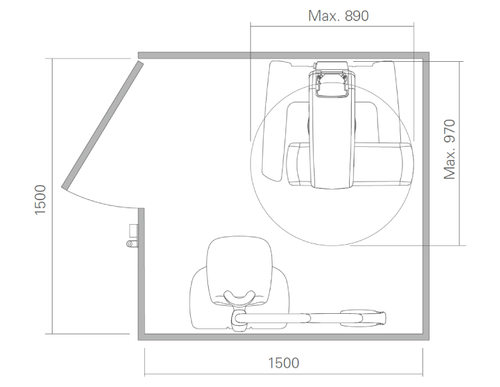

-Dimensions
Main unit:
W 890 x D 970 x H 2350
-Weight:
Approx. 110 kg
-X-ray generator
Tube voltage:
60-70kV (depending on exposure mode)
-Tube current:
1-7.5mA (depending on exposure mode)
-Effective focal spot:
0.5 mm
Panoramic image
-Exposure time:
High speed mode:Approx. 5.5 sec.
High definition mode:Approx. 10 sec.
-Imaging programs:
Standard Panoramic
Pedodontic Panoramic
TMJ Quadruple Image
*- Always have patients wear X-ray protective gear.
