The i‑scan technology provides extra visual information for a more accurate in vivo diagnosis through improved vessel and mucosal pattern characterization.

We introduced i‑scan to offer digital image processing on all our video processors. The INSPIRA and OPTIVISTA video processors are additionally equipped with i‑scan OE which is adding bandwidth-limiting light for further improved visualization.

i‑scan

All are arranged in series, this allows to apply two or more of these modes at one time.

Switching the levels or modes of enhancement can be performed on a real‑time basis, without any time lag, by pushing an endoscope button, enabling efficient endoscopic observation.

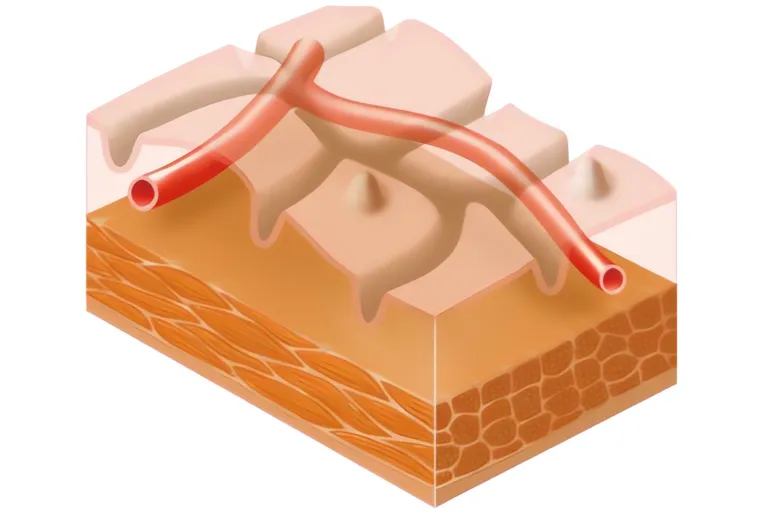

The i‑scan SE mode enhances the mucosal structure in a natural color tone to support detection, especially of flat lesions by highlighting abnormalities.

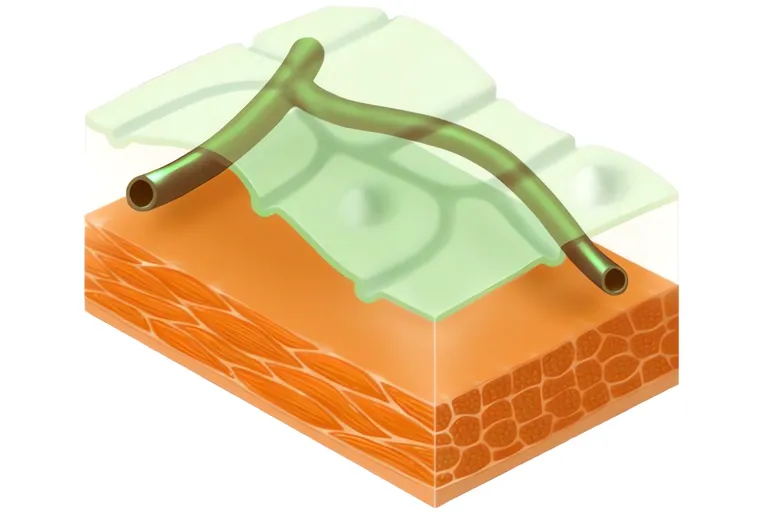

The i‑scan TE mode enhances the changes of vascular and mucosal structure with a color tone change, supporting pattern characterization.

The i‑scan CE mode enhances depressed areas and differences in structure by adding blue color to the edges.

i‑scan SE is proven to enhance the lesion detection by 11%.SE enhances light‑dark contrast which in turn enhances the structure through recognition of the edges. It retains the natural white light color tones thus can be kept activated during the entire procedure.

i‑scan TE enhances both pit pattern and vascular structures in a color tone that contributes to characterization and demarcation. TE dissects and analyzes the individual RGB components of a normal image and enhances minute mucosal structures and subtle changes in color.

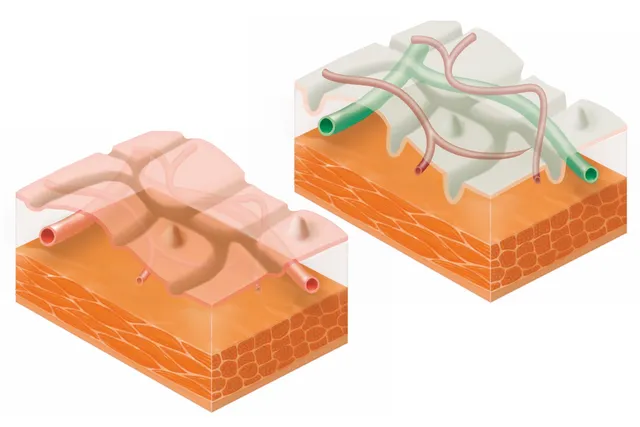

i‑scan Optical Enhancement (OE) combines bandwidth-limiting light with digital image processing technology.

This allows for higher contrast display of the surface structures of blood vessels, glandular ducts, and mucosal membranes compared to white light.

i‑scan OE is designed to support physicians to improve characterization, detection, and diagnosis of gastrointestinal lesions more precisely.

PENTAX Medical’s unique Twin Mode function is designed to support education.

It displays a normal white light image and i‑scan image simultaneously side by side. Switching between the white light and i‑scan modes can be done in real time.
