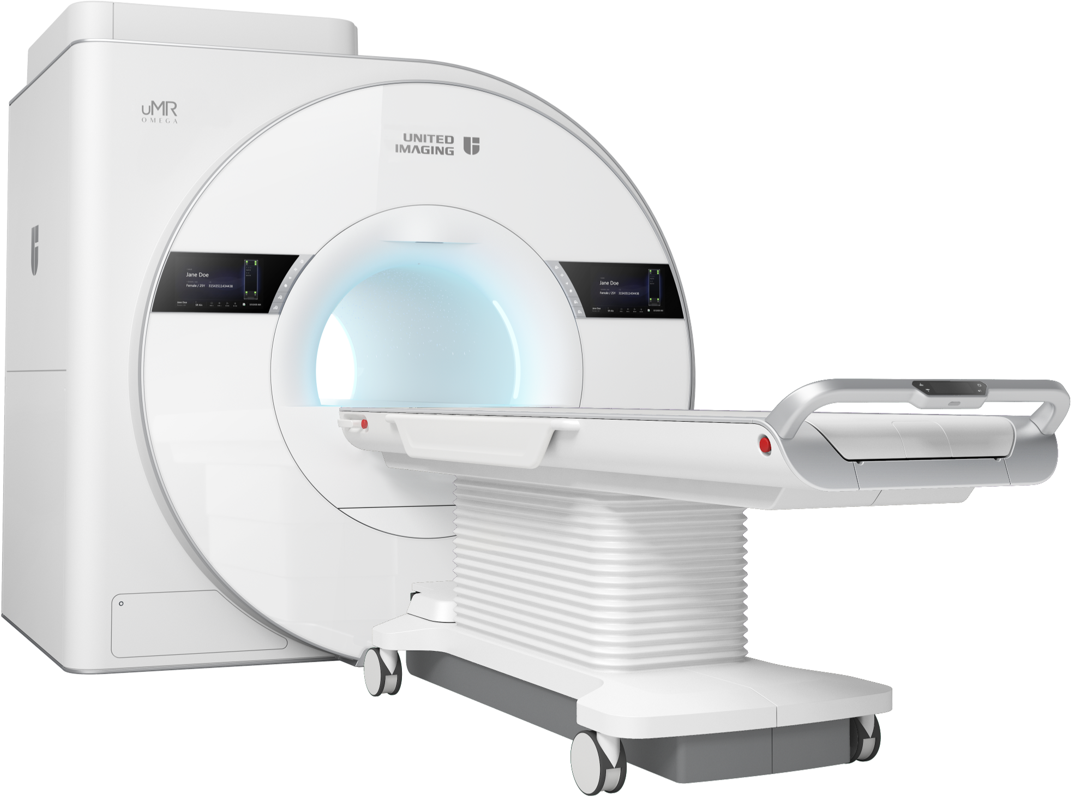

The uMR OMEGA is a world-class, 75 cm, ultra-wide bore 3T MRI with a 60 cm field of view and ultra high homogeneity (0.029 ppm @ 30 DSV typical*) for impeccable skin-to-skin fat saturation and consistent image quality. The system includes an industry-leading table weight capacity, powerful 45 mT/m & 200 T/m/s gradient performance, and a patient calming starlight experience. Advanced uAIFI technology and new applications makes it possible to expand access to MR in your community.
- Revolutionary Ultra-wide Bore
- Unparalleled AI for Imaging
- Boundless Clinical Scenarios
- uAIFI Inside
Empowered by the uAIFI Technology Platform, the potential for uMR Omega™ is even more anticipated with significant performance enhancements, more powerful imaging capabilities, better workflow, and improved user experience.
- World's first 75 cm ultra-wide bore with unique starlight environment to give patients a "first class" MRI exam experience.
- Next-generation RF coils with blanket-like feeling and higher RF element density for better patient comfort and image quality.
- Industry's first dual-source phased-array millimeter-wave radar solution for contactless sensing of patients' respiratory motions
- Quiet scanning is achieved without compromise thanks to the enhancement of the combination of ACS and DeepRecon.
- uAIFI ACS
- Combination of Four Acceleration Methods
- Up to CT-like Scanning Speed ( Enables each body part acquisition within 100 seconds)
- Higher Resolution within Shorter Scan Times
- Motion Freezing
- Ultra-Wide 75cm Bore 310kgs. Table Weight Capacity.
In-Bore Lighting for Patient Comfort.
- Next-Generation GPA with 3.5MW peak power. Gradient Performance of 45mT/m & 200 T/m/s. 0.029ppm @30 DSV Homogeneity (Typical).
* Technical Details :-
*Magnet System:-
Field Strength:3.0 Tesla
Bore Diameter:75 cm
Evaporation Rate of the Cryogen During Scanning:0% (Under normal use)
Maximum FoV:60 cm (X and Y directions)
Shimming:Passive & Active
* Magnet System :-
Field Strength:3.0 Tesla
Bore Diameter:75 cm
Evaporation Rate of the Cryogen During Scanning:0% (Under normal use)
Maximum FoV:60 cm (X and Y directions)
Shimming:Passive & Active
Gradient System :
Maximum Gradient Amplitude:45 mT/m
Maximum Slew Rate:200 T/m/s
* RF System :-
Number of Independent Receiver Channels:Up to 96
* Installation Information :-
Scanning Room Area (Minimum):25.9 m2
Electronics Room Area (Minimum):N.A. (Length & width based on the actual situation)
Control Room Area (Minimum):4 m2
