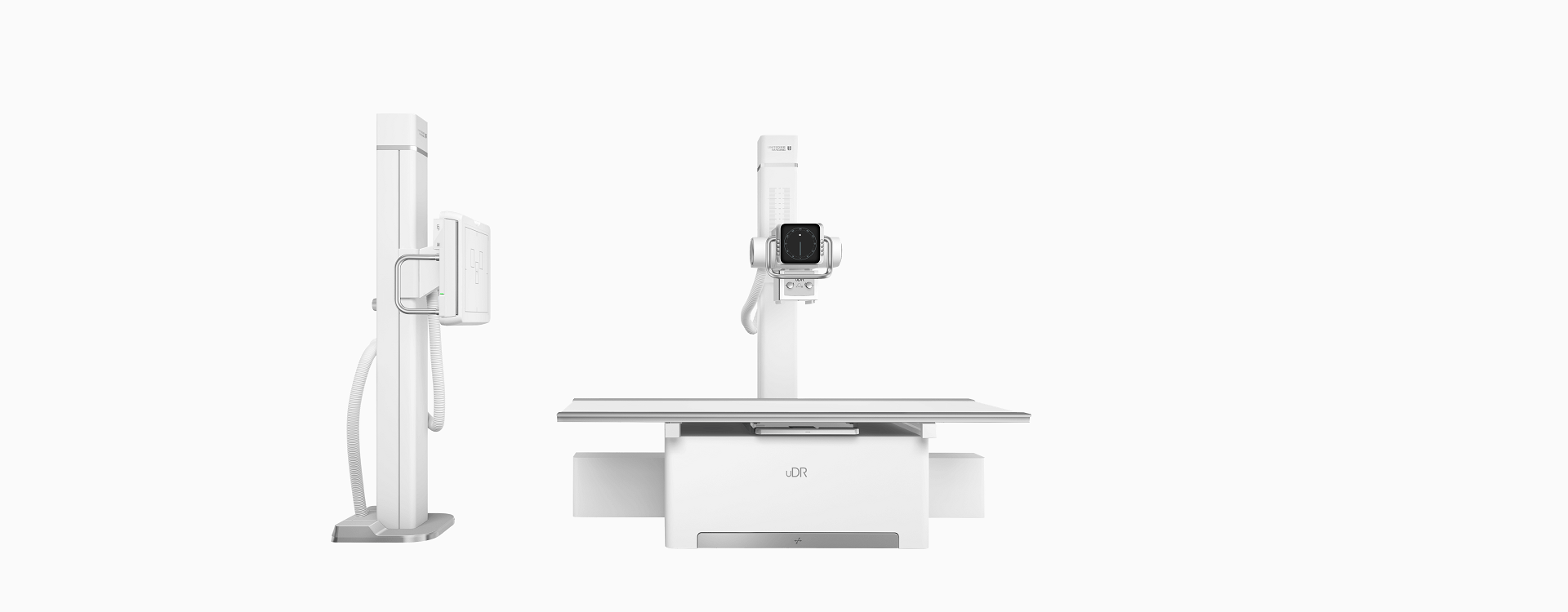

The high performance imaging chain of the uDR 566i enables accurate and consistent generation of high quality images while serving a large patient volume. Smooth movement, uExceed imaging acquisition system and advanced high precision-manufacturing technique make it a value-based digital X-ray imaging system.
- 17x17 inch wireless HD flat panel detector
- uAid Image quality real-time assistant for chest X-ray
- Auto-tracking - Supported
- Auto-centering - Supported
- Automatic Tube-detector Tracking System
- Large Coverage Wireless HD Flat Panel Detector
- Built-in Detector Charging
* Wireless Flat Panel Detector :-

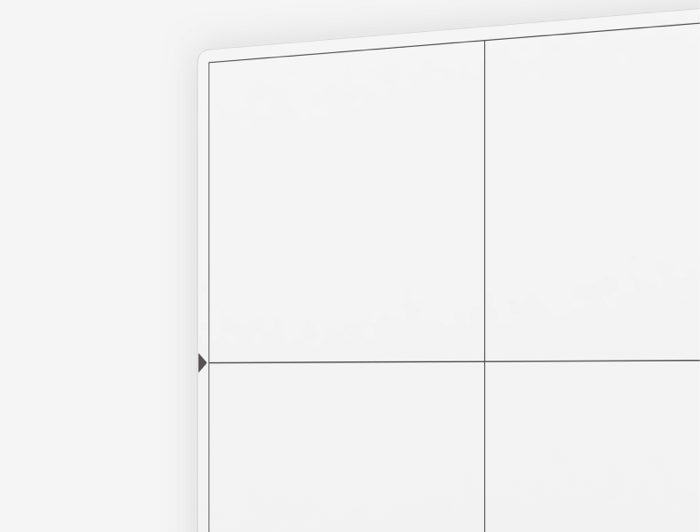

- Large Coverage Wireless HD Flat Panel Detector
The 17"×17" high definition flat panel detector supports a wide range of positioning needs.

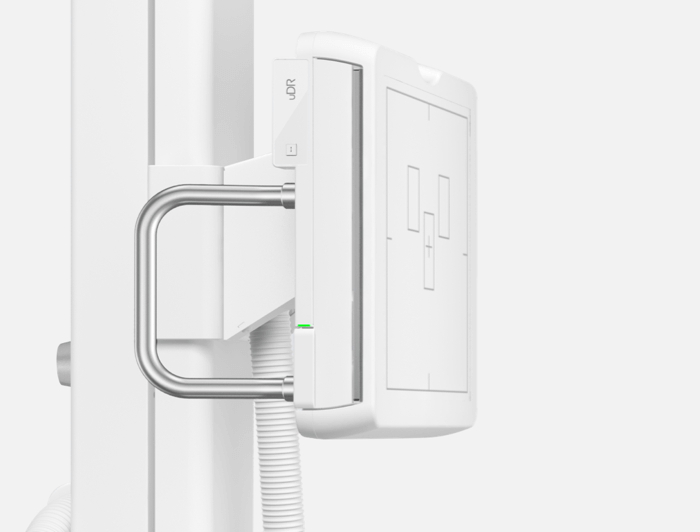

- Built-in Detector Charging
Easy access to charging provides long lasting detector performance.

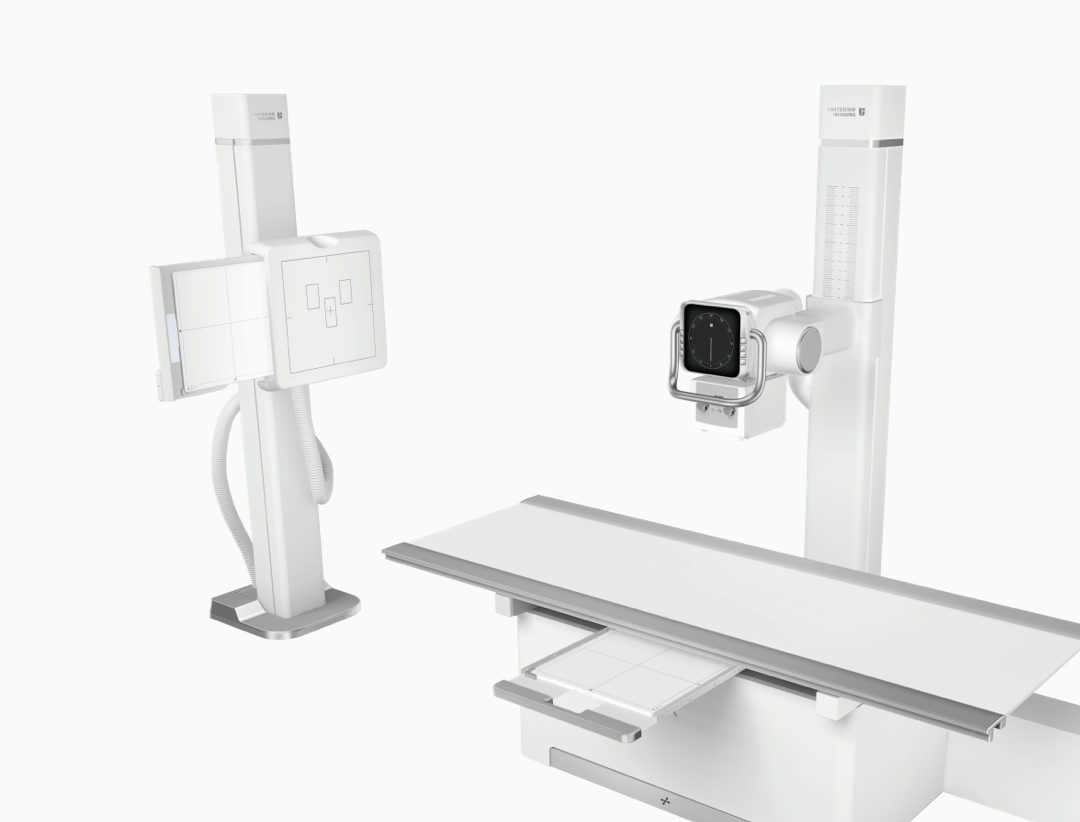

- Automatic Tube-detector Tracking

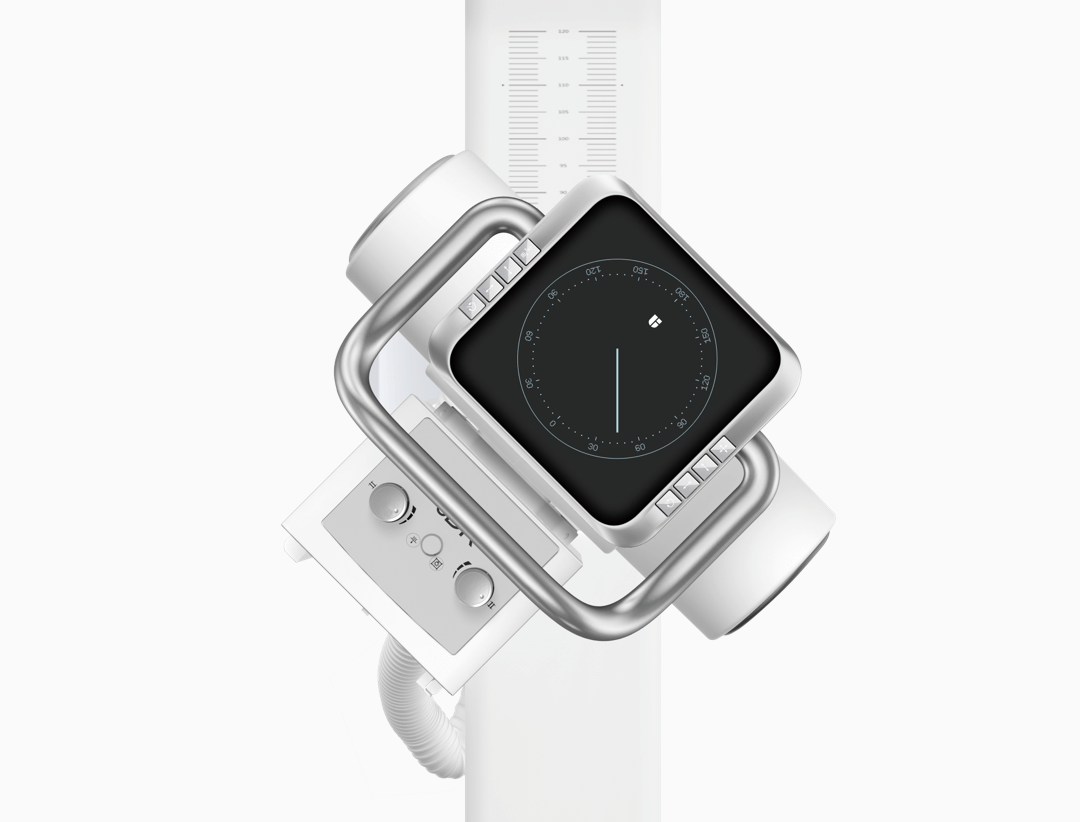

- Omni-directional Tube Module

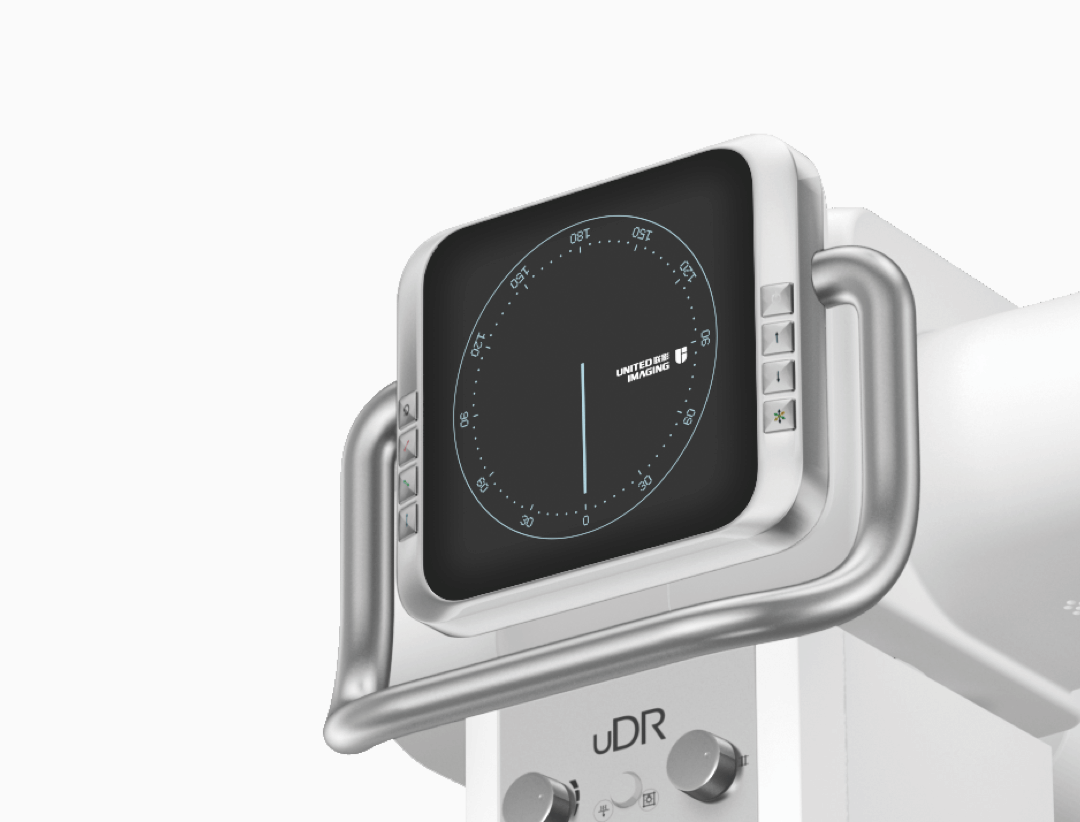

- Tube Angle Display

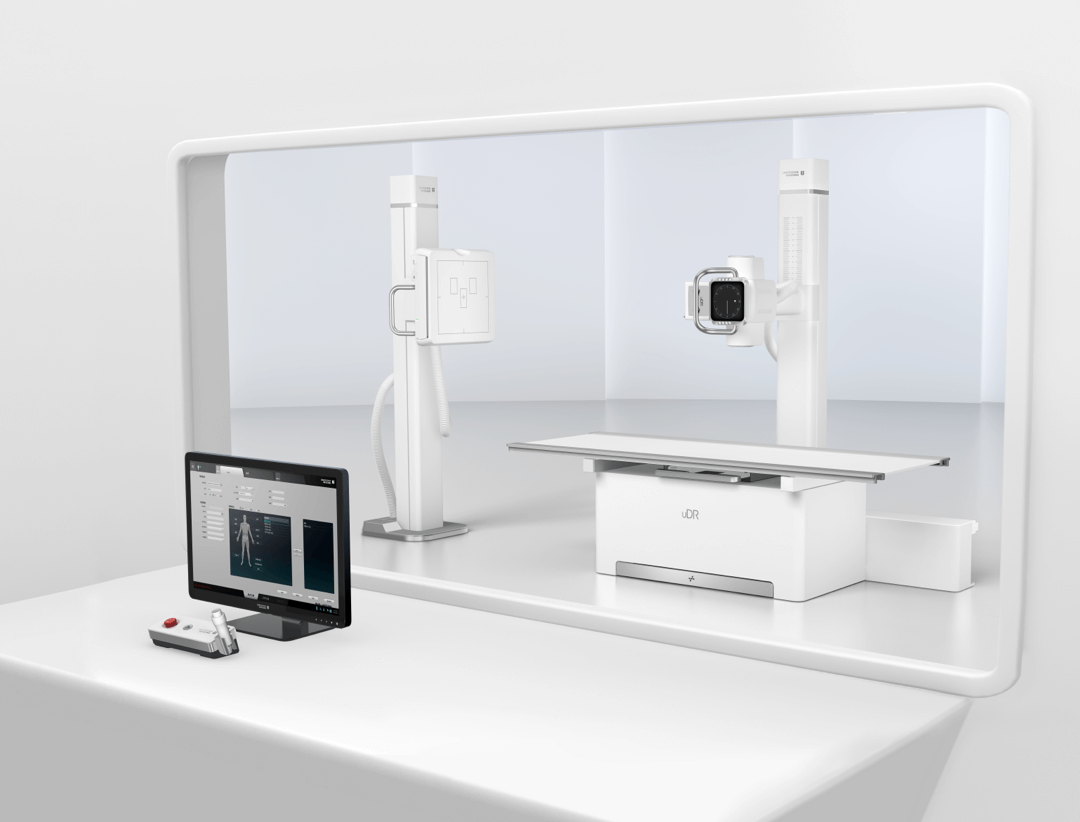

- All-in-one Intelligent Workstation
* Technical Details :-
* Detector :-
Detector type:Wireless Flat Panel Detector
Scintillator:Cesium Iodide (CSI）
Pixel Size:139μm
Pixel Matrix:3072×3072
* X-ray Tube :-
Tube type:Rotating Anode X-ray Tube
Anode target material:Rhenium-Tungsten faced Molybdenum
Focal spot size:0.6mm / 1.2mm
Anode target angle:12°
* HV Generator :-
Max. Output Power:uDR 566i-A: 50kW
uDR 566i-B: 65kW
Range of kV:40kV-150kV
Range of mA:uDR 566i-A: 10mA-630mA
uDR 566i-B: 10mA-800mA
* Motorized System:-
Motion control:Manual and Motor Driven Movement
Automatic Tracking:Vertical and Longitudinal Tube-Detector Tracking
Automatic Centering:Vertical Tube-Detector Alignment
Remote Control:Remote Controller for Wall Stand Bucky
Vertical Movement
