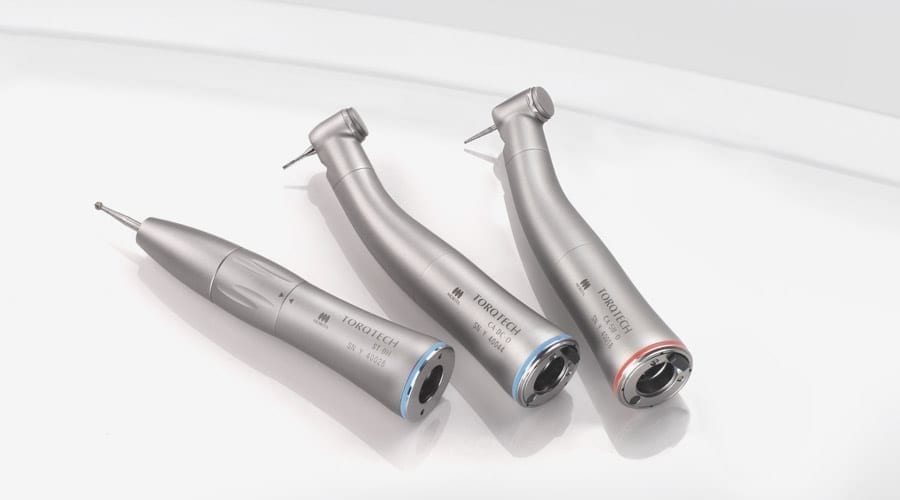

TorqTech Series

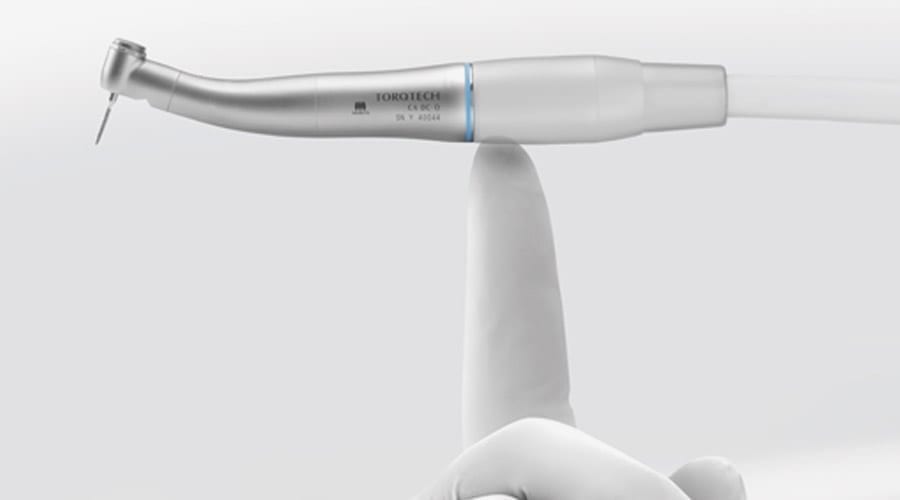

Perfectly balanced
TorqTech attachments are compact and perfectly balanced with a smooth surface finish. Ergonomically designed, they offer easy access to the treatment area and are more comfortable for both the dentist and patient.
*Slim and Ergonomic Design
*Lightweight, Reduces Fatigue
*Durable Chuck
*Maximum Illumination
*Efficient Spray Filter
*Designation:

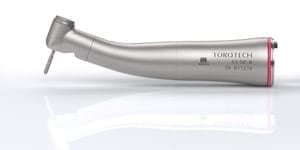

"CA-5IF-O"
-Max. rpm: max. 210,000 rpm
-Transmission ratio: 1:5
-Shaft: FG shaft Ø: 1.6 mm
-Chuck type: Pushbutton
-Light: Light guide
-Application: Preparation
-Length | Weight : 94 mm | 68 g
-Head Ø x height : Ø: 9.5 mm x H: 14.0 mm
-Instrument spray : 3-hole with spray filter

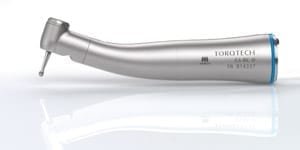

"CA-DC-O"
-Max. rpm: max. 42,000 rpm
-Transmission ratio: 1:1
-Shaft : RA shaft 2.35 mm
-Chuck type : Pushbutton
-Light : Light guide
-Application : Preparation& Prophylaxis
-Length | Weight : 94 mm | 67 g
-Head Ø x height : Ø: 9.5 mm x H: 13.3 mm
-Instrument spray : 1-hole with spray filter

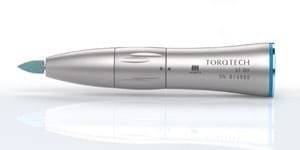

"ST-DH"
-Max. rpm: max. 42,000 rpm
-Transmission ratio: 1:1
-Shaft : HP shaft 2.35 mm or RA shaft
-Chuck type : with spacer
-Light : No light
-Application : Preparation, Prophylaxis &Light technical work.
-Length | Weight : 84 mm | 72 g
-Head Ø x height : –
-Instrument spray : 1-hole

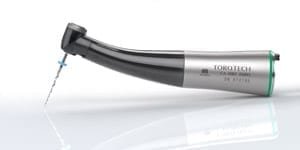

"CA-10RC-ENDO"
-Max. rpm: max. 2,000 rpm
-Transmission ratio: 10:1
-Shaft : RA shaft 2.35 mm
-Chuck type : Pushbutton
-Light : No light
-Application : Endodontics (only Soaric)
-Length | Weight : 94 mm | 55 g
-Head Ø x height : Ø: 9.3 mm x H: 12.7 mm
-Instrument spray : No spray

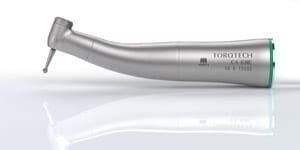

"CA-10RC"
Max. rpm: max. 4,200 rpm
-Transmission ratio: 10:1
-Shaft : RA shaft 2.35 mm
-Chuck type : Pushbutton
-Light : No light
-Application : Preparation, Endodontics & Prophylaxis
-Length | Weight : 94 mm | 69 g
-Head Ø x height : Ø: 8.0 mm x H: 13.0 mm
-Instrument spray : 1-hole

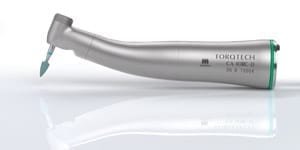

"CA-10RC-O"
-Max. rpm: max. 4,200 rpm
-Transmission ratio: 10:1
-Shaft : RA shaft 2.35 mm
-Chuck type : Pushbutton
-Light : Light guide
-Application : Preparation, Endodontics & Prophylaxis
-Length | Weight : 94 mm | 67 g
-Head Ø x height : Ø: 8.0 mm x H: 13.0 mm
-Instrument spray : 1-hole with spray filter
"CA-4R-PP"
-Max. rpm: max. 2,500 rpm
-Transmission ratio: 4:1
-Shaft chuck type : Screw-in shaft
-Light : No light
-Application : Prophylaxis
-Length | Weight : 94 mm | 67 g
-Head Ø x height : Ø: 8.0 mm x H: 8.5 mm
-Instrument spray : No spray
"CA-4R-O-PF"
-Max. rpm: max. 10,500 strokes/ Min.
-Transmission ratio: 4:1
-Shaft : EVA / Laminated
-chuck type: shaft
-Light : Light guide
-Application :
Stripping
Debonding
Root planing
Finishing
Prophylaxis
-Length | Weight : 94 mm | 67 g
-Head Ø x height : Ø: 7.8 mm x H: 9.1 mm
-Instrument spray : 1-hole with spray filter
