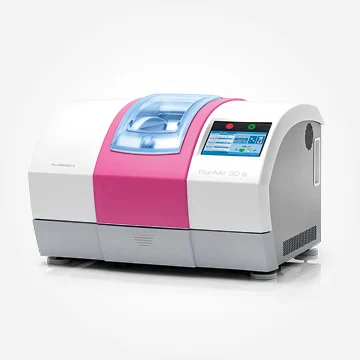

Planmeca PlanMill® 30 S is an excellent choice for clinics looking for a reliable and cost-effective dental milling unit. The single-spindle unit has been designed for highly precise fabrication of dental restorations. Start offering same-day convenience to your patients today with this high-quality milling unit!
Technical specifications :
Dimensions when closed (W x H x D) 422 x 644 x 556 mm (16.6 x 25.4 x 21.9 in.)
Weight 75 kg (165 lbs)
Axes 5
Air supply requirements 50 l/min flow rate, 3–4 bar (44–58 psi)
Spindle 100 000 rpm
Tool Changer 10 tool positions, automated
CAM software Automated toolpath calculation with Planmeca PlanCAM™ software
Versatile dental milling

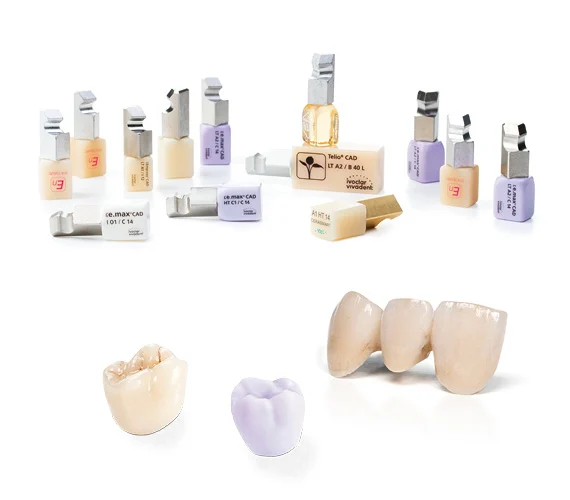

Planmeca PlanMill 60 S can be used to mill discs, blocks and prefabricated titanium or cobalt-chrome implant abutments. The milling unit is capable of both wet and dry processing of different materials, including zirconium dioxide, glass ceramics, composites, and wax.
Quick clamping system
Planmeca PlanMill 60 S supports a variety of material holders, which can be changed by the user quickly and easily, when needed. With a half-open blank holder, the milling unit can be used for milling even the most demanding restorations for the anterior area. The platform-based design with interchangeable clamping fixtures also allows introducing new features to the unit later.

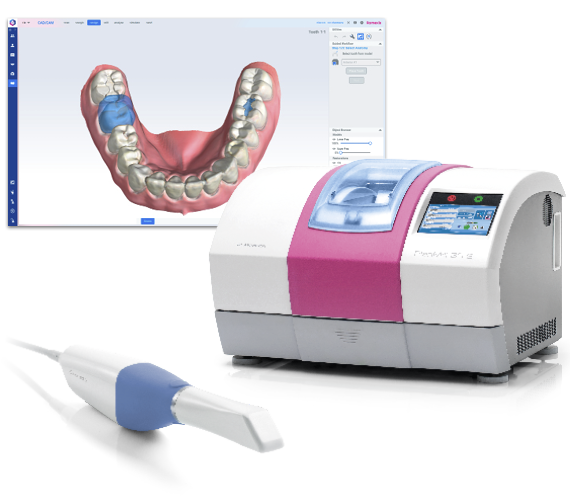

Seamless design software integration

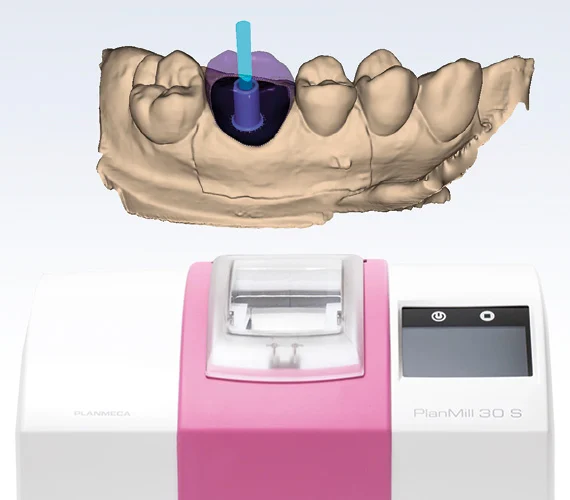

The seamless integration between Planmeca PlanMill 60 S and Planmeca PlanCAD® Premium design software allows users to create dental restorations that always fit precisely. The milling parameters and instructions are transferred to the milling unit directly from the design software, leading to predictable results. With the software, users can design a comprehensive selection of dental restorations and applications.

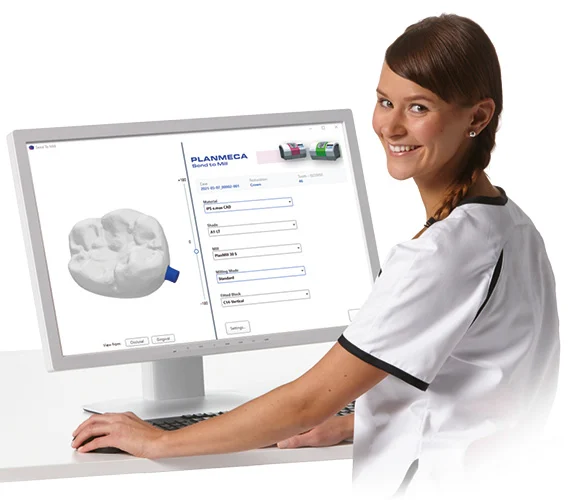

Simple nesting software
The Planmeca PlanMill 60 S milling unit is used together with an easy-to-use Planmeca PlanCAM™ software, which calculates necessary milling paths for selected materials and indications. Restorations designed with the Planmeca PlanCAD Premium software can be directly launched to Planmeca PlanCAM for nesting, guaranteeing a fast and easy workflow in the busy laboratory environment. Planmeca PlanCAM also supports all open STL files.
