-Smart. Refined. True.

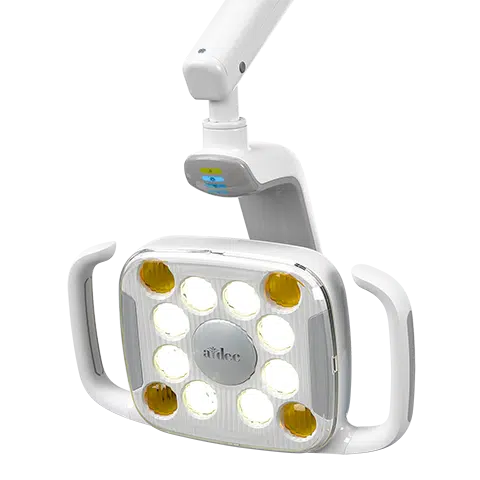

See clearly and diagnose accurately day after day with the award-winning A‑dec 500 LED dental light. Get advanced light performance and unparalleled ergonomics for the dental team. A cure safe mode gives you more time to work with composites.
-See it to believe it
The A‑dec 500 LED dental light has always been flexible, brilliant and crystal clear. Now, it includes touchless activation for hands-free operation. See it in action.
-Easy on the eyes

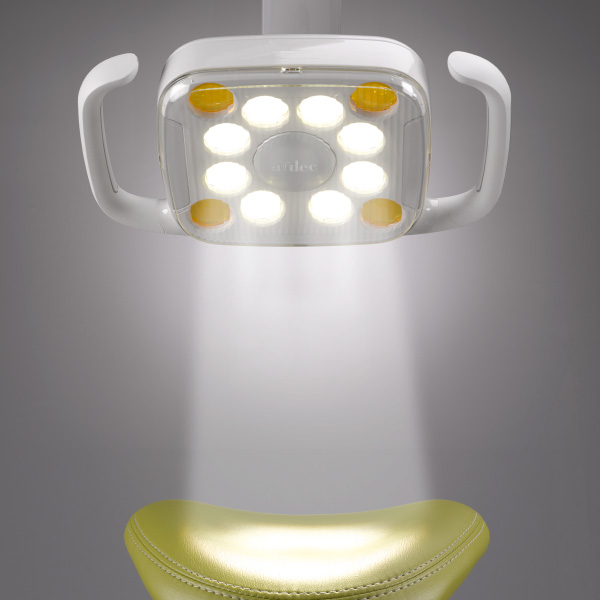

Innovative light distribution creates a uniform pattern with a “stadium” effect to minimize shadowing. A feathered edge light pattern reduces eye fatigue.
Exceptional illumination
A high color rendering index (CRI) of 94 mimics sunlight’s clarity and floods the oral cavity with light that reflects colors accurately for soft and hard tissue diagnosis. See image: High CRI (left), Low CRI (right).
-The high-quality light pattern on the A‑dec 500 LED dental light conforms to the latest ISO9680 standards for brightness, color rendering, and uniformity.
-Ecologically and economically smart
Low-heat LED lights are free of toxic chemicals and produce little infrared light and close to no UV emissions. A‑dec LEDs also consume 80-90% less power, are more than 20% brighter than most halogen lights, and have a life expectancy of 40,000 hours—all without ever having to change a bulb.
-Clean and simple
Touchless sensor for on/off activation combines with touchpad control and auto on-off using chair presets to maximize light activation options while simplifying asepsis protocols and minimizing touchpoints. Easier to clean and fewer barriers are needed.
-A‑dec 500 LED dental light features :-
-Three-axis, 540º horizontal rotation light head adjustment. Provides unlimited barycentric positioning.
-Three light intensity settings. Features three intensity settings of 15,000, 25,000, and 30,000 lux.
-Cure-safe mode. Enables the dental team to work effectively at 23,000 lux illumination without curing photo-initiated resins.
-Auto On/Off function. Turns the dental light on automatically when the chair reaches the treatment position and turns it off in the entry/exit position. Requires A‑dec touchpad.

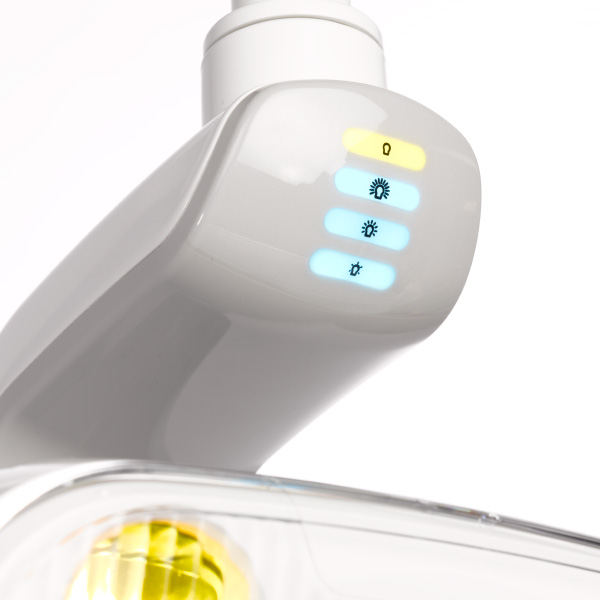

-Remote touchpad activation. Allows you to toggle between settings and turn the dental light on and off without having to touch the light head.
-Local Control. Touchless on/off sensor and momentary mode toggle enables full light control by the entire dental team when the touchpad is not available.
-Long-lasting LEDs. Uses about 1/5th the power of a traditional quartz halogen light with a life expectancy of up to 40,000 hours, or nearly 20 years of daily use.
-Upgrade to LED
Easily upgrade your halogen A‑dec dental light to the A‑dec 500 LED dental light. Gain all the advantages of LED over halogen, including 20% more illuminance at one-fifth of the power consumption. To upgrade, you must have an A‑dec 6300, 500, or 300 halogen-based light manufactured after 1993. For details, consult with your A‑dec Territory Manager or authorized dealer or contact A‑dec Customer Service.
Specifications:-
-Type of stadium lighting 8 bright white LEDs
-Light intensity Low: 15,000 lux, Medium: 25,000 lux, High: 30,000 lux, Cure-safe: 23,000 lux
-Thermal Output 77 BTU
-Composite mode Cure-safe brilliant yellow light at 23,000 lux
-Color Temperature 5,000 Kelvins
-Light pattern 3.8” x 5.7” at 27.6” focal distance
-Feathered edge Yes
-Lifespan 40,000 hours (~20 years)
-Rotational axes 3-axis: horizontal, vertical, diagonal

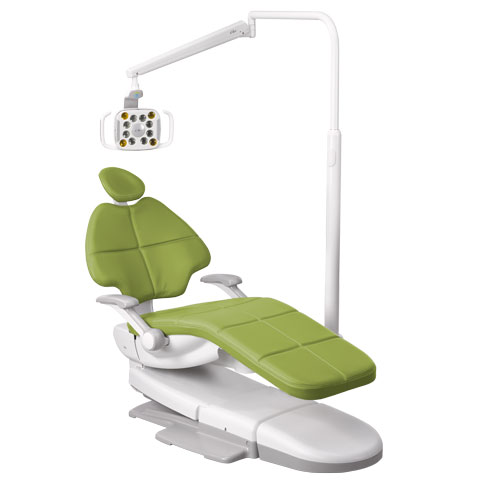

-Compatibility A‑dec 500, A‑dec 400, A‑dec 300 dental chairs
