Specifications :
- Model :

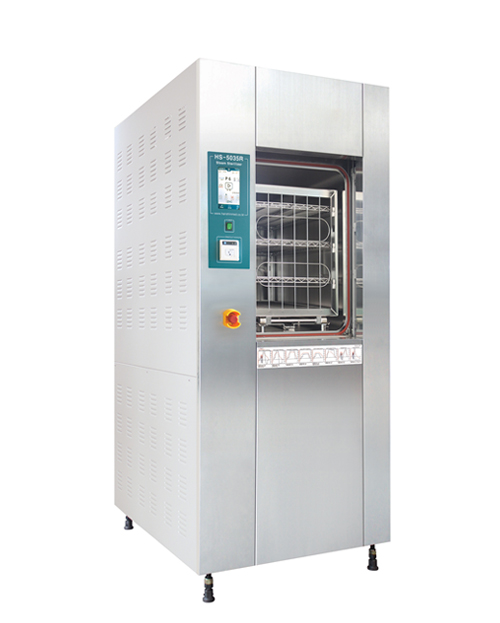

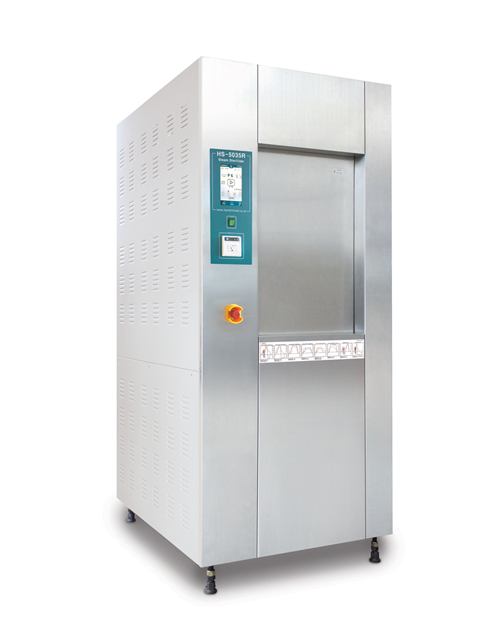

HS-5035R
- Style :
- Single Door :
- Overall Dimension :
W872 x D1,300 x H1,971 mm
- Net Weight :
803 kg
- Double Door :
- Overall Dimension :
W872x D1,350 x H1,973 mm
- Net Weight :
982 kg
- Chamber :
W500 x D1,000 x H700 ㎜, Vol: 350 ℓ, Material: STS 316L
- Door Operation :
Power(Automatic) Operation/Manual Operation

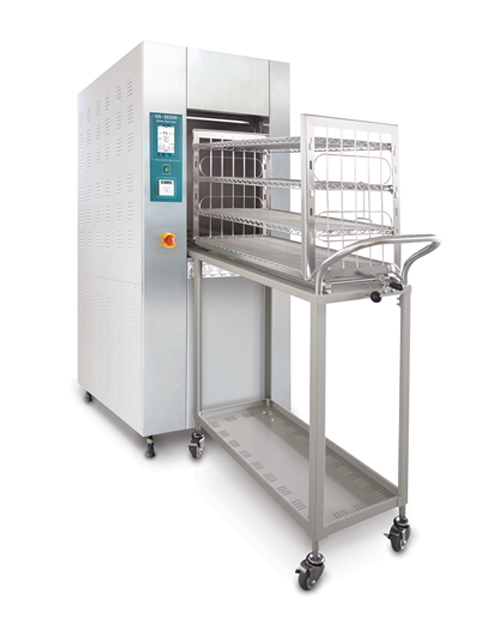

- Loading Unit :
Loading Car (W460 x D950 x H598㎜)
Transfer Carriage (W450 x D1,453 x H1,143㎜)
- Operating Temp :
121.0℃ ~ 135.0℃
- Air Removal Method :
Vacuum / Gravity
- Controls :
Microprocessor
- Display :
Touch Screen Type Color LCD
- Panel Printer :
Direct Thermal Printing type, Printing Paper Roll: W58 x 240 mm, (length: 13 m)
- Power Source :
Built-in Steam Generator:AC 230V, 3phase 3wire, 50/60Hz, 55A or AC 380V, 3phase 4wre, 50/60Hz, 32A
Use Extemal Steam:AC 230V, 50/60Hz, 10A
- Steam Source :
Saturated Steam (Dry Rate:more than 97%), Pressure: 3.50-5.00bar, Connection
Pipe:Unit Side 1/2" FPT, Facility Side 3/4" FPT
- Water Source :
Soft Water less than 20°C, Pressure: 2.10 ~ 5.00bar
- Air Removal Equip :
Water Ejector & Water Pump
- Drainage :
Connection Pipe:Unit Sic 34" FPT, Exclusive Drainage: 2" MPT (Metallic Pipe)
- Environment Conditions (IEC61010-1) :
ㆍ*Attude up to 2,000m
ㆍTemperature range of +5°C to +40°C
ㆍMain supply voltage fluctuation of ±10% of nominal
ㆍInstallation Category (Overvoltage Category) II, Polution Degee: 2
ㆍMaximum relative humidity of 80% for temperature up to 31°C decreasing linearly to 50% relative humidity at 40°C
Features :
1. High-pressure saturated steam supplied from the outside is used as a sterilization medium, and various retort pouches and blister package products are safely sterilized without damage through a cycle program dedicated to retort. In addition, 5 types of basic cycle programs that can sterilize general medical equipment are built-in, and the user can arbitrarily set and sterilize the program according to various situations, so the equipment's effectiveness is high.
2. The sterilization process is fully automatically controlled by the microprocessor, and the sterilizer can be easily operated and controlled while viewing the progress of the sterilization cycle directly on the touch screen type color LCD monitor. The built-in self-diagnosis program monitors the operation status of the sterilizer in real time and automatically takes safety measures such as sound alarm, cycle stop, and error message display when an abnormality occurs during operation, so that operation errors or malfunctions can be dealt with promptly.
3. The touch screen type color LCD allows the user to operate the sterilizer easily by light touching the screen buttons and realizes delicate graphic display.
4. As a unique feature of our sterilizer, at least 11 years of cycle execution records are automatically stored in the Flash memory of controller. The user can automatically retrieve the result of the sterilization cycle that was executed in the past as needed and print the contents with the panel printer mounted on the sterilizer, and use the result as an evidence of sterilization quality.
5. By printing cycle execution data such as temperature and pressure, sterilization time, drying time, and error by hour in the sterilization process with a panel printer, it can be stored and referred to as sterilization quality data.
6. The temperature and pressure are controlled automatically to be suitable for the sterilization condition, their changing values through cycle progressing are displayed on the screen in real time by graph, and saved in the memory device.
7. The operating status is diagnosed, displayed and stored in real time, so that an operation error or a trouble can be recovered rapidly.
8. The standard language displayed on the screen is Korean language and English (another language can be provided as an optional specification).
