These three words are the core theme of our next generation electrolyte analyser design process. We understand that any new system must be economical to run and reliable to use as much as possible. By utilizing the innovative solid ISEs technology and using high quality components, we have made an analyser that is a great fit for laboratories everywhere.

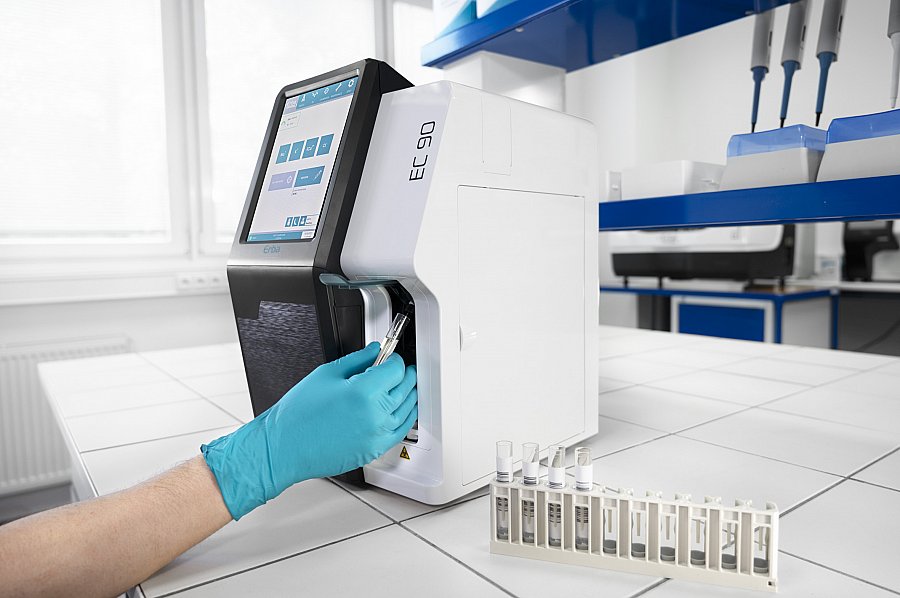

The best things don’t need to be difficult to understand or to use. On the opposite - the best technology has to be easy to use, with only small learning curve. With this in mind, EC 90 introduces 1-click Analysis. Everything you need is only 1 click away now. Inserting cartridge? Measuring sample? Printing results on built-in printer? Just 1 click and you are there.

Trouble Free Operation - State-of the art technology using fully automated production methods. Integrated reference sensor, automatic calibrations and quality reports. High quality components for long life and result stability.

Simplified daily routine – maintenance free technology, advanced connectivity with one-click analysis. Plug and play

“all-in-one” consumable.

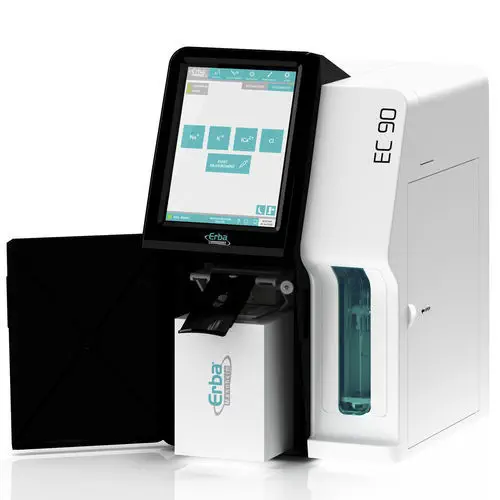

Measuring Na, K, Cl and also iCa. Really small sample volume, super-fast analysis time together with low maintenace and excellent analytical performance. In all of these aspects, EC 90 shows why we call it “Next Generation Electrolyte Analyser”. Other benefits, like state of the art connectivity and data management are also standard.

Employing cutting edge technology, the New EC 90 ISE analyser takes laboratory electrolyte measurements to new heights. The linearity on all the parameters extends above clinically required levels and within-run precision is <1% CV.

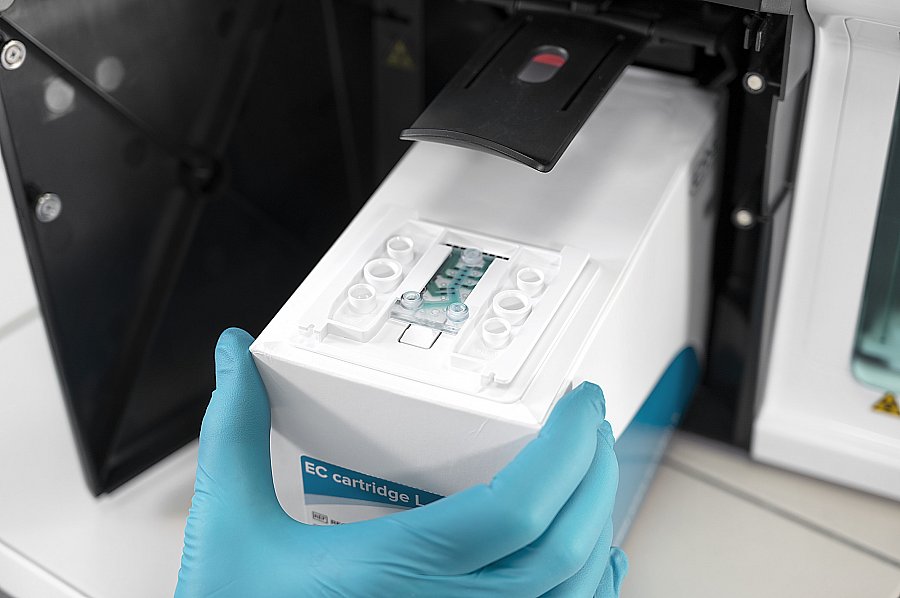

The cartridges maintain their sensitivity and first-class performance for 90 days from the day that they are docked into the analyser. The “all-in-one” cartridges cater for any laboratory size since the cartridges integrate the reagent pack with the biosensor and are available in three different kit sizes; small, medium and large, capable of performing 500, 1,000 and 3,000 sample measurements respectively.

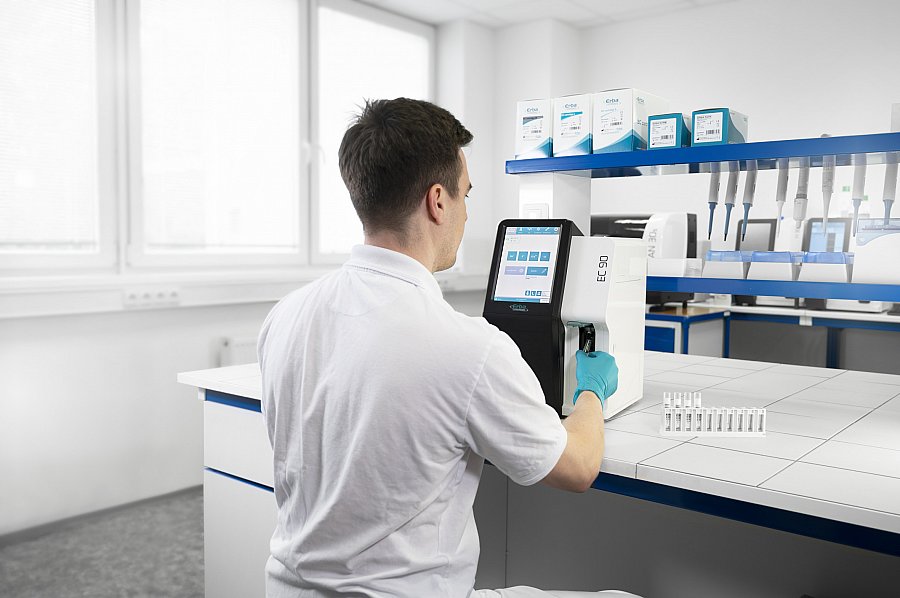

Interacting with the EC 90 is made easy with large screen and clean software design. Sample results to QC records - everything is just tap away.

8.5 inch colour touch screen

600 x 800 pixel graphic display

100-240 VAC 50/60 Hz 80 VA

337mm (D) x 273mm (W) x 422mm (H)

<8 kg

built-in, 24 column thermal printer

15-35ºC (59-95°F) / 15-90% humidity

microprocessor controlled

2 x USB, RS 232, LAN

to be announced

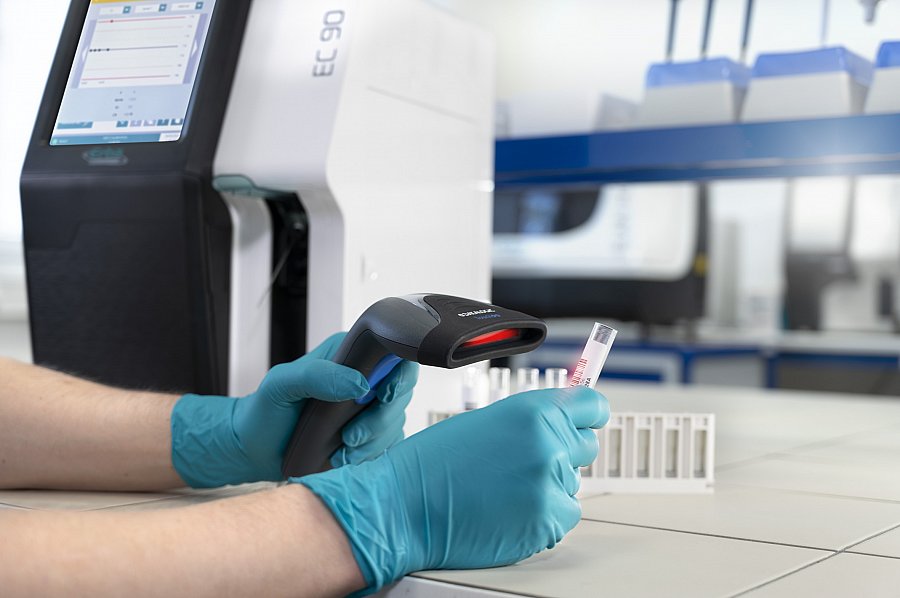

Sample/Patient ID,

direct measurement

whole blood, plasma, serum,

dil. urine, aqueous sol.

35 and ≥70 μL measuring modes

15–35 °C

100 samples/hour

35 sec

10000 samples

fully functional QC with Levey-Jennings and Westgard rules programmable reference ranges advanced flagging Bi-directional LIS

1-point calibration

automatic 1-point calibration

with every sample

or on-demand

2-point calibration

automatic 2-point calibration

every 12 hours

or on demand

automatically controlled

or user defined
