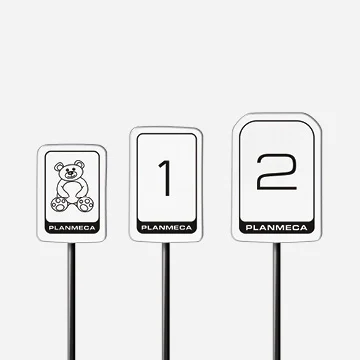

Intraoral sensor with three different sizes
Planmeca ProSensor® HD intraoral sensor offers a unique combination of unparalleled image quality, high-end patient-centred design and advanced usability. The digital sensor has been designed to last and provides durability that can be counted on.
Technical data:-
Sensor size
Size 0 - 33.6 x 23.4 mm (1.33 x 0.92 in.)
Size 1 - 39.7 x 25.1 mm (1.56 x 0.99 in.)
Size 2 - 44.1 x 30.4 mm (1.76 x 1.2 in.)
Active area
Size 0 - 25.5 x 18.9 mm (1.0 x 0.74 in.)
Size 1 - 30.6 x 20.7 mm (1.20 x 0.81 in.)
Size 2 - 36 x 26.1 mm (1.42 x 1.03 in.)
Number of pixels, normal
Size 0 - 850 x 629 px
Size 1 - 1020 x 690 px
Size 2 - 1200 x 870 px
Number of pixels, high
Size 1 - 2040 x 1380 px
Size 2 - 2400 x 1740 px
Pixel size, normal
30 μm x 30 μm
Pixel size, high
15 μm x 15 μm
Theoretical resolution
33 lp/mm
Resolution, normal
17 lp/mm
Resolution, high
>20 lp/mm
Interface
USB or Ethernet
View delay
<5 sec.
