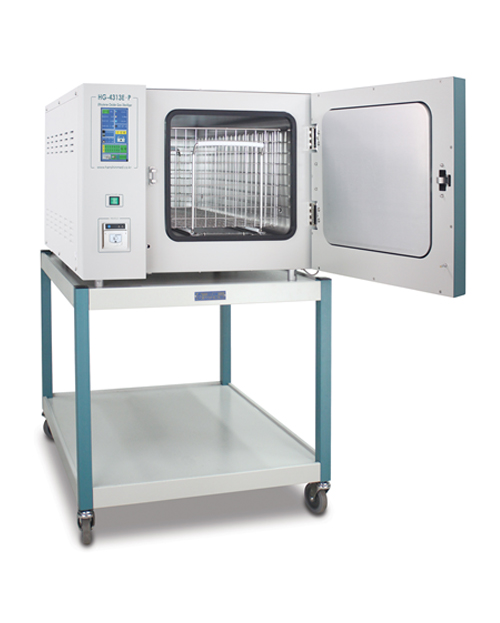

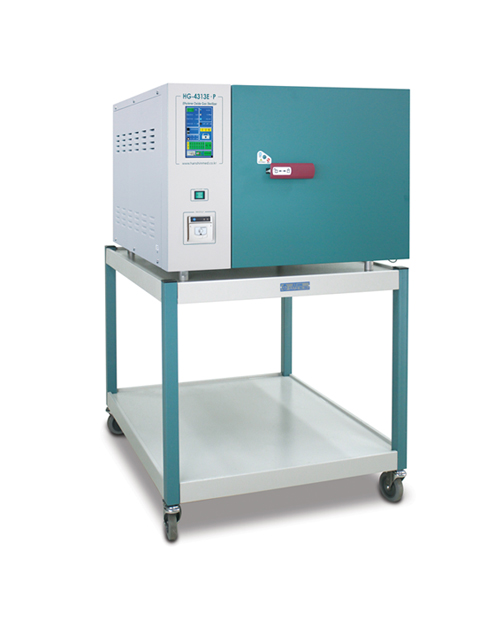

- (100% EO Gas Sterilizer)
Specifications :
- Model Name :
HG-4313E·P
- Overall Dimension :
W815 x D1,030 x H1,406 mm
- Chamber :
W430 x D824 x H380 mm, Vol; 134.6ℓ, Material: STS 316L
- Basket :
Steel Wire-net Basket; W400 x D790 x H340 mm, 1ea
- Sterilant :
100% Ethylene Oxide(EO), Gas Cartridge type (Gas Weight; 100g)
- Power Source :
AC 220V, 50/60Hz
- Power Consumption :
2,000 W
- Controller :
Microprocessor
- Air Removal Device :
Vacuum Pump
- Water Source :
Pressure; 1.5~3.0 bar
- Control Display :
Touch Screen type Color LCD (LED back-light)
- Panel Printer :
Direct Thermal Printing type, Paper Roll; W58x∅40㎜ (length; 13m)
- Weight :
220 kg
- Environmental Condition :
ㆍ Altitude:above 2,000 m
ㆍ Temperature Rang:+5℃ ~ +30℃
ㆍ Relative Humidity:max. 80%
ㆍ Power Supply:Fluctuation Range ±10%
ㆍ Installation Category (Overvoltage Category) : Ⅱ, Pollution Degree; 2
Features :
1. Convenient and Safe EO Gas Sterilization
This is the standard type 100% EO gas sterilizer equipped with a practical capacity of rectangular chamber for sterilizing a lot of the small medical devices, instruments and supplies at once by convenient way of only inserting a small disposable gas cartridge on the holder recessed in the chamber wall. The sterilization and aeration process are all completed in the chamber under negative pressure, therefore leakage of EO gas in the working area can be fully prevented.
2. Various Cycle Programs and Self-diagnosis Function
4 kinds of sterilization cycle program and the vacuum leak test cycle program are installed in the sterilizer and the operator can select a proper cycle program according to the type of materials or items to be sterilized and sterilize them conveniently. If an error has occurred during operating the sterilizer, the error code is displayed on the touch screen accompanying an audible alarm and the cycle in progress is aborted at the same time automatically for the safety of workplace by the self-diagnosis program.
3. Easy and Convenient Sterilizer Operation
Touch screen type color LCD allows user to operate the sterilizer more easily and quickly by touching the function buttons(pads) on the screen, and also to check the state of cycle progressing such as the actual temperature, pressure and humidity in the chamber etc. conveniently in real time on the screen.
4. Cycle Execution Data Storing and Retrieval Function
At least 11 years of cycle execution records are automatically stored on the Flash memory of the control unit. The user can search and check the results of a cycle performed in the past by input the date performed or cycle count number on the touch screen, and print out the record by the built-in panel printer for using as an evidence data of sterilization quality. (optional specification)
5. Printing of Cycle Performance Record
The built-in panel printer prints out the cycle performance record for analyzing the results of sterilization and keeping as a quality evidence and traceability.
