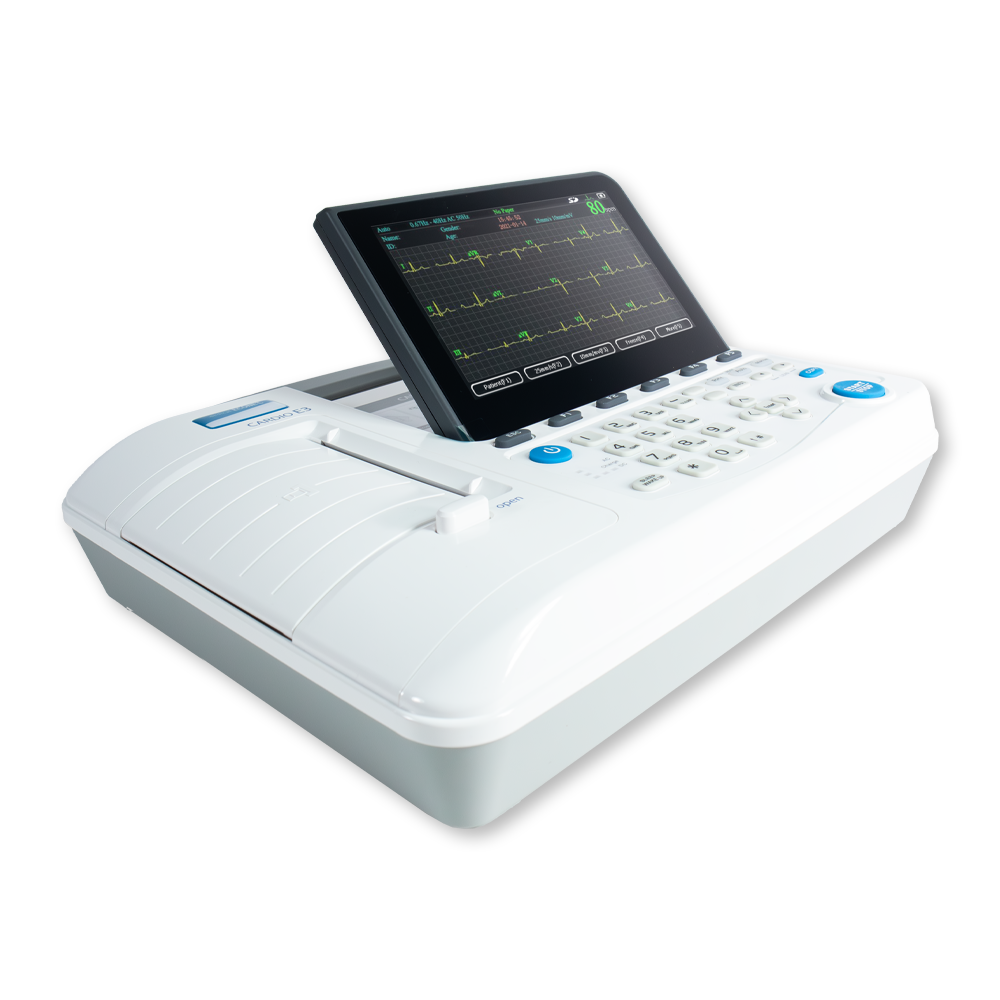

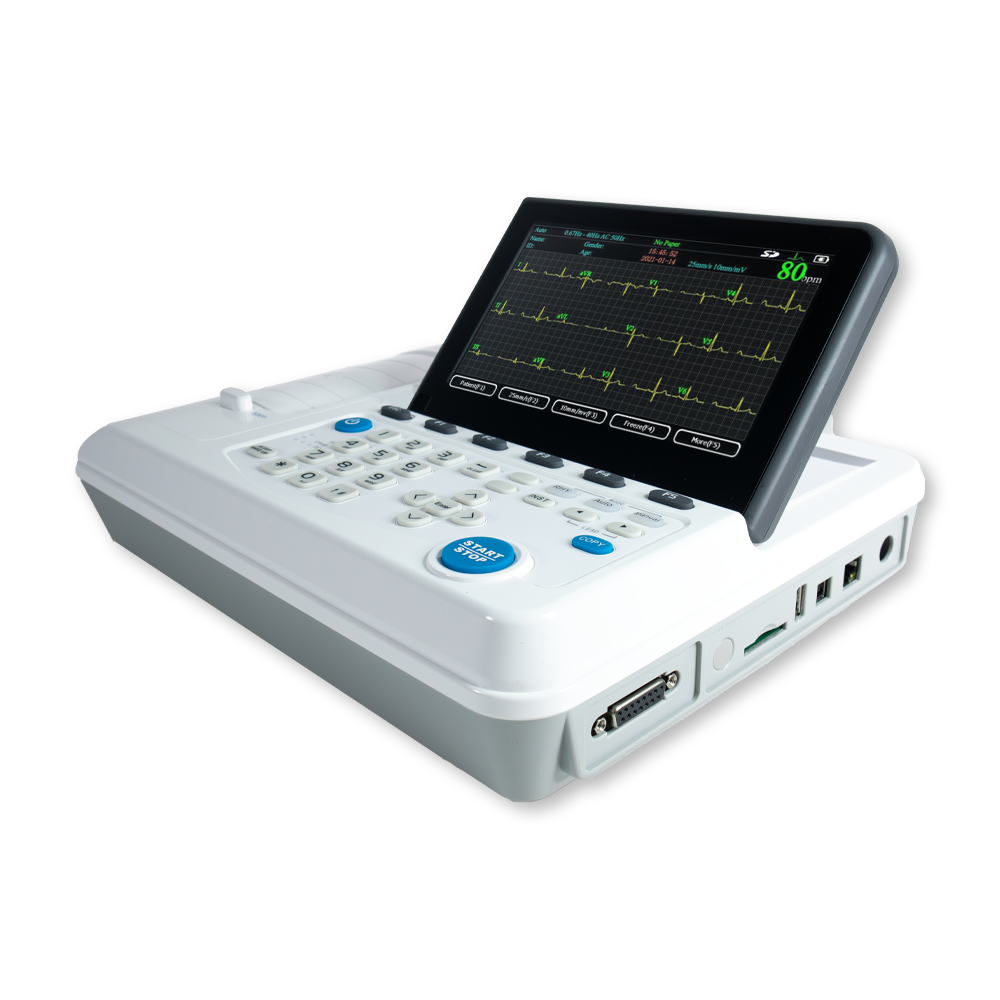

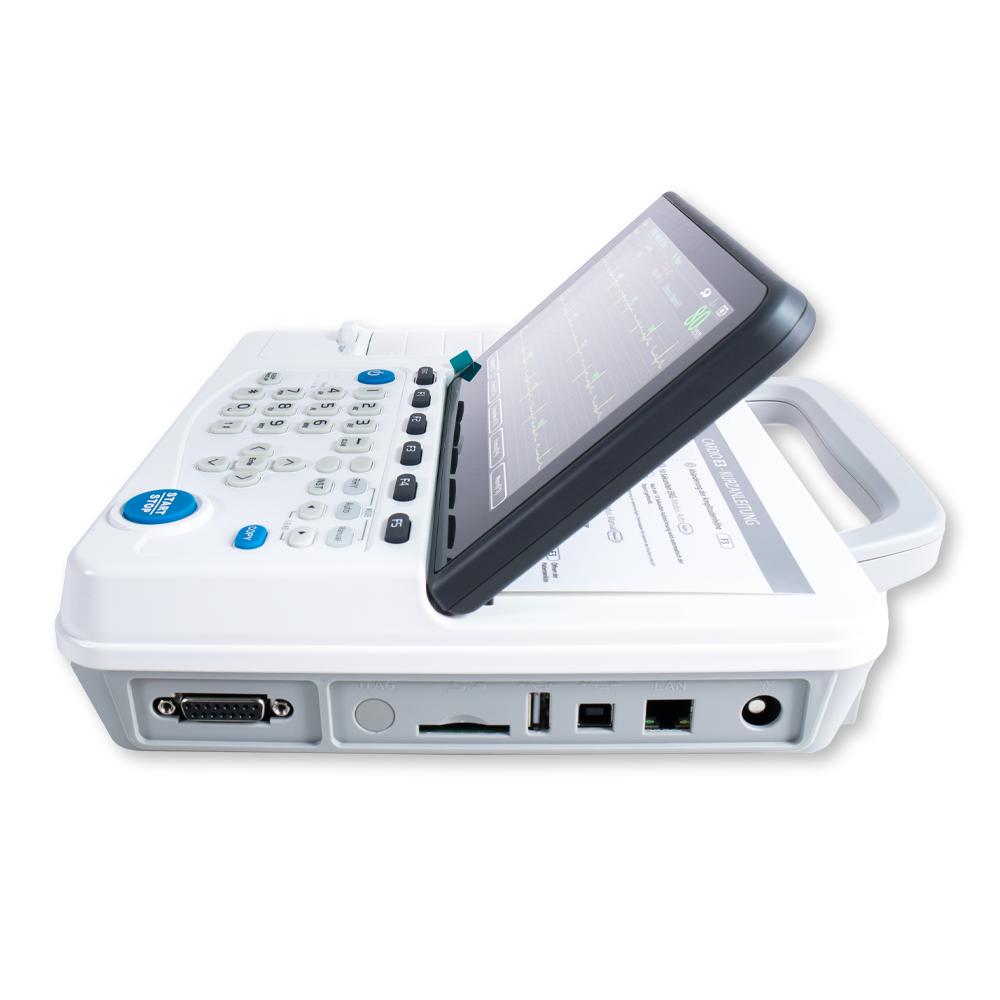

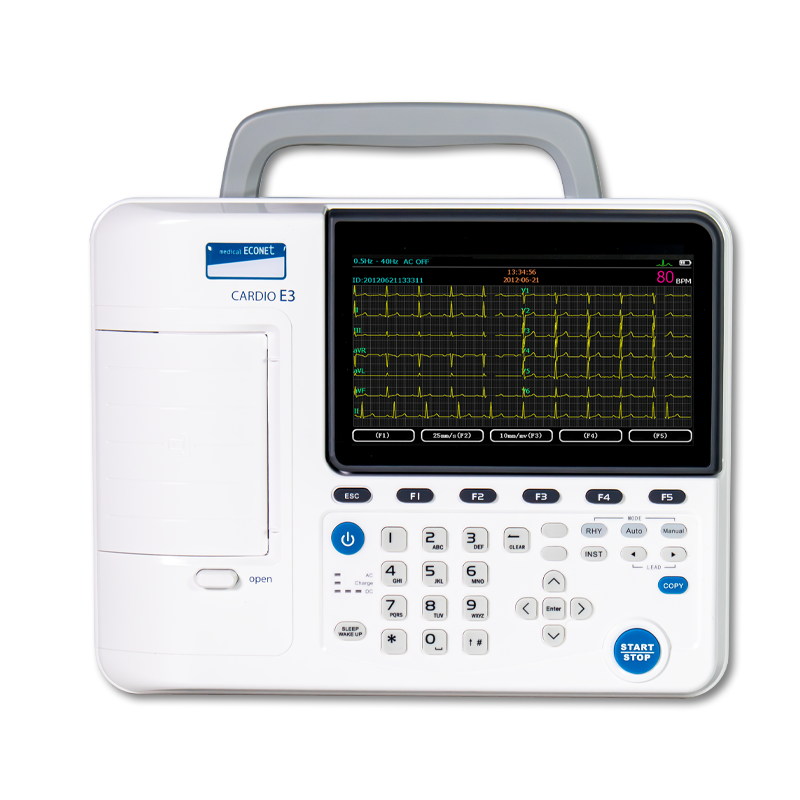

"CARDIO E3"
3-channel ECG with 7-inch LCD colour screen.
12 simultaneous leads including ECG interpretation programme
Sampling frequency 1,000 Hz
Pacemaker detection 10,000 Hz
Mains filter for suppression of 50 / 60 Hz interference
Recording speed 5/10/25/50 mm/s (manual pressure)
Sensitivity adjustable:2.5/5/10/20 mm/mV automatic or manual operation
Technical details:
Lead:12 leads as standard
Sampling method:12 leads simultaneously
Measurement parameters:HF, PR interval, duration of QRS complex,
QT/QTC, electrical R/QRS/T axis, RV5/SVI amplitude
Acquisition mode:
Manual mode (Manual 1, Manual 2, Manual 3, Manual
6, Manual 12)
Rhythm mode
Automatic mode (3CH×4, 3CH×4+1R, 3CH×4+3R,
6CH×2, 6CH×2+1R, 12CH×1)
Standard sensitivity:10 mm/mV ±0.2 mm/mV
Polarisation voltage:± 300 mV
CMRR:>98 db
Recording device:
Recording method:thermal matrix printing
Resolution:
≥8 dots/mm (vertical)
≥ 32 dots/mm (25 mm/s), ≥16 dots/m (50 mm/s)
(horizontal)
Languages:German, English, Spanish, French, Italian,
Portuguese, Romanian, Turkish
Display:7-inch LCD colour screen, resolution: 800 x 480
Other:
Safety level:Class I, Type C
Power supply:
When the battery is fully charged, it usually enables
5 hours of operation and about 3 hours of continuous
continuous printing for about 3 hours
The charging time of the battery under normal use is
5 hours from a full discharge to a charge of 90
to a 90% charge
Dimensions:
310 x 244 x 65 mm
Weight approx. 2.1 kg
Standard accessories:
1x 10-wire lead cable
1x extremity electrodes
1x chest wall eye electrodes
1x paper
