Veraviewepocs 2D
High quality images for an accurate diagnosis
Extremely high image quality combined with minimal radiation exposure – this is what is offered by Morita’s Veraviewepocs 2D.
The various programs offer a whole range of functions, as for example orthoradial- panoramic projections, which reduce the effect of overlapping of directly adjacent teeth in X-ray images. The shadow reduction panoramic imaging also serves to minimize shadowing effects caused by the ascending mandibular arch and optimal patient positioning made possible with the innovative technology - AF Automatic Positioning.
*Fine or high speed mode
*High quality images
*Simple and comfortable patient’s positioning
*Versatile in mode and design
*The shared specifications between the two devices :
"Panoramic & Panoramic / Cephalometric "
-Product name:
Veraviewepocs 2D
-Model:
X550
-Input voltage:
EX-2:220 / 230 / 240 V 50 / 60 Hz
EX-1:120V 60 Hz
-Power consumption:
2.0 kVA
-Tube voltage:
60-80 kV
-Tube current:
1-10 mA
-Effective focal spot:
0.5 mm
-Exposure time:
Fine high-speed mode approx. 7.4 seconds
Super fine mode approx. 15 seconds
-Magnification ratio:
1.3/1.5/1.6
-Positioning:
Electrical motor and AF optical distance sensor
-Control box :
EX-2:W 70 x D 40 x H 115 mm (W 2-3/4" x D 1-1/2" x H 4-1/2")
EX-1:W 96 x D 40 x H 115 mm (W 3-3/4“ x D 1-1/2“ x H 4-1/2")
*Device specific features:
"Type"
-Panoramic: 2DA
-Panoramic / Cephalometric : 2DB
"Sensor"

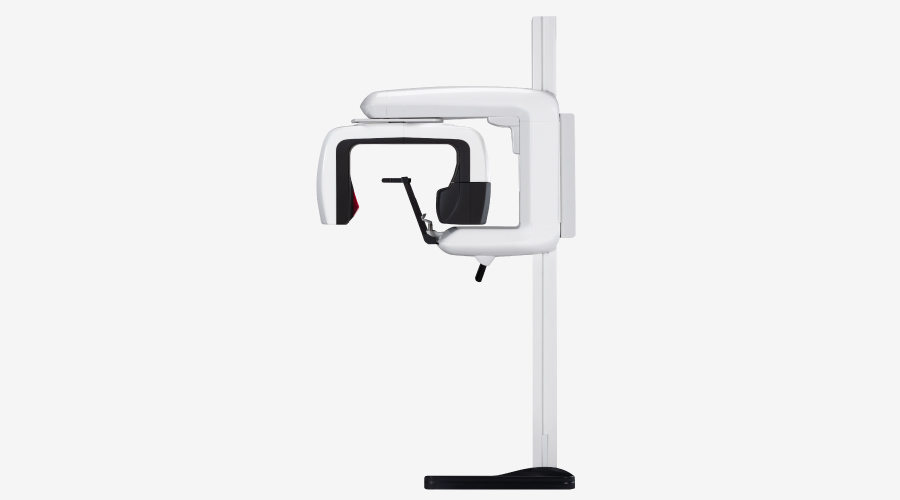

-Panoramic: Pan

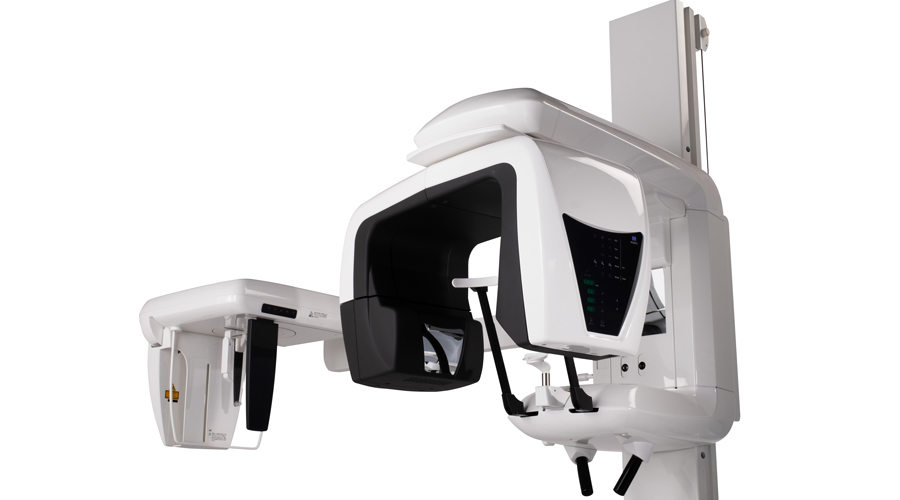

-Panoramic / Cephalometric : Pan/Ceph
"Imaging area"
-Panoramic: -
-Panoramic / Cephalometric : LA 225 x 254 mm, PA 225 x 203 mm
"Magnification ratio"
-Panoramic: -
-Panoramic / Cephalometric : 1.1
"Main unit"
-Panoramic:
W 1,020 x D 1,330 x H 2,355 mm
(W 40-1/8" x D 52-3/8" x H 92-3/4")
-Panoramic / Cephalometric
W 2,000 x D 1,330 x H 2,355 mm
(W 78-3/4" x D 52-3/8" x H 92-3/4")
"Installation area"
-Panoramic: 14.53 ft² (1.35m²)
-Panoramic / Cephalometric : 27.99 ft² (2.60 m²)
"Weight"
-Panoramic:
Approx. 418 lb. (190 kg)
-Panoramic / Cephalometric :
Approx. 568 lb. (258 kg)
