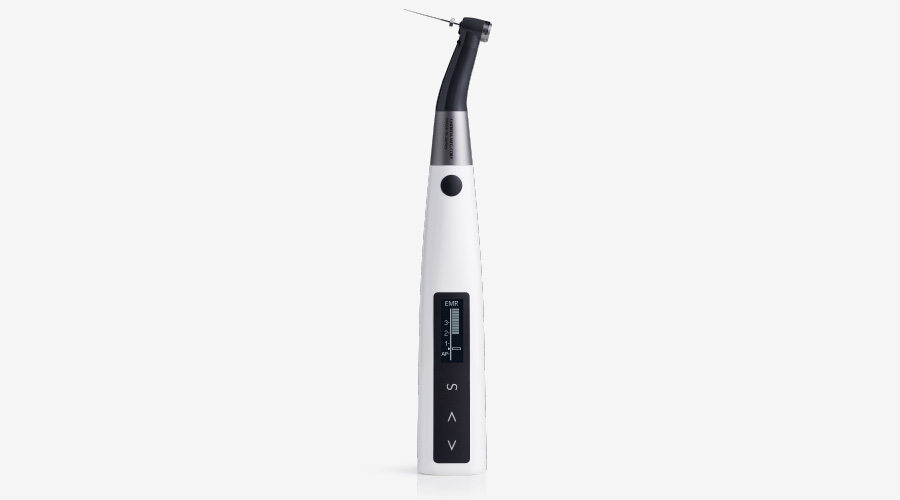

Tri Auto ZX2+
Cordless Endo Motor with Apex Locator
Beyond Ingenuity - Intelligent Endodontic Motor
Patency and Glide Path Have Never Been Easier
Tri Auto ZX2+ is equipped with a new generation reciprocating drive, OGP2, that greatly reduces the chance of a file breaking in the canal. This innovative motor can be used for patency, glide path, and shaping, allowing you to finish treatment safely and in less time. Additionally, with no limits on file size or cutting direction, your current file system is
compatible. The future of endodontic treatment is here. .. Tri Auto ZX2+.
*Next Level Reciprocation - Introducing OGP2
*OTR Mode Now Supports Both Reciprocation and Rotary Files
*World-leading apex location Built Right in
*Various Modes
"Specification"
-Name:
Tri Auto ZX2
-Model:
TR-ZX2
-Type:
PLUS
-Manufacturer:
J. MORITA MFG. CORP.
-Functions:
Apex location
OGP2 (Optimum Glide Path2)
OGP (Optimum Glide Path)
OTR (Optimum Torque Reverse)
OAS (Optimum Apical Stop)
OAS2 (Optimum Apical Stop2)
Auto Start / Stop, Auto Apical Reverse
Auto Apical Stop, Apical Slow Down
Torque Slow Down, Apical Torque Down
Auto Torque Reverse
-Accessories:
Tester, LS OIL
Power Plugs (one each of 4 types)
Probe Cord (0.8m)
File Holder, Contrary Electrodes
HP Protective Sleeve Type A
-Options:
Handpiece Holder, Long File Holder
External File Electrode (with cap)
Probe Cord (1.6m)

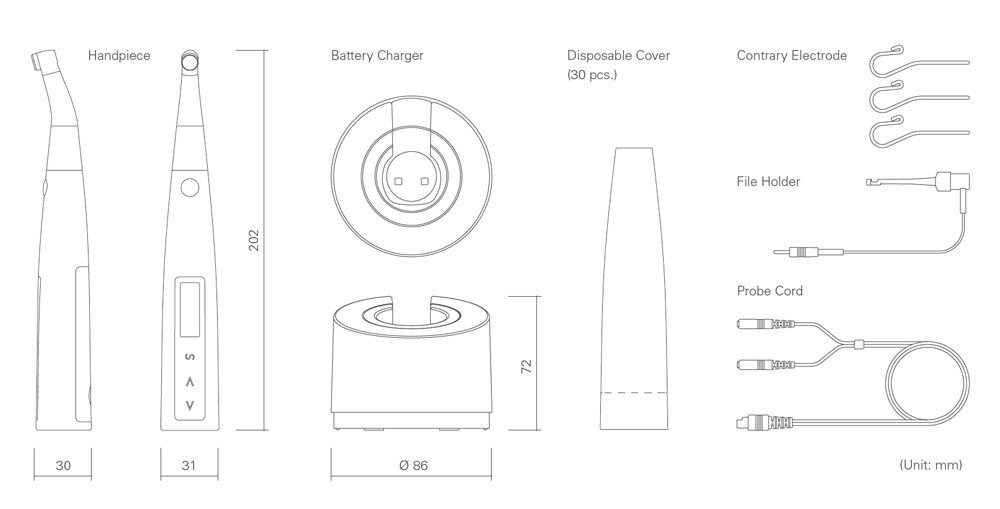

"Handpiece"
-Free Running Operation Speed:
100 - 1000 rpm
-Torque:
4 Ncm or more
-Battery:
Lithium-ion battery (DC 3.7 V)
-Weight:
Approx. 140 g (including battery
and contra angle)

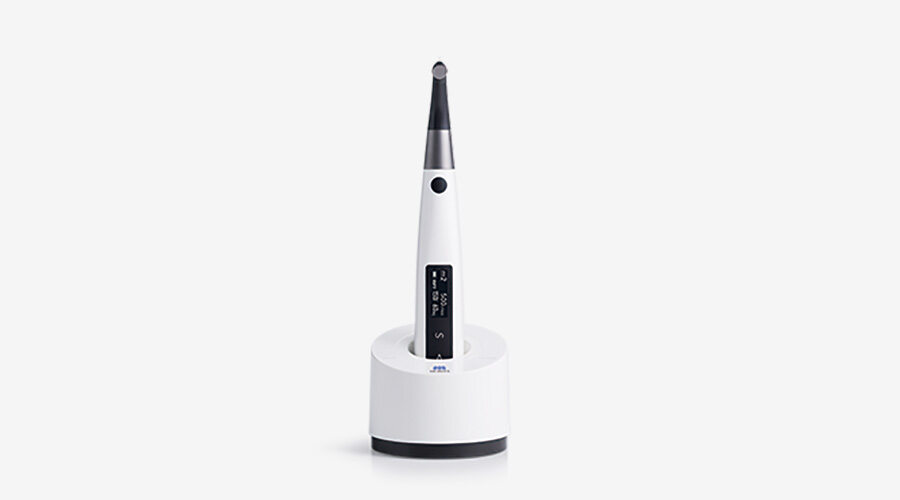

"Battery Charger"
-Rated Input Voltage:
DC 5 V
-Rated Input Current:
2.4 A
-Weight:
Approx. 280 g (AC adapter not included)
"AC Adapter"
-Rated Input Voltage:
AC100 - 240 V
-Rated Input Frequency:
47 - 63 Hz
-Rated Input Current:
0.4A
