Powerful & Stable output with unique features for user conveniences. ECORAY’s high frequency inverter technology is heading to more valuable, durable and powerful to produce the high quality of images with every imaging solution.

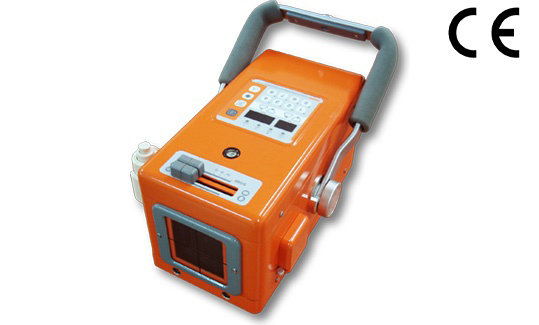

9020HF
Better choice for your Equine Examinations
· Efficient power with quality (1.35kW, 90kV/20mA output)
· Solid body with light weight
· One-hand collimator Control
· Durable design with reliable radiation output
Specification:
-Model : 9020HF
-Generator :High Frequency Inverter
-HF Generator Max. Output Power : 1.35kW (90kV@15mA)
-HF Generator Max. kV / mA : 90kV / 20mA
-X-ray Tube Focal Spot: 1.2mm x 1.2mm
Input Power:
100-120VAC, 60Hz
220-240VAC, 50Hz
-Collimator X-ray Field Size : Max. 27cm x 27cm @66cm SID
-Collimator Lamp : 12V / 50W, Halogen Lamp
-Collimator Dual Laser : 66cm SID, Class II
-Display :kV, mAs, X-Ray, Wait, and Error LED display
-Operation Switch :
1. kV & mAs Up/Down
2. Built in dual laser & Collimator lamp ON/OFF
3. Reversible Display
4. APR memory storage
-APR : 7 Memory Standard and extendable 12 Memory
-Weight : 7kgs
-Dimension (mm) : 270 x 150 x140
-Advantage : Light weight
