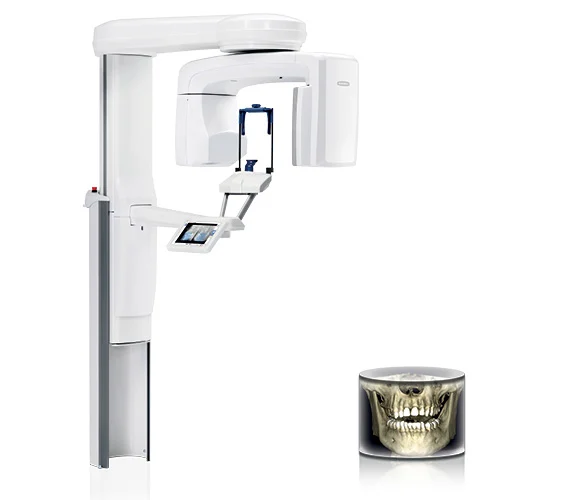

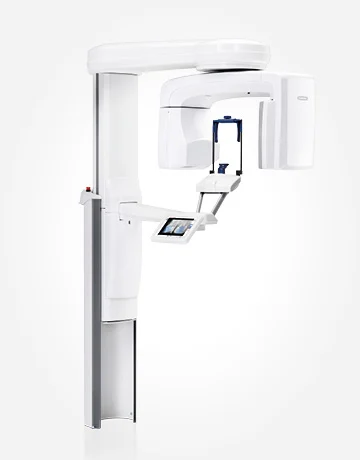

Planmeca Viso® G3 is a hypermodern and truly multifunctional 3D imaging device, offering both panoramic and CBCT capabilities for a broad range of extraoral imaging needs. With a maximum FOV of 20 x 10 cm, the 3D unit brings both industry-leading usability and visibility for various clinical purposes, including endodontic treatments and implant planning.
Technical data:-
Anode voltage 60–120 kV
Anode current 1–16 mA
Focal spot 0.5 mm, fixed anode
Image detector Flat panel
Image acquisition 200 / 360 degree rotation
Scan time 1–36 s
Typical reconstruction time 2–55 s
Physical space requirements:-
Width 155 cm (61 in.)
Depth 154 cm (60.6 in.),
Height* 160-234 cm (63-92 in.)
Weight 165 kg
With cephalostat:
Width 216 cm (85 in.)
Depth 154 cm (60.6 in.)
Height* 160-234 cm (63-92 in.)
Weight 165 kg + 20 kg (ceph)
*The maximum height of the unit can be adjusted for offices with limited ceiling space.
