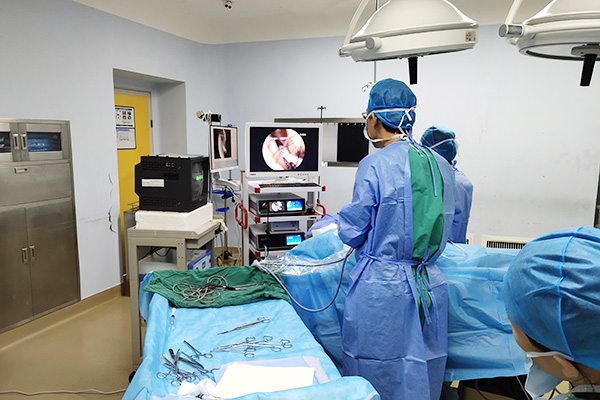

- SY-GW612 can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, TAPP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
- Brand: SHREK

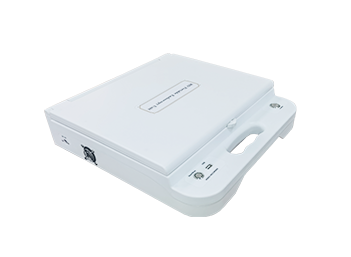

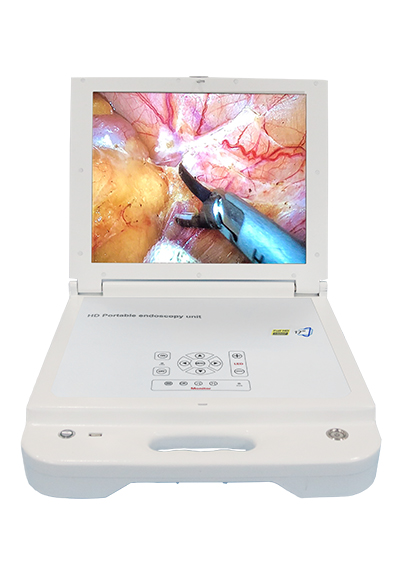

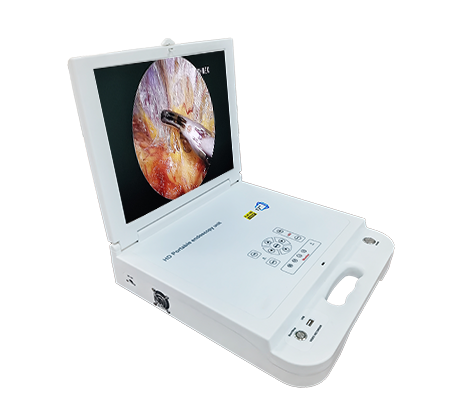

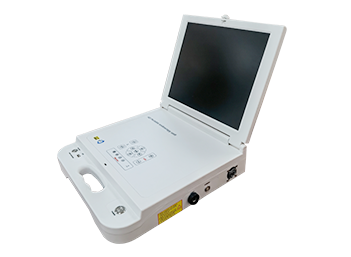

- Product Type: Portable Endoscope Camera
- Warranty: Five years
Description :
1. Set screws use stainless steel material, so screws wont rust off and cause electrical short which extends service life of machine.
2. Baseboard of inner circuit board uses simple brass and protection cover, which is effective protection to antijamming of circuit and ground connection.
Parameter :
- LCD scree : 17”
- Aspect ration : 5:4
- Medical Monitor : Endoscopy Camera
- Image sensor : 1/2.8 CMOS
- Brightnes : ODS adjustable
- Horizontal resolutio : 1000TVL
- Scanning frequenc : N:60HZ P:60HZ
- Scanning mode : Progressive scanning
- Surface temperature : ≤60℃
- Medical Monitor : LED Light Source
- Light source : LED light
- Input power : 80VA
- Color temperature : 6000±500K
- Working life : >40,000hs
- Medical Monitor : HD Video Recorder
- Recording format : MP4

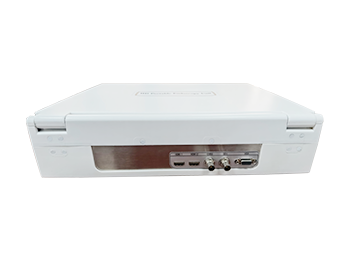

- Input signal : HDMI, CVBS
- Output signal : HDMI
