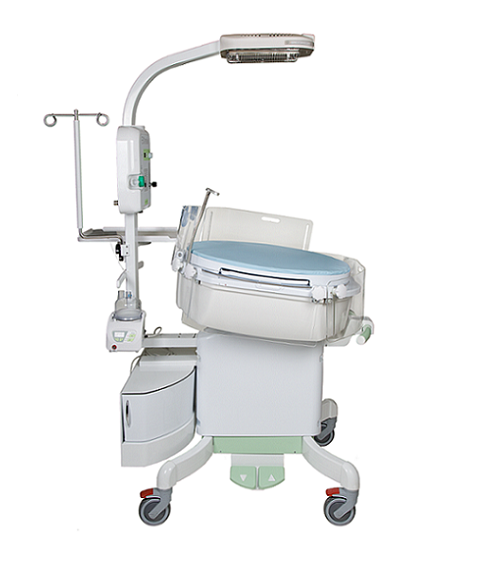

- The ORS-BONO system is intended for carrying out of resuscitation, treatment, and nursing of neonates, including premature infants, in maternity hospitals, pathology sections, intensive therapy, and resuscitation wards. Application of the system allows to decrease period of neonates treatment and nursing and reduce percentage of diseases and complications, connected with jaundice.
- ORS-BONO can be also applied as the main or additional heating source, for carrying out of breathing therapy without intubation and hyperbilirubinemia treatment.
Advantages :
- Pneumatic unit of respiratory support with two non-invasive operation modes - nCPAP & Resuscitation
- 2 modes of phototherapy intensity and heating power
- Patient bed is equipped with removable slot for X-ray cassette installation
- Adjustment of heater intensity by patient's skin
- Illumination of infant bed
- O2 concentration measurement in gas mixture, delivered to the patient, with oxygen sensor automatic calibration
- Infant bed rotation - 360°, adjustment of height and tilt
- Operation from built-in rechargeable battery
- Module APGAR-timer
Technical characteristics :
- Overall dimensions (with upper position of the pole), mm :
2130x1550x800
- Weight, kg :
115
- Maximum angle of infant bed inclination :
10˚
- Duration of breathing therapy modes operation from the built-in storage battery, min :
no less than 60
- Class of safety :
IIb
- Heating therapy :
- Modes of operation with heating :
- Mode of preliminary heating
- Manual mode
- Automatic mode
- Range of temperature adjustment in automatic mode with discreteness 0.1 ˚C, ˚C :
from 30 to 38
- Respiratory therapy :
- Modes of respiratory therapy operation :
RESUSCITATION
nCPAP
- Automatic calibration of oxygen sensor :
available
