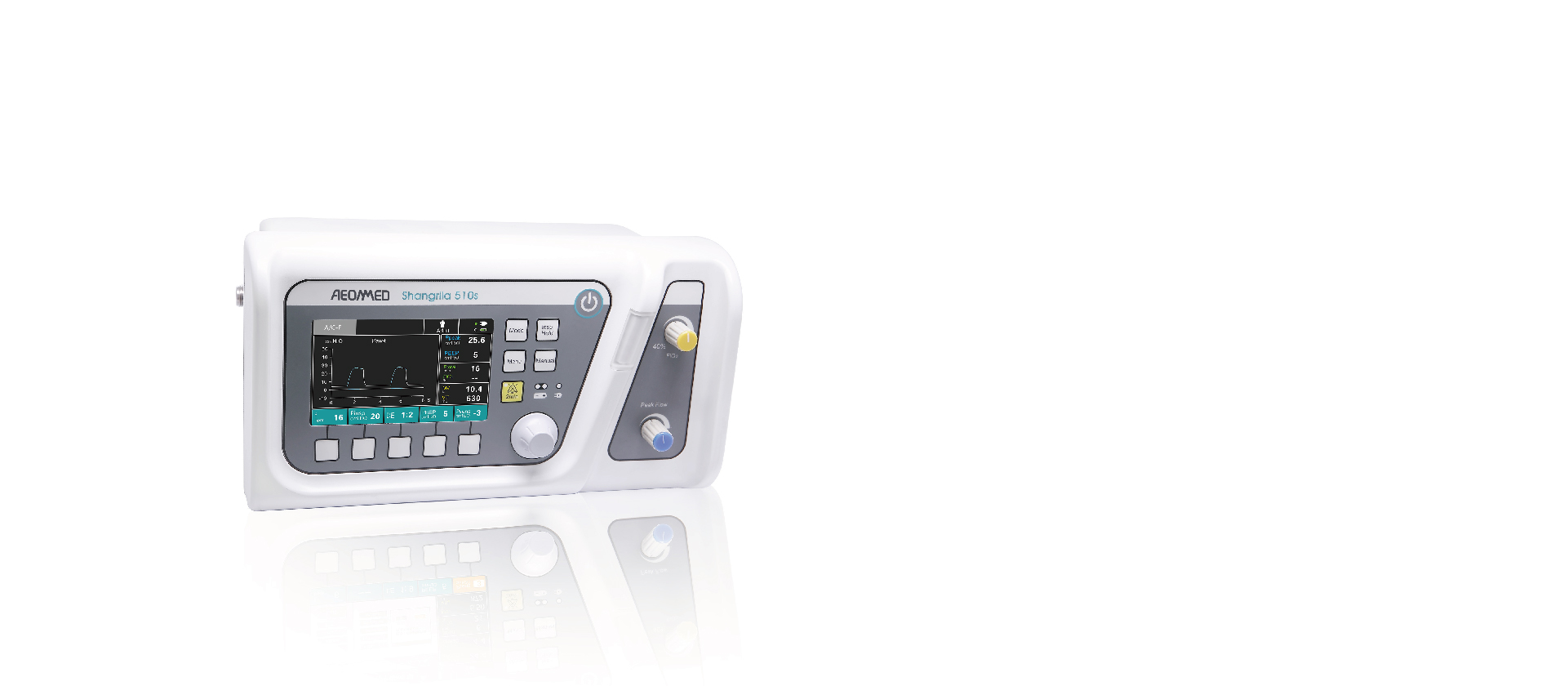

Shangrila 510S is a universally used model. Not only for emergency ventilation, but also it is suitable for ideal transport ventilation. The circumstances include on-site emergency treatment, pre-hospital transport, inter- hospital transport, and even intra-hospital transport.
Patient Type
Adult, Child, Infant (>3.5 kg)
Ventilation Modes
A/C-V with Sigh, SIMV-V ,SPONT/PSV, MANUAL, A/C-P, SIMV-P, CPAP
Enhancements
Apnea back-up ventilaton, manual breath, Alarm silence
Parameter setting
Tidal volume (Vt):- 0-2000 ml
Pinsp:- 5-50cmH2O
Psupp:- 0-50 cmH2O
CPAP (NIV):- 0-30 cmH2O
PEEP:- 0-30 cmH2O
Pressure trigger:- -20-0 cmH2O
Flow trigger:- 2-30 L/min
Frequency (f):- 1-120 bpm (A/C) 1-40 bpm (SIMV)
I:E ratio :- 4:1-1:10
Pause time (Tpause):- 0-5 s
O2 concentration:- 40-100 %
Inspiration flow:- Max. 90 L/min
Monitoring Data
MV, VT, Frequency (f), FiO2, Ppeak, PEEP
Waveform Display
P-T F-T
Alarm Setting
High MV :-OFF, 1-25 L
Low MV :-OFF, 0-24 L
High FiO2 :- OFF, 50-100 %
Low FiO2 :-OFF, 35-99 %
High Paw :-6-80 cmH₂O
Low Paw:- 0-40 cmH₂O
AC power failure:-Gas supply down
O2 deficiency:-MV high
Low battery:-No VT
Apnea:-CP high
Language
Chinese, English, Spanish, Italian, Turkish, Other languages
Electrical
AC voltage :-100-240 V, 50/60 Hz
DC voltage :-12 V
One battery run time:-Minimum 4.5 hours
Two batteries run time:-Minimum 10 hours
Gas Supply
Supply pressure (O2):- 250-600 kPa
Flow Max :- 180 L/min
Physical Specifications
Total Weight :-8 kg
Dimension (H*W*D):-168* 156 *300 mm
LCD screen :- 5" TFT
Communication Ports:-RS232
