Premium Panoramic Image Quality
Panoramic
Rapid Ceph :
-1.9 second acquisition time produces superb image quality
-Reduced motion artifacts and faster workflow
User friendly EzDent-i software :
-Powerful diagnostic value with Insight feature
-Complete solution for consultation
-Easy to learn, easy to use
THE ADVANCED IMAGING SOLUTION FOR ACCURATE
DENTAL DIAGNOSIS
The PaX-i Plus provides the most precise and high quality panoramic images by combining image processing and accumulated experience in dental imaging from Vatech.
This will increase your diagnostic accuracy for improved treatment planning and patient satisfaction.
MAKE YOUR DIAGNOSIS EASY AND EFFICIENT WITH VARIOUS CAPTURE MODES
-Bitewing Mode
-TMJ Mode
SELECTION PANO EXAMINATION
ARCH:Narrow / Normal Wide / Child
EXAMINATION MODE:Standard / Right / Front / Left
ARCH:Orthogonal
EXAMINATION MODE
Orthogonal Standard / Right / Front / Left Bitewing Standard / Right / Front / Left
SELECTION SPECIAL EXAMINATION
ARCH:Normal
EXAMINATION MODE:
TMJ PA Open / Close
Sinus LAT / PA

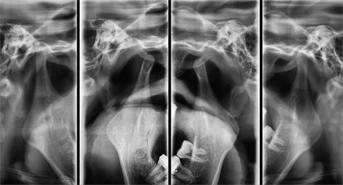

MINIMIZE MOTION ARTIFACTS WITH RAPID CEPH TECHNOLOGY
The next step in cephalometric technology, Vatech's new Rapid Ceph minimizes motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images.
GREAT CLINICAL CARE WITH RAPID CEPH TECHNOLOGY
PRODUCT CONFIGURATION
PaX-i Plus NP PANO● CEPH-
PaX-i Plus NC PANO ● CEPH●
SPECIFICATIONS (PaX-i Plus:PCH-30CS)
-Scan Time
Pano:Normal 10.4 sec / HD 14 sec
Ceph:1.9 sec / 3.9 sec
Weight With Ceph unit
120kg (264.5 lbs. - without Base)
-Focal Spot
0.5mm (IEC60336)
Tube Voltage / Current 60~90 kV / 4-10 mA
Weight With Ceph unit
160kg (352.7lbs. - with Base)
-Gray Scale
14 bit
Dimensions
With Ceph unit
1930mm(L) x 1200mm(W) x 2300mm(H)
